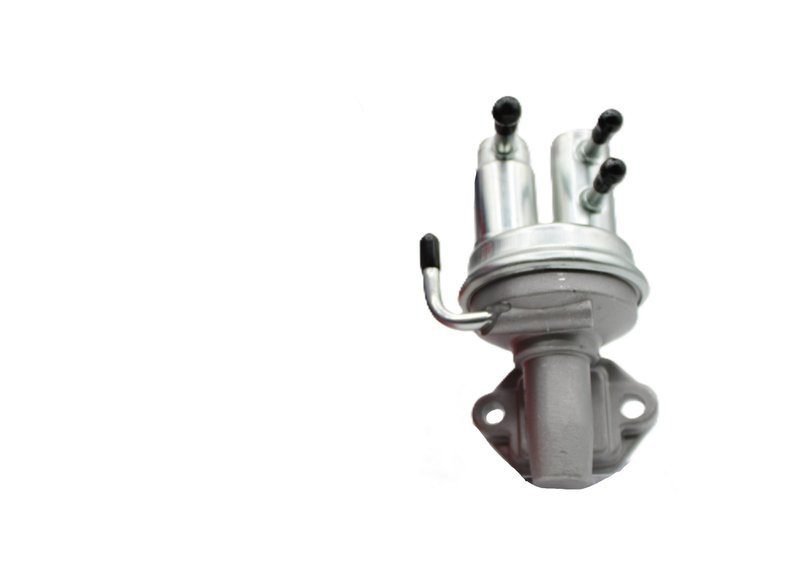

Autobest F9764M Mechanical Fuel Pump
| Brand | Autobest F9764M |
|---|---|
| Average Flow Rating(GPH) | 25 |
| Country of Orign | China |
| Gasket or Seal Included | Yes |
| Inlet Size | 0.315 |
| Inlet Type | Hose bead |
| Life Cycle Status Code | Available to order |
| Maximum Pump Pressure (PSI) | 5 |
| Minimum Pump Pressure (PSI) | 3.5 |
| Outlet Size | 1/8-27 npsf |
| Outlet Type | Threaded |
| Package Contents | Pump |
| Product Height (in) | 5.63 |
| Product Length (in) | 3.22 |
| Product Width (in) | 3.46 |
| Pump Type | Mechanical |
| Short Description | Mechanical fuel pump |
| UPC | 00072845197641 |
| Warranty | Limited lifetime warranty |
| Weight (lbs) | 0.68 |
| Product line | Mechanical Fuel Pump |
| Fits | Dodge, Hyundai, and Plymouth · 20 vehicles |
Precision-cast design. Built to meet or exceed OEM specifications for mechanical fuel delivery service.
Threaded outlet. 1/8-27 NPSF outlet with hose-bead inlet for a secure fuel line connection.
Limited lifetime warranty. Backed by Autobest for added confidence in long-term service.
Cross-references Hygrade Tuneup 1613, OSC 1486 and Wix 42960 for the same application. See all 8.
Mechanical fuel pump overview
Autobest F9764M is a mechanical fuel pump built as a precision-cast replacement for fuel delivery systems that use a mechanical pump. It is specified for compatible Dodge Colt, Plymouth Colt, Dodge Ram 50, and Hyundai Excel applications, with fitment listed for 1984-1990 model years.
This pump uses a hose-bead inlet and a threaded 1/8-27 NPSF outlet, with a 3.5 to 5 PSI operating range and a 25 GPH average flow rating. The included gasket or seal supports a complete service replacement, and the compact housing measures 5.63 inches high, 3.22 inches long, and 3.46 inches wide.
Key features
- Mechanical fuel pump for fuel delivery service on compatible carbureted applications.
- Precision-cast construction built to meet or exceed OEM specifications.
- Hose-bead inlet and threaded outlet for straightforward fuel line connection.
- 3.5 to 5 PSI pressure range with 25 GPH average flow rating.
- Gasket or seal included for installation sealing.
- Autobest F9764M fuel pump for select Dodge, Plymouth, and Hyundai applications.
Detailed fitment and application
Fits 1985-1988 Dodge Colt, N/A. Fits 1990 Dodge Colt, N/A. Fits 1985-1988 Plymouth Colt, N/A. Fits 1990 Plymouth Colt, N/A. Fits 1984-1989 Dodge Ram 50, N/A. Fits 1986-1989 Hyundai Excel, N/A. Autobest F9764M is a direct mechanical fuel pump replacement for these listed applications, and the part number F9764M should be matched to the vehicle’s fuel system requirements before installation.
Common replacement reasons
- Hard starting caused by weak fuel delivery.
- Fuel starvation under load or at higher engine demand.
- Low fuel pressure that affects carburetor operation.
- Fuel leaks at the pump body or sealing surface.
- Erratic engine operation related to inconsistent pump output.
Installation notes and quality assurance
Confirm inlet and outlet style, pressure range, and fitment before installation. Mechanical fuel pumps must be matched to the vehicle’s fuel system layout and mounting requirements, and the part number F9764M should be verified against the application catalog. Autobest states that its mechanical pumps are precision-cast and engineered to meet or exceed OEM specifications. This part includes a limited lifetime warranty.
| Year | Make | Model | Liters | Cylinders | Notes |
|---|---|---|---|---|---|
| 1990 | Dodge | Colt | 1.5L | L4 | Mechanical Fuel Pump |
| 1990 | Plymouth | Colt | 1.5L | L4 | Mechanical Fuel Pump |
| 1989 | Dodge | Ram 50 | 2.0L | L4 | Mechanical Fuel Pump |
| 1989 | Hyundai | Excel | 1.5L | L4 | Mechanical Fuel Pump |
| 1988 | Dodge | Colt | 1.5L | L4 | Mechanical Fuel Pump |
| 1988 | Dodge | Ram 50 | 2.0L | L4 | Mechanical Fuel Pump |
| 1988 | Hyundai | Excel | 1.5L | L4 | Mechanical Fuel Pump |
| 1988 | Plymouth | Colt | 1.5L | L4 | Mechanical Fuel Pump |
| 1987 | Dodge | Colt | 1.5L | L4 | Mechanical Fuel Pump |
| 1987 | Dodge | Ram 50 | 2.0L | L4 | Mechanical Fuel Pump |
| 1987 | Hyundai | Excel | 1.5L | L4 | Mechanical Fuel Pump |
| 1987 | Plymouth | Colt | 1.5L | L4 | Mechanical Fuel Pump |
| 1986 | Dodge | Colt | 1.5L | L4 | Mechanical Fuel Pump |
| 1986 | Dodge | Ram 50 | 2.0L | L4 | Mechanical Fuel Pump |
| 1986 | Hyundai | Excel | 1.5L | L4 | Mechanical Fuel Pump |
| 1986 | Plymouth | Colt | 1.5L | L4 | Mechanical Fuel Pump |
| 1985 | Dodge | Colt | 1.5L | L4 | Mechanical Fuel Pump |
| 1985 | Dodge | Ram 50 | 2.0L | L4 | Mechanical Fuel Pump |
| 1985 | Plymouth | Colt | 1.5L | L4 | Mechanical Fuel Pump |
| 1984 | Dodge | Ram 50 | 2.0L | L4 | Mechanical Fuel Pump |
