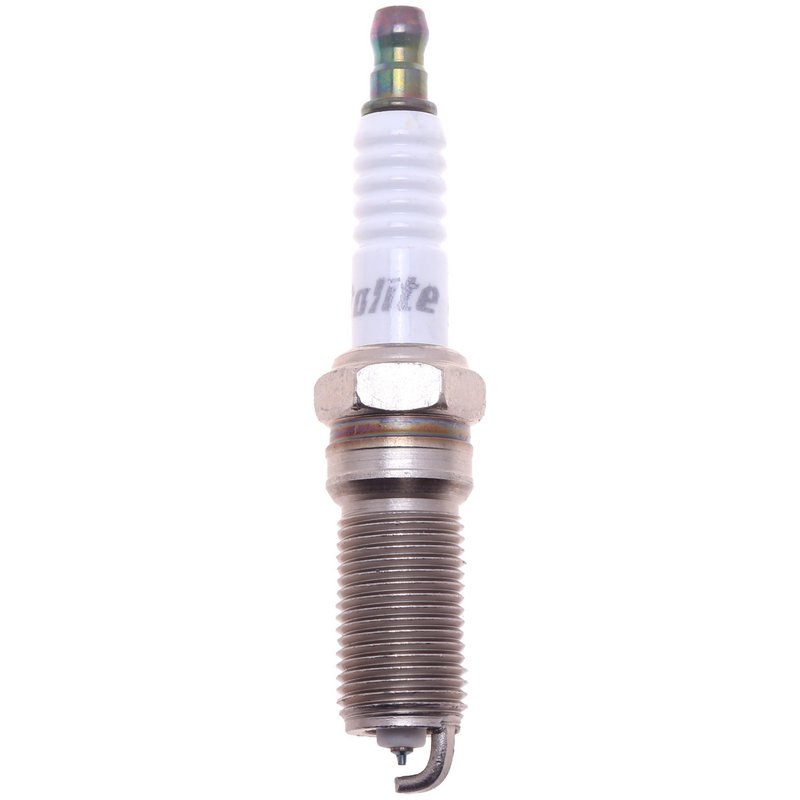

Autolite XP5363 Spark Plug

Autolite Iridium Spark Plug XP5363 Overview

The Autolite Iridium Spark Plug XP5363 is engineered for reliable ignition performance in select Buick, Ford, and Lincoln vehicles. Designed with advanced materials and precision construction, this spark plug supports efficient combustion and consistent engine operation.

• Iridium center electrode tip for enhanced durability and ignition
• Taper cut ground electrode tip with platinum material for improved spark efficiency
• Copper core center electrode for optimal conductivity
• Non-removable nut electrical terminal type for secure connection
• Metric thread size M14 x 1.25 with a 5/8 inch hex size
• Ceramic insulator with 2.058 inch (52.3 mm) height for heat resistance
• Performance grade type with manufacturer heat range 11
• Resistor type spark plug with 4000 ohm resistance to reduce electrical noise
• Single ground electrode made of nickel core with platinum tip
• Tapered seat type and mid projection design for proper fit and combustion

Iridium Spark Plug Product Line Details

The Autolite Iridium Spark Plug line focuses on delivering long-lasting ignition components that maintain stable performance under demanding conditions. The XP5363 model incorporates fine wire center electrode design and premium materials like iridium and platinum to ensure consistent spark delivery and resistance to electrode wear. This product line is suited for drivers seeking reliable secondary ignition parts that meet or exceed OEM specifications.

Technical Description and Features

The XP5363 spark plug features a fine wire iridium center electrode that provides a strong and stable spark while minimizing voltage requirements. The copper core enhances thermal conductivity, helping to dissipate heat effectively. The ground electrode uses a taper cut design with a platinum tip, which improves spark exposure and durability. The ceramic insulator resists heat and electrical stress, while the resistor built into the plug reduces electromagnetic interference that can affect vehicle electronics. The spark plug’s metric thread size (M14 x 1.25) and tapered seat ensure a secure fit in compatible engines.

Compatible Vehicles and Applications

• Buick Envision
• Ford C-Max, EcoSport, Edge, Escape, Explorer, Fiesta, Flex, Focus, Fusion, Mustang, Transit-150, Transit-250, Transit-350, Transit-350 HD, Transit Connect
• Ford F-150, F-250 Super Duty, F-350 Super Duty
• Lincoln Continental, Corsair, MKS, MKT, MKX, MKZ, SSV Plug-In Hybrid

This spark plug is designed for use in secondary ignition systems of these vehicles, supporting efficient combustion and engine performance.

Common Issues Addressed by XP5363 Spark Plug

• Misfires and rough idling due to worn or fouled spark plugs
• Reduced fuel efficiency from incomplete combustion
• Difficulty starting the engine in cold or damp conditions
• Engine hesitation or loss of power under load
• Electrical interference affecting onboard electronics

Installation Notes and Tips

Ensure the engine is cool before removing old spark plugs. Use a torque wrench to tighten the XP5363 spark plug to the manufacturer’s recommended specifications to avoid damage. The non-removable nut terminal requires proper connection to the ignition wire boot. Inspect the spark plug hole for debris before installation. The tapered seat and mid projection design require correct seating for optimal performance.

Quality Assurance and Warranty

Autolite manufactures the XP5363 spark plug to meet strict quality standards, using premium materials such as iridium and platinum for durability. The resistor design helps protect vehicle electronics from interference. While specific warranty details are not provided here, Autolite products typically come with manufacturer-backed quality assurance to ensure reliable operation in compatible Buick, Ford, and Lincoln models.
