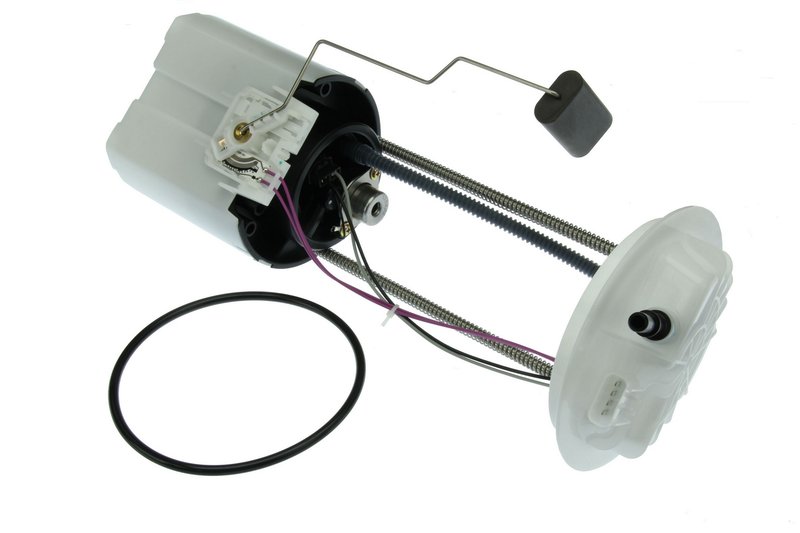

Autotecnica CY0517550 Fuel Pump Module Assembly

Fuel Pump Module Assembly for Ram 2500/3500

Autotecnica CY0517550 is an electrical fuel pump module assembly built for direct replacement in select Ram heavy-duty trucks. It is engineered for consistent fuel delivery and uses 0.25 in. hose clamp inlet and outlet connections for straightforward service replacement.

Compatible With 2011-2019 Ram 2500 and 2014-2020 Ram 3500 with a single fuel tank, this fuel pump module assembly supports the fuel system on Ram 2500 and Ram 3500 applications that require OE-style fitment. The CY0517550 part number is also a useful reference when cross-checking replacement options for the same application.

Key Features

• Electrical fuel pump module assembly
• Flow rate: 42.27 gph
• Flow restriction pressure: 50 psi
• 0.25 in. inlet and outlet diameters
• Hose clamp inlet and outlet fittings
• No gasket or seal included
• Direct replacement for select Ram fuel tank applications

Detailed Description

Autotecnica CY0517550 is designed as a replacement fuel pump module assembly for Ram 2500 and Ram 3500 trucks with a single fuel tank. The electrical design, 42.27 gph flow rate, and 50 psi flow restriction pressure support stable fuel delivery for the listed applications. With hose clamp-style inlet and outlet connections, this module is suited to service work where the original fuel pump assembly has failed or fuel delivery performance has declined. This part cross-references Delphi FG1432 for the same application.

What It Helps Fix

• Hard starting caused by weak fuel delivery
• Engine stalling from inconsistent fuel pressure
• Loss of power under load
• Fuel pump noise or pump failure
• Fuel starvation in Ram 2500 and Ram 3500 single-tank setups

Installation Notes and Tips

Verify vehicle fuel tank configuration before ordering; this part is listed for Ram 2500 and Ram 3500 models with a single fuel tank. Confirm inlet and outlet hose size, electrical connector condition, and tank sealing surfaces during installation. Because no gasket or seal is included, reuse or replacement of sealing components should be planned separately as needed.

Quality Assurance

Autotecnica manufactures aftermarket parts to ISO/TS 16949 QMS specifications and backs this product line with a two-year, unlimited mileage warranty. CY0517550 is a practical OE-style replacement for technicians and DIY owners servicing Ram fuel system repairs.
