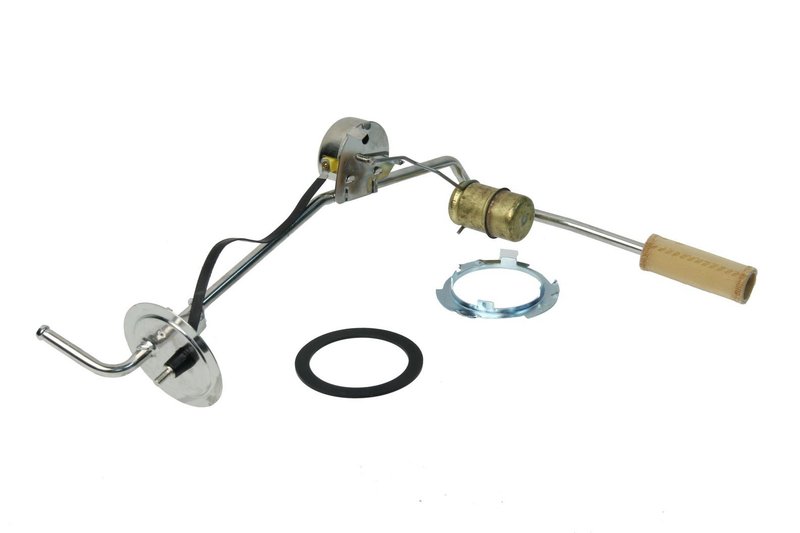

Autotecnica DG0514061 Fuel Tank Sending Unit

Overview of Autotecnica Fuel Tank Sending Unit DG0514061

The Autotecnica Fuel Tank Sending Unit DG0514061 is designed specifically for Dodge Challenger models, providing accurate fuel level readings and reliable performance. This fuel tank sending unit features an adjustable float level and includes a strainer to ensure clean fuel delivery.

• Compatible with Dodge Challenger vehicles
• Adjustable float level for precise fuel measurement
• Includes strainer to filter fuel contaminants
• Single outlet with 0.3125 inch diameter and butt flare attachment
• Pin-type terminal with one terminal and male connector
• Lock ring included for secure installation
• Resistance range from 10 ohms (empty) to 80 ohms (full)

Detailed Product Description

The Autotecnica DG0514061 fuel tank sending unit is engineered to deliver accurate fuel level data to the vehicle’s gauge system. It features a single outlet with a 0.3125 inch outside diameter and a butt flare attachment type, ensuring a secure and leak-free connection. The unit uses a pin-type terminal with one terminal and a male connector, compatible with the Dodge Challenger’s electrical system. The adjustable float level allows for fine-tuning to match specific tank configurations, improving fuel level accuracy. Additionally, the included strainer helps prevent debris from entering the fuel system, protecting the fuel pump and engine components. The lock ring included with this unit ensures a tight and reliable fit within the fuel tank assembly.

Common Applications and Problem Resolution

• Replacing faulty or inaccurate fuel level sensors in Dodge Challenger vehicles
• Resolving erratic or fluctuating fuel gauge readings
• Preventing fuel contamination with the integrated strainer
• Upgrading to a sending unit with adjustable float for better calibration
• Ensuring secure fuel line connections with butt flare outlet and lock ring

Installation Notes and Tips

When installing the Autotecnica DG0514061 fuel tank sending unit, ensure the lock ring is properly seated to avoid fuel leaks. The adjustable float level should be calibrated according to the specific fuel tank dimensions of the Dodge Challenger. Use appropriate tools to connect the butt flare outlet securely and verify the pin terminal connection is tight. Note that this unit does not include a fuel pump or wiring harness, so those components must be sourced separately if needed.

Quality Assurance and Warranty

Autotecnica manufactures the DG0514061 fuel tank sending unit to meet OEM specifications for Dodge Challenger vehicles. The unit undergoes quality control testing to ensure accurate resistance values ranging from 10 ohms when empty to 80 ohms when full, supporting reliable fuel gauge operation. While specific warranty details are not provided, Autotecnica products typically adhere to industry standards for durability and performance.
