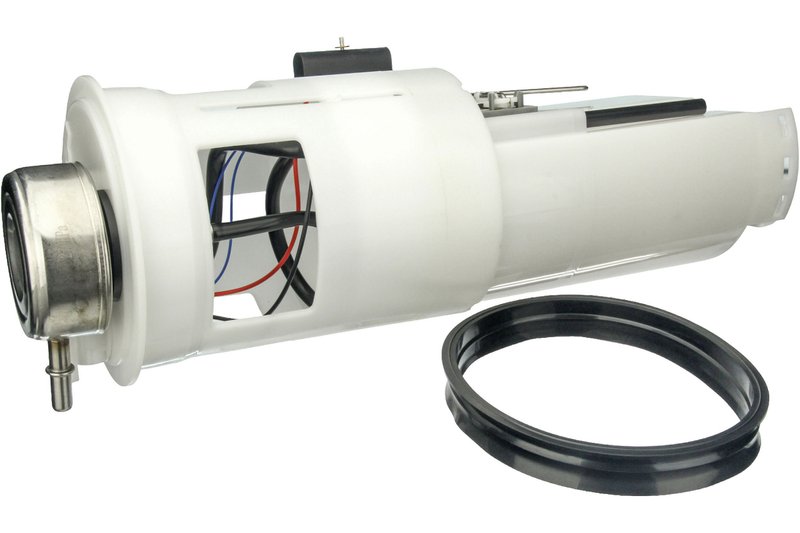

Autotecnica DG0517290 Fuel Pump Module Assembly
Fuel Pump Module Assembly for Ram 1500
Autotecnica DG0517290 is an electrical fuel pump module assembly built for direct replacement service on select 1994 Dodge Ram trucks with a 35 gallon tank. It is a fitment-based solution for Ram 1500, Ram 2500, and Ram 3500 applications that need OE-style fuel delivery and sender performance.
- Electrical fuel pump module assembly
- Direct inlet and outlet fitting design
- Rectangular female connector with male blade terminals
- Housing material: POM
- Gasket or seal included
- Flow rate: 34.3 gph at 35 psi
- Fuel level sender resistance: 103.7 ohms empty, 4.6 ohms full
- Amperage rating: 8.24 A
Detailed Product Overview
Autotecnica DG0517290 is engineered as a replacement fuel pump module assembly for 1994 Dodge Ram 1500, 1994 Dodge Ram 2500 Sweptline Box Light Duty with a 35 gallon tank, and 1994 Dodge Ram 3500 Sweptline Box Light Duty with a 35 gallon tank. The module combines electrical fuel delivery with sender specifications that match the listed resistance values, helping maintain accurate fuel gauge operation while supporting consistent fuel flow. This part number, DG0517290, is also cross-referenced to Carter P74673M for the same application.
What This Part Helps Address
- Hard starting caused by weak fuel delivery
- Engine hesitation from insufficient fuel flow
- Fuel gauge readings that do not match tank level
- Intermittent pump operation from worn electrical components
- Replacement needs on aging Ram 1500, Ram 2500, and Ram 3500 fuel systems
Installation Notes and Tips
Verify tank size, connector style, and fitment before installation. This module uses a rectangular female connector, male blade terminals, and direct inlet and outlet fittings, so matching the original configuration is important for proper installation. Confirm the vehicle is one of the listed 1994 Dodge Ram applications with a 35 gallon tank before ordering DG0517290.
Quality Assurance
Autotecnica manufactures aftermarket parts under ISO/TS 16949 QMS specifications and backs this fuel pump module assembly with a two-year, unlimited mileage warranty. It is positioned as an OE-spec replacement option for DIY repairs and professional service work on Dodge Ram fuel systems.
| Brand | Autotecnica |
|---|---|
| Part Number | DG0517290 |
| Terminal Type | Blade |
| Connector Shape | Rectangular |
| Connector Gender | Female |
| Terminal Gender | Male |
| Resistance Ohms Empty | 103.7 |
| Resistance Ohms Full | 4.6 |
| Amperage (A) | 8.24 |
| Electric Or Mechanical | Electrical |
| Flow Rate (gph) | 34.3 |
| Flow Restriction Pressure (psi) | 35 |
| Gasket Or Seal Included | Yes |
| Housing Material | Pom |
| Inlet Diameter (In) | 0.37 |
| Inlet Fitting Type | Direct |
| Outlet Fitting Type | Direct |
This part fits 3 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 1994 | Dodge | Ram 1500 | 5.2L | V8 | N/A | 35 Gallon Tank |
| 1994 | Dodge | Ram 2500 | 5.9L | V8 | N/A | Sweptline Box; Light Duty; 35 Gallon Tank |
| 1994 | Dodge | Ram 3500 | 5.9L | V8 | N/A | Sweptline Box; Light Duty; 35 Gallon Tank |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
