AutotecnicaPart #: FD0517230

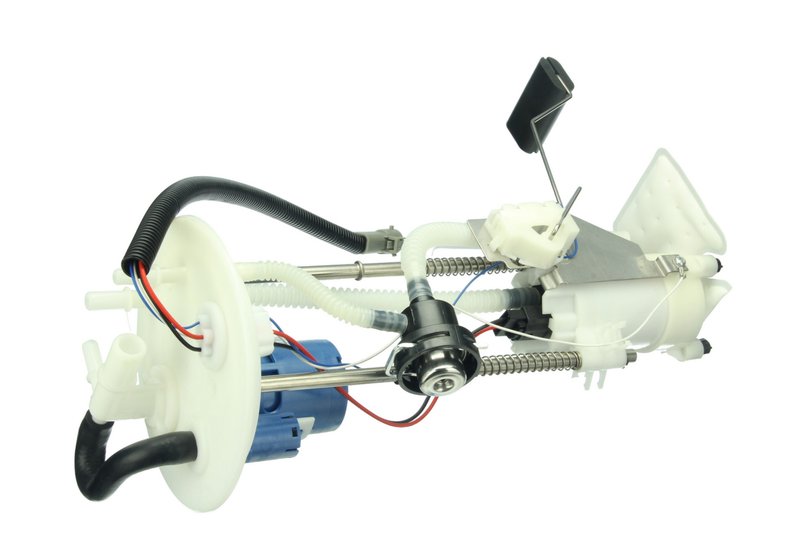

Autotecnica FD0517230 Fuel Pump Module Assembly
⚙️ 12 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$100.67Free Shipping
🚚Free ShippingNo Cost to Continental U.S.
🔄Free Returns*Wrong fit? No cost
🛡️60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
🔥
✅ In Stock · Ready To Ship
Most orders ship same-day if ordered before 1pm CST.
✅OE Direct Replacement — Bolt-on fit, no modifications needed
🚗Fitment: Ford and Mazda, B2300, B3000, B4000, and Ranger
🔄Easy Returns — Return within 60 days for a full refund
🚚Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? Click here for all Fuel Pump Module Assembly options
Autotecnica FD0517230 Fuel Pump Module Assembly
| Brand | Autotecnica |
| Part Number | FD0517230 |
| Connector Color | Grey |
| Connector Shape | Oe |
| Housing Material | Pom |
| Resistance Ohms Empty | 15.3 o |
| Resistance Ohms Full | 160 o |
| Gasket Or Seal Material | Nbr |
| Average Current Draw | 4.4 amps |
| Electric Or Mechanical | Electrical |
| Flow Rate (gph) | 50.19 |
| Flow Restriction Pressure (psi) | 50 |
| Gasket Or Seal Included | Yes |
| Housing Material | Pom |
| Inlet Diameter (In) | 0.374 |
| Inlet Fitting Type | Direct |
| Outlet Diameter (In) | 0.311 |
| Outlet Fitting Type | Direct |
This part fits 12 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Fuel Type | Wheel Base | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2003 | Ford | Ranger | 3.0L | V6 | GAS | 126.0" | N/A | Electric; Flow Restriction Pressure: 50 psi |
| 2003 | Mazda | B2300 | N/A | Electric; Flow Restriction Pressure: 50 psi | ||||
| 2003 | Mazda | B3000 | 3.0L | V6 | GAS | N/A | Electric; Flow Restriction Pressure: 50 psi | |
| 2003 | Mazda | B4000 | N/A | Electric; Flow Restriction Pressure: 50 psi | ||||
| 2002 | Ford | Ranger | 4.0L | V6 | 112.0" | N/A | Electric; Flow Restriction Pressure: 50 psi | |
| 2002 | Mazda | B2300 | N/A | Electric; Flow Restriction Pressure: 50 psi | ||||
| 2002 | Mazda | B3000 | 3.0L | V6 | GAS | N/A | Electric; Flow Restriction Pressure: 50 psi | |
| 2002 | Mazda | B4000 | N/A | Electric; Flow Restriction Pressure: 50 psi | ||||
| 2001 | Ford | Ranger | 4.0L | V6 | 112.0" | N/A | Electric; Flow Restriction Pressure: 50 psi | |
| 2001 | Mazda | B2300 | N/A | Electric; Flow Restriction Pressure: 50 psi | ||||
| 2001 | Mazda | B3000 | 3.0L | V6 | GAS | N/A | Electric; Flow Restriction Pressure: 50 psi | |
| 2001 | Mazda | B4000 | N/A | Electric; Flow Restriction Pressure: 50 psi |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
150085-A1F20-13-3501F20-13-350B1F20-13-350C1F20-13-350D1F20-13-350E1L5Z-9H307-FA1L5Z-9H307-FE1L5Z-9H307-FF3L5Z-9H307-FC3L5Z-9H307-FD525-2160E2293MFD0517230FG0873P74992MSP2293M
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
