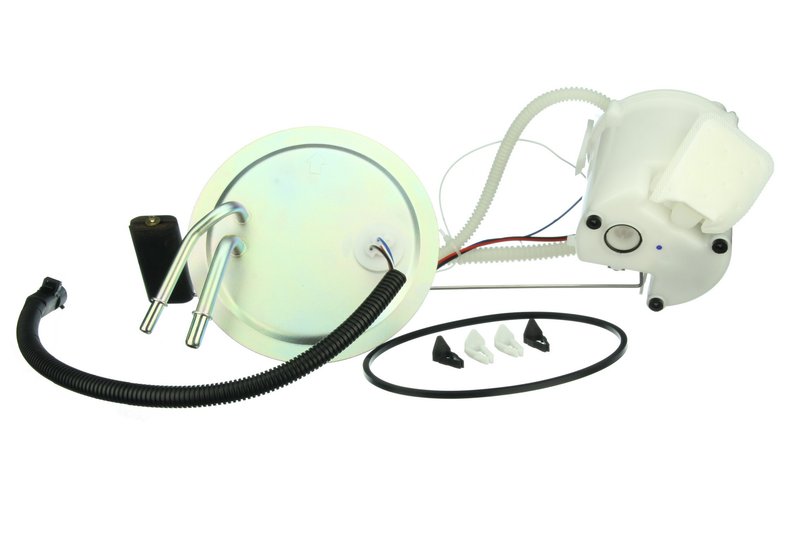

Autotecnica FD0517378 Fuel Pump and Sender Assembly

Fuel Pump and Sender Assembly for Ford Super Duty

Autotecnica FD0517378 is an in-tank electric fuel pump and sender assembly built for specific Ford truck applications. It combines fuel delivery and level-sending functions in one OE-style replacement unit for 1999-2005 Ford F-250 Super Duty, F-350 Super Duty, and 2000-2005 Ford Excursion models.

Key Features

• Specific-fit fuel pump and sender assembly for targeted Ford applications
• In-tank electric pump design with a 6.6 amp average current draw
• Integrated fuel pressure regulator included
• Fuel filter and strainer included
• Black connector with 4-wire, 4-terminal electrical connection
• Barbed inlet and outlet fittings for secure fuel line attachment
• HNBR gasket or seal included for sealing at the tank module
• Flow rate of 21 gph with 50 psi flow restriction pressure

Detailed Description

Autotecnica FD0517378 is engineered as a direct replacement fuel pump and sender assembly for Ford Excursion and Ford Super Duty trucks. It is designed for in-tank installation and uses an electrical pump design with specific connector shape, 4-wire configuration, and barbed inlet and outlet fittings. The assembly includes a fuel pressure regulator, fuel filter, strainer, and HNBR seal to support proper fuel delivery and tank sealing. This part cross-references Airtex E2245M and Carter P75036M for the same application. Autotecnica manufactures aftermarket components to ISO/TS 16949 QMS specifications, making FD0517378 a practical replacement choice for technicians and DIY owners servicing Ford F-250 Super Duty, F-350 Super Duty, and Excursion fuel system repairs.

Common Repair Uses

• Hard starting caused by weak or failing fuel pump output
• Fuel pressure loss under load in Ford Super Duty and Excursion trucks
• Inaccurate fuel level readings from a worn sender assembly
• Fuel delivery interruptions from a clogged internal filter or strainer
• Fuel system service when the original in-tank module is no longer reliable

Installation Notes and Tips

Verify vehicle year, model, and fuel system configuration before ordering. This assembly is a specific-fit in-tank unit and uses barbed inlet and outlet connections, so confirm line routing and connector style against the original module. Mounting hardware and lock ring are not included. Replace the tank seal surface as needed and inspect the fuel lines, electrical connector, and tank condition during installation. For best results, compare the original module to Autotecnica FD0517378 before removal.

Quality Assurance

Autotecnica builds aftermarket replacement parts to ISO/TS 16949 QMS specifications and backs this product line with a two-year, unlimited mileage warranty. FD0517378 is a solid OE-style option for Ford F-250 Super Duty, F-350 Super Duty, and Excursion fuel system service.
