AutotecnicaPart #: FD0519544

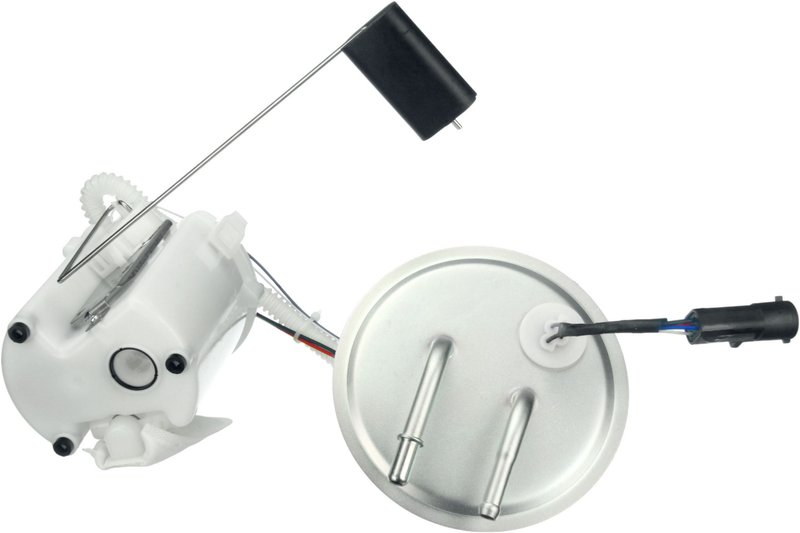

Autotecnica FD0519544 Fuel Pump Module Assembly
⚙️ 6 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$114.68Free Shipping
🚚Free ShippingNo Cost to Continental U.S.
🔄Free Returns*Wrong fit? No cost
🛡️60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
🔥
✅ In Stock · Ready To Ship
Most orders ship same-day if ordered before 1pm CST.
✅OE Direct Replacement — Bolt-on fit, no modifications needed
🚗Fitment: Ford and Mercury, Escape and Mariner
🔄Easy Returns — Return within 60 days for a full refund
🚚Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? Click here for all Fuel Pump Module Assembly options
Autotecnica FD0519544 Fuel Pump Module Assembly
| Brand | Autotecnica |
| Part Number | FD0519544 |
| Connector Color | Black |
| Maximum Pressure | 50 |
| Height | 114 |
| Connector Shape | Circle |
| Housing Material | Pom |
| Resistance Ohms Empty | 1.4 |
| Resistance Ohms Full | 16.01 |
| Gasket Or Seal Material | Nbr |
| Average Current Draw | 6 |
| Average Flow Rating | 70 |
| Amperage (A) | 6.15 |
| Electric Or Mechanical | Electrical |
| Flow Rate (gph) | 70 |
| Flow Restriction Pressure (psi) | 50 |
| Gasket Or Seal Included | Yes |
| Housing Material | Pom |
| Inlet Diameter (In) | 0.224 |
| Inlet Fitting Type | Pipe |
| Outlet Diameter (In) | 0.38 |
| Outlet Fitting Type | Pipe |
This part fits 6 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2007 | Ford | Escape | 3.0L | V6 | N/A | Production Date Range: To 01/2007 | |
| 2007 | Mercury | Mariner | 3.0L | V6 | N/A | Production Date Range: To 01/2007 | |
| 2006 | Ford | Escape | 2.3L | L4 | GAS | N/A | Without Onboard Vapor Recovery System |
| 2006 | Mercury | Mariner | 2.3L | L4 | GAS | N/A | Without Onboard Vapor Recovery System |
| 2005 | Ford | Escape | 2.3L | L4 | GAS | N/A | Without Onboard Vapor Recovery System |
| 2005 | Mercury | Mariner | N/A | Without Onboard Vapor Recovery System |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
525-27305L8Z-9H307-A5L8Z-9H307-BC5L8Z-9H307-BD6L8Z-9H307-BA7L8Z-9H307-BE2453MFD0519544FG0842P76128MSP2055M
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
