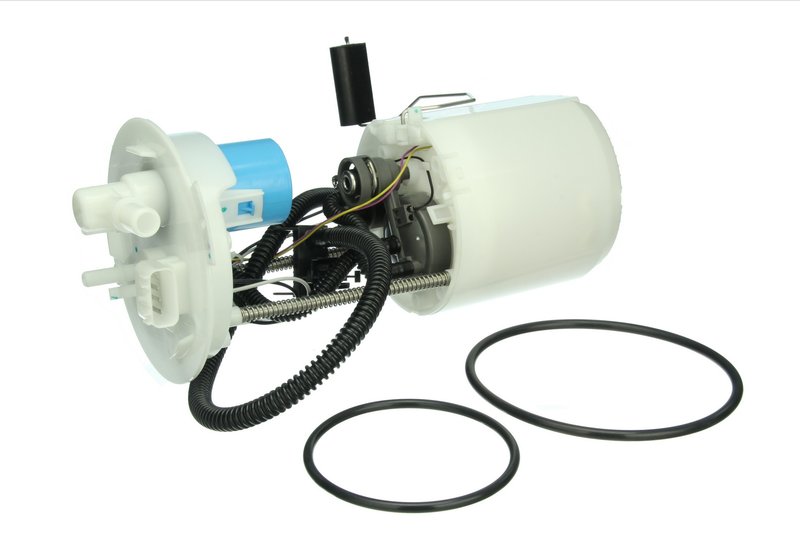

Autotecnica GM0516567 Fuel Pump Module Assembly
| Brand | Autotecnica GM0516567 |
|---|---|
| Fuel Sending Unit Included | Yes |
| Negative Ground | No |
| Connector Color | White |
| Regulator Included | Yes |
| Mounting Hardware Included | No |
| Universal Or Specific Fit | Specific |
| Grade Type | Regular |
| Connector Shape | Oe specific |
| Gasket Or Seal Included | Yes |
| Housing Material | Pom |
| Lock Ring Included | No |
| Connector Gender | Female |
| Terminal Gender | Female |
| Strainer Included | Yes |
| Inlet Type | Barbed |
| Inlet Quantity | 1 |
| In Tank or External | In tank |
| Gasket Or Seal Material | Nbr |
| Internal Or External Strainer | Internal |
| Fuel Tank Pressure Sensor Included | No |
| Pump Type | Electric |
| Bracket Included | No |
| Electric Or Mechanical | Electrical |
| Fill Vapor Valve Included | No |
| Flow Rate (gph) | 45 |
| Flow Restriction Pressure (psi) | 45 |
| Gasket Or Seal Included | Yes |
| Inlet Diameter (In) | 0.252 |
| Inlet Fitting Type | Barbed |
| Module Included | No |
| Fits | Buick and Chevrolet · 18 vehicles |
Specific-fit design. Built for the listed application with OE-specific connector geometry.
Complete service assembly. Includes the sending unit, regulator, strainer, and sealing components.
In-tank electric pump. Uses a barbed inlet and outlet for fuel system service.
Cross-references Autotecnica GM0516567, Delphi FG1813 and 13516865 for the same application. See all 7.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Fuel pump module assembly details
This Autotecnica fuel pump module assembly is a specific-fit replacement for GM0516567 applications. It is built as an in-tank electric fuel pump module assembly with an OE-specific connector shape and included fuel sending unit, regulator, strainer, and seals.
- Specific-fit fuel pump module assembly for direct application matching.
- In-tank electric design with barbed inlet and outlet fittings.
- Includes fuel sending unit, regulator, strainer, and gasket/seal components.
- OE-specific connector shape with female connector and terminal ends.
- POM housing and NBR seal material for fuel system service.
Application and fitment
Compatible with Buick Encore and Chevrolet Trax applications listed below. Fits 2013-2022 Buick Encore, N/A. Fits 2015-2022 Chevrolet Trax, N/A. This part number, GM0516567, also cross-references Delphi FG1813 for the same application.
For Buick Encore and Chevrolet Trax fuel system service, this assembly addresses common replacement needs where the original in-tank pump module has worn or failed. The GM0516567 part number is used for the listed vehicle coverage and helps maintain the fuel delivery components in one service assembly.
Common replacement reasons
- Engine cranking with no fuel delivery.
- Hard starting caused by a weak or failed pump.
- Fuel pressure loss from a worn internal pump or regulator.
- Fuel gauge or sending unit issues tied to the module assembly.
Installation notes
Verify connector style, inlet and outlet configuration, and tank opening details before installation. This is an in-tank electrical fuel pump assembly, so the fuel tank must be accessed for service. Mounting hardware is not included.
Quality assurance
Autotecnica manufactures aftermarket parts under ISO/TS 16949 quality management standards and backs this part with a two-year, unlimited mileage warranty.
| Year | Make | Model | Drive Type | Notes |
|---|---|---|---|---|
| 2022 | Buick | Encore | AWD | — |
| 2022 | Chevrolet | Trax | AWD | — |
| 2021 | Buick | Encore | AWD | — |
| 2021 | Chevrolet | Trax | AWD | — |
| 2020 | Buick | Encore | AWD | — |
| 2020 | Chevrolet | Trax | AWD | — |
| 2019 | Buick | Encore | AWD | — |
| 2019 | Chevrolet | Trax | AWD | — |
| 2018 | Buick | Encore | AWD | — |
| 2018 | Chevrolet | Trax | AWD | — |
| 2017 | Buick | Encore | AWD | — |
| 2017 | Chevrolet | Trax | AWD | — |
| 2016 | Buick | Encore | AWD | — |
| 2016 | Chevrolet | Trax | AWD | — |
| 2015 | Buick | Encore | AWD | — |
| 2015 | Chevrolet | Trax | AWD | — |
| 2014 | Buick | Encore | AWD | — |
| 2013 | Buick | Encore | AWD | — |
