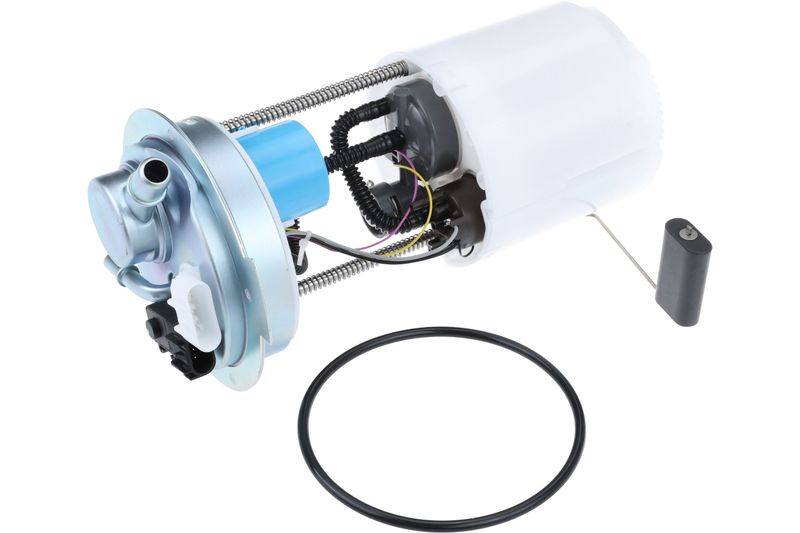

Autotecnica GM0516579 Fuel Pump Module Assembly
| Brand | Autotecnica GM0516579 |
|---|---|
| Fuel Sending Unit Included | Yes |
| Negative Ground | Yes |
| Fuel Type | Gas |
| Connector Color | White |
| Regulator Included | No |
| Terminal Type | Blade |
| Mounting Hardware Included | No |
| Height | 310 |
| Universal Or Specific Fit | Specific |
| Housing Length | 125 |
| Grade Type | Regular |
| Connector Shape | Rectangular |
| Gasket Or Seal Included | Yes |
| Housing Material | Pom |
| Terminal Quantity | 4 |
| Lock Ring Included | No |
| Connector Gender | Female |
| Terminal Gender | Male |
| Strainer Included | No |
| Inlet Quantity | 1 |
| Outlet Quantity | 1 |
| Fuel Filter Included | No |
| In Tank or External | In tank |
| Resistance Ohms Empty | 250 |
| Resistance Ohms Full | 40.6 |
| Gasket Or Seal Material | Nbr |
| Internal Or External Strainer | Internal |
| Average Current Draw | 8.78 |
| Fuel Tank Pressure Sensor Included | Yes |
| Average Flow Rating | 39 |
| Fits | Chevrolet and GMC · 8 vehicles |
Specific-fit assembly. Built for gas applications with an electric in-tank design and 12-volt operation.
Integrated components. Includes the fuel sending unit and fuel tank pressure sensor in one module.
Quality-built replacement. Manufactured to ISO/TS 16949 QMS specifications and backed by a two-year warranty.
Cross-references Autotecnica GM0516579, Carter P76833M and Delphi FG1304 for the same application. See all 11.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Fuel Pump Module Assembly Overview
This Autotecnica fuel pump module assembly is a specific-fit replacement for gas applications and is built for in-tank use. It combines the pump, fuel sending unit, and fuel tank pressure sensor in one assembly for a direct service replacement on select GM trucks and pickups.
Key Features
- Specific-fit fuel pump module assembly for gas applications
- Electric, 12-volt design with a rectangular female connector
- Includes the fuel sending unit and fuel tank pressure sensor
- POM housing with an NBR gasket or seal
- In-tank configuration with one inlet and one outlet
- 39.6 gph flow rate and 50 psi flow restriction pressure
Detailed Description
Autotecnica GM0516579 is engineered as a replacement fuel pump module assembly for 2009-2012 Chevrolet Colorado and 2009-2012 GMC Canyon applications. The assembly uses an electric pump design, blade terminals, and a 4-terminal connection layout, with a white connector and female connector gender for a specific-fit installation. The housing is made from POM, and the seal material is NBR for the fuel system interface. GM0516579 is a practical OE-style replacement for service work where the original in-tank module has failed or is no longer performing to specification. This part cross-references Carter P76833M and Delphi FG1304 for the same application.
What It Is Used For
- Restoring fuel delivery when the original module no longer maintains pressure
- Replacing a worn fuel sending unit that causes inaccurate fuel level readings
- Addressing fuel tank pressure sensor faults tied to the module assembly
- Correcting drivability issues related to weak pump output or inconsistent flow
- Servicing an in-tank fuel system with a specific-fit replacement module
Installation Notes and Quality
Verify connector style, terminal layout, and tank configuration before installation. This module is designed for in-tank placement and uses a specific-fit format, so matching the original application details is important. Autotecnica manufactures parts under ISO/TS 16949 QMS specifications and backs this part with a two-year, unlimited mileage warranty.
| Year | Make | Model | Notes |
|---|---|---|---|
| 2012 | Chevrolet | Colorado | — |
| 2012 | GMC | Canyon | — |
| 2011 | Chevrolet | Colorado | — |
| 2011 | GMC | Canyon | — |
| 2010 | Chevrolet | Colorado | — |
| 2010 | GMC | Canyon | — |
| 2009 | Chevrolet | Colorado | — |
| 2009 | GMC | Canyon | — |
