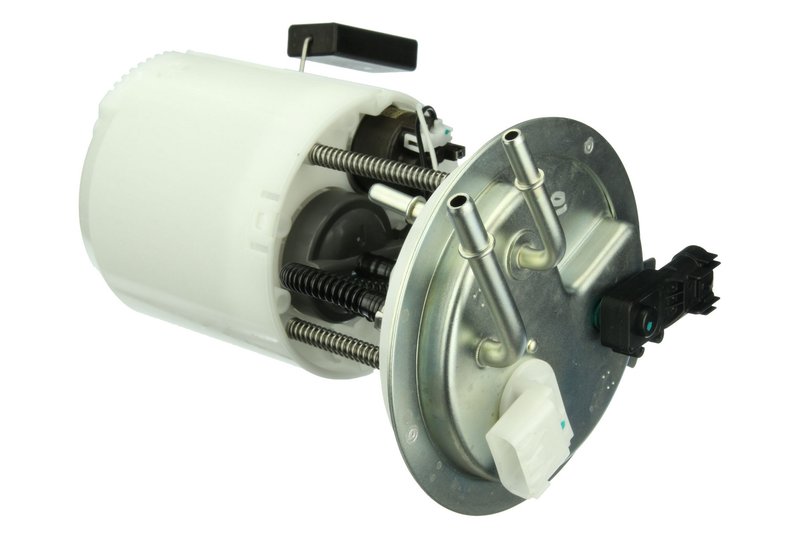

Autotecnica GM0516924 Fuel Pump Module Assembly

Fuel Pump Module Assembly Overview

Autotecnica GM0516924 is a fuel pump module assembly built for direct replacement service on select full-size GM SUVs. It combines the fuel sending unit, fuel filter, and fuel tank pressure sensor in one electrical assembly for a cleaner repair path.

Compatible With 2015-2016 Cadillac Escalade, 2015-2016 Chevrolet Tahoe, and 2015-2016 GMC Yukon. The GM0516924 is a fitment-based replacement for vehicles that need accurate fuel delivery and tank level reporting.

Key Features

• Electrical fuel pump module assembly with direct inlet and outlet fittings
• Fuel sending unit included for level signal transfer
• Fuel filter included to support cleaner fuel delivery
• Fuel tank pressure sensor included for system monitoring
• POM housing with white rectangular female connector and blade terminals
• 11.16 amp electrical draw and 48.87 gph flow rate at 40 psi

Detailed Description

This Autotecnica fuel pump module assembly is engineered around OE-style service requirements and uses a rectangular 4-terminal connector with direct-fit inlet and outlet connections. The module is built with a POM housing and includes the sending unit, filter, and pressure sensor needed for a complete fuel system repair. GM0516924 is a practical replacement choice for Cadillac Escalade, Chevrolet Tahoe, and GMC Yukon applications where fuel delivery and tank signal accuracy matter.

Autotecnica positions this part line as an aftermarket alternative for passenger cars and trucks across multiple systems, with manufacturing controlled under ISO/TS 16949 quality management standards. Part number GM0516924 also cross-references Delphi FG2105 for the same application.

Common Repair Uses

• Hard starting caused by weak fuel delivery
• Inaccurate fuel level readings from a worn sending unit
• Fuel pressure loss under load
• Tank pressure sensor faults tied to module wear
• Restricted fuel flow from an aging in-tank assembly

Installation Notes

Verify connector shape, terminal count, inlet and outlet sizing, and tank application before installation. This module uses direct fittings and an electrical connector layout that should be matched to the original unit. Confirm fitment for the specific Cadillac Escalade, Chevrolet Tahoe, or GMC Yukon application before service.

Quality Assurance

Autotecnica manufactures this part under ISO/TS 16949 quality management standards and backs it with a two-year, unlimited mileage warranty. GM0516924 is offered as an OE-specification aftermarket replacement for service work that calls for consistent fuel system performance.
