Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

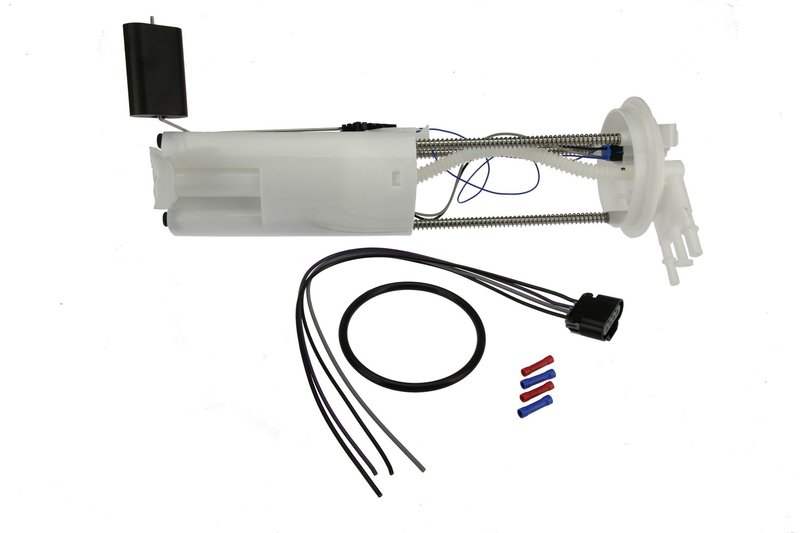

Autotecnica GM0517246 Fuel Pump Module Assembly
| Brand | Autotecnica GM0517246 |
|---|---|
| Fuel Sending Unit Included | Yes |
| Negative Ground | Yes |
| Voltage | 12 |
| Fuel Type | Gas |
| Regulator Included | No |
| Mounting Hardware Included | No |
| Height | 390 |
| Universal Or Specific Fit | Specific |
| Wire Quantity | 4 |
| Grade Type | Regular |
| Gasket Or Seal Included | Yes |
| Housing Material | Pom |
| Terminal Quantity | 4 |
| Lock Ring Included | No |
| Connector Gender | Female |
| Terminal Gender | Male |
| Strainer Included | Yes |
| Inlet Quantity | 1 |
| Outlet Quantity | 1 |
| Fuel Filter Included | Yes |
| In Tank or External | In tank |
| Resistance Ohms Empty | 39.5 |
| Resistance Ohms Full | 249 |
| Gasket Or Seal Material | Nbr |
| Internal Or External Strainer | External |
| Wire Harness Included | Yes |
| Fuel Tank Pressure Sensor Included | No |
| Pump Type | Electric |
| Bracket Included | No |
| Fill Vapor Valve Included | No |
| Fits | Chevrolet, GMC, and Saturn · 23 vehicles |
Efficient impeller design. Maximizes fuel flow while minimizing current draw.
Quiet, low-vibration operation. Precision bearings and low-resistance brushes improve durability.
Complete module assembly. Includes fuel sending unit, strainer, filter, harness, and seals.
Cross-references Airtex Fuel Pumps E3994M, Autotecnica GM0517246 and Carter P74771M for the same application. See all 15.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Fuel Pump Module Assembly for GM and Saturn
Autotecnica GM0517246 is a specific-fit in-tank electric fuel pump module assembly for select Chevrolet, GMC, and Saturn applications. It is built with a fuel sending unit, fuel filter, strainer, wire harness, and tank seal to support accurate fuel delivery and level reporting.
Compatible With 1998-1999 Chevrolet C2500 Suburban and K2500 Suburban, 1998-1999 GMC C2500 Suburban and K2500 Suburban, and 1997 Saturn SC1, SC2, SL, SL1, SL2, SW1, and SW2.
- Specific-fit fuel pump module assembly for gas applications
- 12-volt electric pump with negative ground design
- Efficient impeller design for strong fuel flow with lower current draw
- Precision armature bearings for quieter operation and reduced vibration
- Low-resistance motor brushes for durability and electrical efficiency
- Fuel sending unit, fuel level sensor assembly, fuel filter, strainer, wire harness, gasket/seal, and tank seal included
- Female connector with 4 wires and 4 terminals
- In-tank configuration with one inlet and one outlet
- Durable POM housing and NBR seal material
Detailed Application Overview
This Autotecnica fuel pump module assembly is engineered for direct replacement on select GM trucks and Saturn compact cars, including the Chevrolet C2500 Suburban, GMC K2500 Suburban, and Saturn SL-series models. The GM0517246 part number is also referenced by OE number 19331242 and is used in fuel system service where stable pressure delivery and accurate fuel level input are required.
This part cross-references Airtex E3994M and Carter P74771M for the same application. Factory testing helps confirm proper operation before installation, and the housing materials are selected for durability in the fuel tank environment.
Common Problems This Part Addresses
- Hard starting caused by a weak or failing in-tank fuel pump
- Fuel starvation under load from reduced pump output
- Inaccurate fuel gauge readings from a worn sending unit
- Excess pump noise or vibration from internal wear
- Intermittent fuel delivery from electrical or motor brush deterioration
Installation Notes and Tips
Verify the vehicle’s connector style, wire count, and tank configuration before installation. Replace the tank seal during service and inspect the fuel tank, wiring, and lines for contamination or damage before installing the new module. Because this assembly is specific fit, confirm the application against the vehicle’s year, make, and model before removal of the original unit.
Quality Assurance
Autotecnica GM0517246 is factory tested for proper operation and backed by a 24 Month Unlimited Mileage Warranty. The design emphasizes efficient fuel flow, quiet operation, and durable construction for long-term service in compatible Chevrolet, GMC, and Saturn fuel systems.
| Year | Make | Model | Liters | Cylinders | Notes |
|---|---|---|---|---|---|
| 1999 | Chevrolet | C2500 Suburban | 7.4L | V8 | — |
| 1999 | Chevrolet | C2500 Suburban | 5.7L | V8 | — |
| 1999 | Chevrolet | K2500 Suburban | 7.4L | V8 | — |
| 1999 | Chevrolet | K2500 Suburban | 5.7L | V8 | — |
| 1999 | GMC | C2500 Suburban | 7.4L | V8 | — |
| 1999 | GMC | C2500 Suburban | 5.7L | V8 | — |
| 1999 | GMC | K2500 Suburban | 7.4L | V8 | — |
| 1999 | GMC | K2500 Suburban | 5.7L | V8 | — |
| 1998 | Chevrolet | C2500 Suburban | 7.4L | V8 | — |
| 1998 | Chevrolet | C2500 Suburban | 5.7L | V8 | — |
| 1998 | Chevrolet | K2500 Suburban | 7.4L | V8 | — |
| 1998 | Chevrolet | K2500 Suburban | 5.7L | V8 | — |
| 1998 | GMC | C2500 Suburban | 7.4L | V8 | — |
| 1998 | GMC | C2500 Suburban | 5.7L | V8 | — |
| 1998 | GMC | K2500 Suburban | 7.4L | V8 | — |
| 1998 | GMC | K2500 Suburban | 5.7L | V8 | — |
| 1997 | Saturn | SC1 | 1.9L | L4 | — |
| 1997 | Saturn | SC2 | 1.9L | L4 | — |
| 1997 | Saturn | SL | 1.9L | L4 | — |
| 1997 | Saturn | SL1 | 1.9L | L4 | — |
| 1997 | Saturn | SL2 | 1.9L | L4 | — |
| 1997 | Saturn | SW1 | 1.9L | L4 | — |
| 1997 | Saturn | SW2 | 1.9L | L4 | — |
