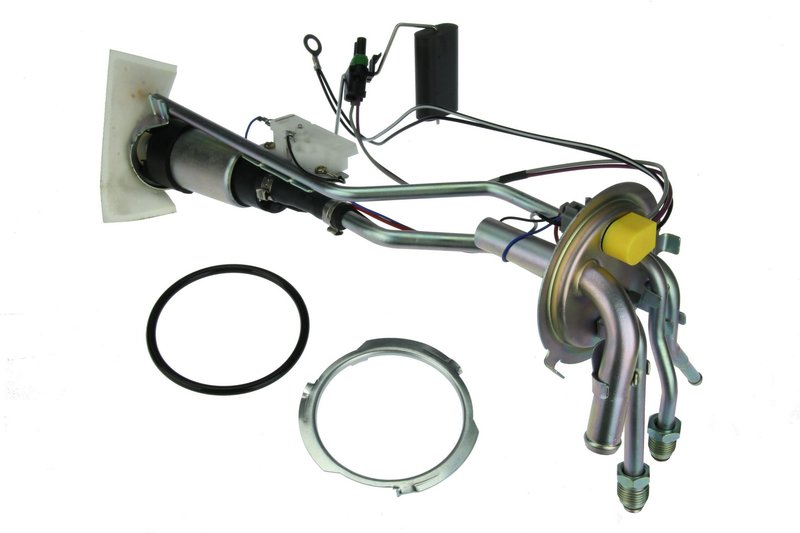

Autotecnica GM0517671 Fuel Pump Hanger Assembly
Fuel Pump Hanger Assembly for GM Applications
The Autotecnica GM0517671 fuel pump hanger assembly is a specific-fit, in-tank electric fuel delivery component for 1992-1995 Chevrolet S10 and 1992-1995 GMC Sonoma models. It is built around the listed electrical and sender specifications to support fuel level reporting and in-tank pump operation in the correct GM application.
Key Features
- Specific-fit fuel pump hanger assembly for GM truck applications
- In-tank electric pump design
- Average flow rating: 40.7
- Fuel level sender resistance: 5.5 ohms empty, 98.3 ohms full
- Connector color: white with female connector gender
- Wire colors: black, black/white, purple, grey
- NBR gasket/seal material specification listed
- Part number: GM0517671
Detailed Description
Autotecnica GM0517671 is a fuel pump hanger assembly engineered for direct application use in the fuel tank. It is listed for 1992-1995 Chevrolet S10 and 1992-1995 GMC Sonoma, making it a fitment-specific choice for owners searching for a fuel pump hanger assembly for Chevrolet S10 fuel system repair or a GMC Sonoma in-tank fuel pump hanger replacement. The assembly includes the sender resistance values needed for fuel gauge operation and uses the specified wire color layout and white female connector for proper electrical interface. Part number GM0517671 is the reference to verify before ordering.
This part cross-references Autotecnica GM0517671 for the same application.
What It Is Used For
- Restoring fuel delivery in a vehicle with a failed in-tank pump assembly
- Correcting inaccurate fuel level readings caused by sender wear
- Replacing a damaged hanger assembly or electrical connector interface
- Addressing intermittent fuel pump operation related to internal tank components
- Supporting repair of a no-start condition tied to fuel supply loss
Installation Notes and Tips
Verify the vehicle year, make, and model before installation. This is a specific-fit in-tank assembly for 1992-1995 Chevrolet S10 and 1992-1995 GMC Sonoma, so confirm connector style, wire colors, and sender resistance values against the original unit. Gasket or seal, lock ring, and wire harness are not included. Use the existing service parts or vehicle-specific replacements as required during tank service.
Quality Assurance
Autotecnica replacement components are cataloged by exact part number and application data to support accurate ordering and fitment verification. GM0517671 is listed with defined electrical and sender specifications for the intended GM truck applications.
| Brand | Autotecnica |
|---|---|
| Part Number | GM0517671 |
| Length | 350 |
| Wire Colors | Black, black/white, purple, grey |
| Connector Color | White |
| Universal Or Specific Fit | Specific |
| Gasket Or Seal Included | No |
| Lock Ring Included | No |
| Connector Gender | Female |
| In Tank or External | In tank |
| Resistance Ohms Empty | 5.5 |
| Resistance Ohms Full | 98.3 |
| Gasket Or Seal Material | Nbr |
| Wire Harness Included | No |
| Average Flow Rating | 40.7 |
| Pump Type | Electric |
This part fits 8 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 1995 | Chevrolet | S10 | 4.3L | V6 | N/A | |
| 1995 | GMC | Sonoma | 4.3L | V6 | N/A | |
| 1994 | Chevrolet | S10 | 4.3L | V6 | N/A | |
| 1994 | GMC | Sonoma | 4.3L | V6 | N/A | |
| 1993 | Chevrolet | S10 | 4.3L | V6 | N/A | |
| 1993 | GMC | Sonoma | 4.3L | V6 | N/A | |
| 1992 | Chevrolet | S10 | 4.3L | V6 | N/A | |
| 1992 | GMC | Sonoma | 4.3L | V6 | N/A |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
