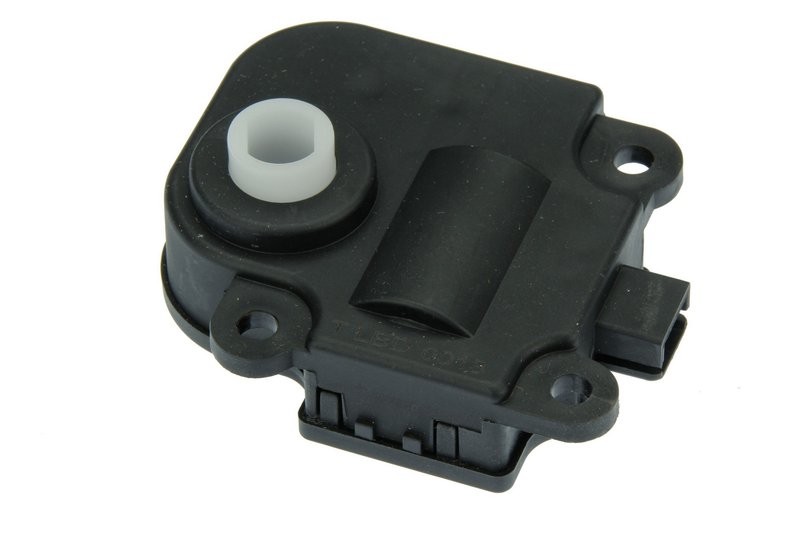

Autotecnica GM0618221 HVAC Blend Door Actuator - Main

HVAC Blend Door Actuator for GM Applications

The Autotecnica GM0618221 HVAC blend door actuator restores temperature control in a range of Chevrolet, Pontiac, and Saturn vehicles. It is a rotary-style actuator with a 2-pin male terminal design, built for main HVAC position applications where precise blend door movement is needed.

Key Features

• HVAC blend door actuator for temperature blend control
• Rotary switch activation type for direct actuator operation
• 2-pin male terminal configuration
• No mounting hardware included
• OE-style aftermarket replacement from Autotecnica
• Part number GM0618221 for catalog and fitment lookup

Detailed Description

Autotecnica GM0618221 is an aftermarket HVAC blend door actuator engineered for vehicles that use a rotary, pin-terminal actuator in the main HVAC position. It is a practical replacement for GM-platform cars and trucks where the blend door no longer responds correctly to temperature commands. This part cross-references Dorman OE Solutions 604-109 for the same application. The GM0618221 is listed for models including the Chevrolet Malibu, Chevrolet HHR, Chevrolet Cobalt, Pontiac G5, Pontiac G6, Saturn Aura, Saturn Ion, Pontiac G4, Pontiac Pursuit, Chevrolet Cavalier, and Pontiac Sunfire.

What It Helps Fix

• Air blowing only hot or only cold
• Inconsistent cabin temperature control
• Blend door movement that does not respond to HVAC commands
• Temperature changes that lag or stop at one setting
• HVAC system output that no longer matches the selected climate setting

Installation Notes and Tips

Verify the connector style, terminal count, and main-position application before installation. The actuator uses a 2-pin male terminal layout and rotary activation, so matching the original electrical and mounting configuration is important. Confirm the blend door moves freely and inspect the HVAC housing for binding before replacing the actuator. Professional installation is recommended when access to the HVAC case is limited.

Quality Assurance

Autotecnica manufactures aftermarket parts to ISO/TS 16949 QMS specifications and positions this component as an OEM-spec replacement option for DIY and professional repairs. Part number GM0618221 is supported by a two-year, unlimited mileage warranty.
