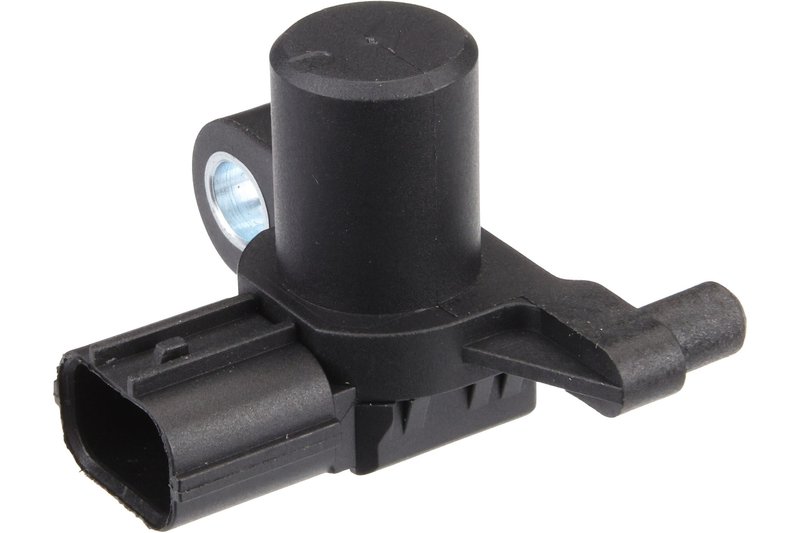

Autotecnica HA1420195 Engine Camshaft Position Sensor
| Brand | Autotecnica HA1420195 |
|---|---|
| Terminal Type | Blade pin |
| Wire Quantity | 3 |
| Grade Type | Regular |
| Connector Quantity | 1 |
| Connector Shape | Rectangle |
| Terminal Quantity | 3 |
| Connector Gender | Male |
| Wiring Harness Included | No |
| Mounting Bracket Included | Yes |
| Fits | Acura and Honda · 9 vehicles |
OE-style replacement. Built as an aftermarket alternative to expensive genuine components.
3-wire design. Uses blade-pin terminals and a rectangular male connector.
Mounting bracket included. Helps support a secure sensor installation.
Cross-references Autotecnica HA1420195, Beck/Arnley 180-0531 and Delphi SS11465 for the same application. See all 24.
Engine Camshaft Position Sensor Overview
Autotecnica HA1420195 is an engine camshaft position sensor built for select Honda and Acura applications. It uses a 3-wire blade-pin design with a single rectangular male connector and includes a mounting bracket for a direct replacement-style installation.
Fits 2001-2005 Honda Civic and 2001-2004 Acura EL. This part number, HA1420195, is a practical OE-spec replacement for diagnosing camshaft signal issues in compatible ignition systems.
Key Features
- 3-wire sensor design with blade-pin terminals
- Single rectangular male connector for straightforward electrical connection
- Mounting bracket included for secure installation
- Regular grade replacement part for ignition system service
- Cross-references Standard Ignition PC618 and Delphi SS11465 for the same application
Detailed Description
The Autotecnica HA1420195 camshaft position sensor monitors camshaft position data used by the engine management system for timing and fuel control. Its 3-terminal layout, rectangular connector shape, and included bracket make it a fitment-focused replacement for vehicles that require this specific sensor configuration. For Honda Civic and Acura EL service, HA1420195 provides a direct-match option when the original sensor has failed or is producing inconsistent signals.
Autotecnica positions this part within its broad aftermarket catalog for Asian and North American vehicles, with manufacturing controlled under ISO/TS 16949 quality system requirements. The HA1420195 is also listed among multiple cross-reference numbers, which helps confirm application matching during parts lookup.
What It Helps Address
- Hard starting caused by a faulty camshaft signal
- Intermittent stalling from inconsistent sensor output
- Check engine light conditions related to camshaft position faults
- Rough running from incorrect timing input to the engine control system
- Replacement of a damaged sensor connector or mounting setup
Installation Notes and Tips
Verify connector style, terminal count, and bracket configuration before installation. This sensor uses a male rectangular connector with three blade-pin terminals and does not include a wiring harness. Confirm the vehicle application against the listed fitment for Honda Civic and Acura EL before replacing the original part.
Quality Assurance
Autotecnica manufactures this part under ISO/TS 16949 quality management system specifications and backs it with a two-year, unlimited mileage warranty. Part number HA1420195 is presented as an aftermarket alternative to OEM-style components for routine engine sensor replacement.
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 2005 | Honda | Civic | Value Package | — |
| 2004 | Acura | EL | — | — |
| 2004 | Honda | Civic | EX | — |
| 2003 | Acura | EL | — | — |
| 2003 | Honda | Civic | — | — |
| 2002 | Acura | EL | — | — |
| 2002 | Honda | Civic | — | — |
| 2001 | Acura | EL | — | — |
| 2001 | Honda | Civic | — | — |
