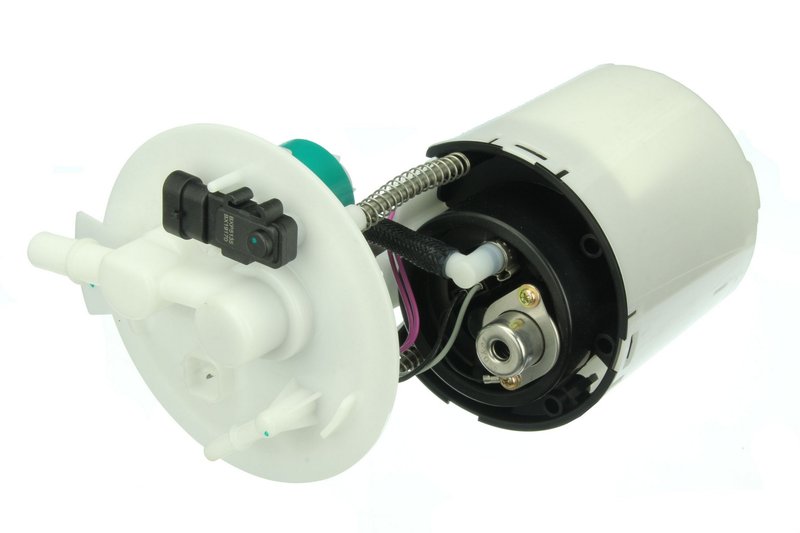

Autotecnica HY0516222 Fuel Pump Module Assembly

Fuel Pump Module Assembly for Hyundai Elantra

Restore consistent fuel delivery with this Autotecnica fuel pump module assembly, part number HY0516222. It is built for 2011-2016 Hyundai Elantra applications and includes the fuel sending unit, fuel filter, gasket or seal, and fuel tank pressure sensor for a complete in-tank service solution.

Autotecnica HY0516222 is an electrical fuel pump module assembly engineered to meet OEM-style specifications for Hyundai Elantra fuel system repair. With direct inlet and outlet fittings, a female connector, and blade terminals, it is a practical replacement for diagnosing fuel pressure, level-signal, or drivability concerns.

Key Features

• Fits 2011-2016 Hyundai Elantra fuel system applications
• Fuel pump module assembly with electrical operation
• Fuel sending unit included for fuel level reporting
• Fuel filter included for in-tank filtration support
• Fuel tank pressure sensor included
• Gasket or seal included
• Housing material: POM
• Flow rate: 34.24 gph at 50 psi
• Resistance: 300 ohms empty, 8 ohms full
• Direct 0.25 in inlet and outlet fittings

Detailed Description

This Autotecnica fuel pump module assembly, HY0516222, is designed for Hyundai Elantra models from 2011 through 2016. It combines the pump, sender, filter, and pressure sensor into one service part, helping simplify fuel system replacement on vehicles that rely on an in-tank module for fuel delivery and tank monitoring. This part cross-references Delphi FG0857 and Spectra Premium SP3034M for the same application.

Built with a POM housing and electrical pump design, this module uses a female connector with male blade terminals and direct-fit inlet and outlet connections. The sender resistance values of 300 ohms empty and 8 ohms full support accurate fuel level feedback, while the included fuel tank pressure sensor addresses evaporative and pressure-monitoring functions used on the Hyundai Elantra platform.

Common Problems This Part Can Address

• Hard starting caused by weak fuel delivery
• Engine hesitation or stalling from low fuel pressure
• Inaccurate fuel gauge readings from a worn sender
• Fuel system warning concerns related to tank pressure sensing
• Restricted flow from a clogged in-tank filter

Installation Notes and Tips

Confirm vehicle fitment by matching the year, make, and model before installation. Replace the tank seal during service and inspect the electrical connector, fuel lines, and tank opening for wear or contamination. After installation, verify fuel pressure, fuel level operation, and leak-free connections before returning the vehicle to service.

Quality Assurance

Autotecnica manufactures aftermarket replacement parts under ISO/TS 16949 quality management system specifications. HY0516222 is backed by a two-year, unlimited mileage warranty.
