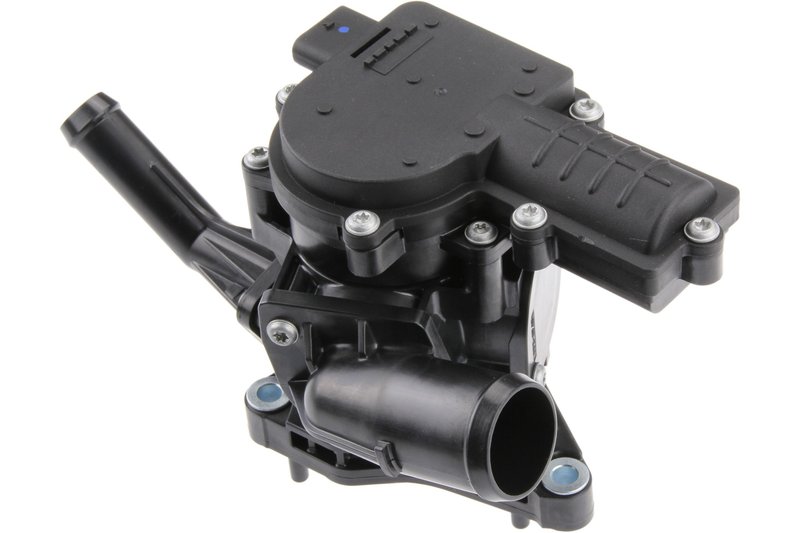

Autotecnica HY0720682 Engine Coolant Thermostat Housing Assembly
| Brand | Autotecnica HY0720682 |
|---|---|
| Material | Pbt-gf30 |
| Color | Black |
| Inside Diameter | 1.16 |
| Mounting Hardware Included | No |
| Grade Type | Regular |
| Gasket Or Seal Included | Yes |
| Mounting Hole Quantity | 1 |
| Bolt Hole Center To Bolt Hole Center | 2.43 |
| Gasket Type | Gasket o-ring |
| Flange Length | 3 |
| Flange Thickness | 1/8 |
| Flange Width | 1.1 |
| Outlet Port Quantity | 1 |
| Bleeder Hole | No |
| New Or Remanufactured | New |
| Fits | Hyundai · 7 vehicles |
OE-spec replacement. Built to match OEM requirements for a straightforward swap.
PBT-GF30 construction. Durable composite housing in a black finish.
Gasket included. Comes with an O-ring seal for a tighter fit.
Cross-references Autotecnica HY0720682, Four Seasons 86356 and 1332-000 for the same application. See all 4.
Engine Coolant Thermostat Housing for Hyundai
Autotecnica HY0720682 is a new engine coolant thermostat housing assembly built for select Hyundai applications. It is made from PBT-GF30 material with a black finish, includes a gasket O-ring seal, and is designed for direct replacement service on covered Hyundai Venue and Accent models.
Key Features
- Engine coolant thermostat housing assembly for cooling system service
- Fits 2020-2023 Hyundai Venue, N/A
- Fits 2021-2022 Hyundai Accent, N/A
- Fits 2020 Hyundai Accent, N/A
- PBT-GF30 construction with black finish
- Gasket or seal included; gasket type is O-ring
- 1 outlet port, 1 mounting hole, no bleeder hole
- New part with regular grade construction
Detailed Description
Autotecnica HY0720682 is an engine coolant thermostat housing assembly engineered for Hyundai cooling system replacement work. The housing uses PBT-GF30 material for durability and thermal stability, and the black housing includes a gasket O-ring seal for service-ready installation. This part cross-references Four Seasons 86356 for the same application. It is a direct-fit option for Hyundai Venue and Hyundai Accent cooling system repairs where the thermostat housing needs replacement.
For buyers searching for a Hyundai Venue thermostat housing assembly or a Hyundai Accent coolant thermostat housing, HY0720682 provides the correct fitment coverage for 2020-2023 Hyundai Venue, 2021-2022 Hyundai Accent, and 2020 Hyundai Accent built from 07/2019 onward.
Common Repair Uses
- Coolant leaks at the thermostat housing
- Cracked or warped plastic housing replacement
- Failed gasket or O-ring sealing at the cooling system connection
- Overheating caused by thermostat housing damage
- Service replacement for worn Hyundai cooling system components
Installation Notes and Tips
Confirm the vehicle year, model, and production date before installation, especially for the 2020 Hyundai Accent application with a production date range from 07/2019. Inspect the mating surface, replace contaminated coolant, and verify the O-ring seats evenly before tightening. Mounting hardware is not included, so reuse or source the correct fasteners as needed. Always bleed the cooling system according to factory procedure after installation.
Quality Assurance
Autotecnica manufactures aftermarket parts to ISO/TS 16949 QMS specifications and positions this housing as an OEM-specification replacement option for Asian and North American vehicles. Part number HY0720682 is a new component backed by Autotecnica’s two-year, unlimited mileage warranty.
| Year | Make | Model | Submodel | Transmission | Notes |
|---|---|---|---|---|---|
| 2023 | Hyundai | Venue | — | — | — |
| 2022 | Hyundai | Accent | SE | Manual | Black; Material: PBT-GF30 |
| 2022 | Hyundai | Venue | — | — | — |
| 2021 | Hyundai | Accent | GL Mid | Manual | Black; Material: PBT-GF30 |
| 2021 | Hyundai | Venue | — | — | — |
| 2020 | Hyundai | Accent | — | Manual | Production Date Range: From 07/2019 |
| 2020 | Hyundai | Venue | — | — | — |
| No rows match your filter. | |||||
