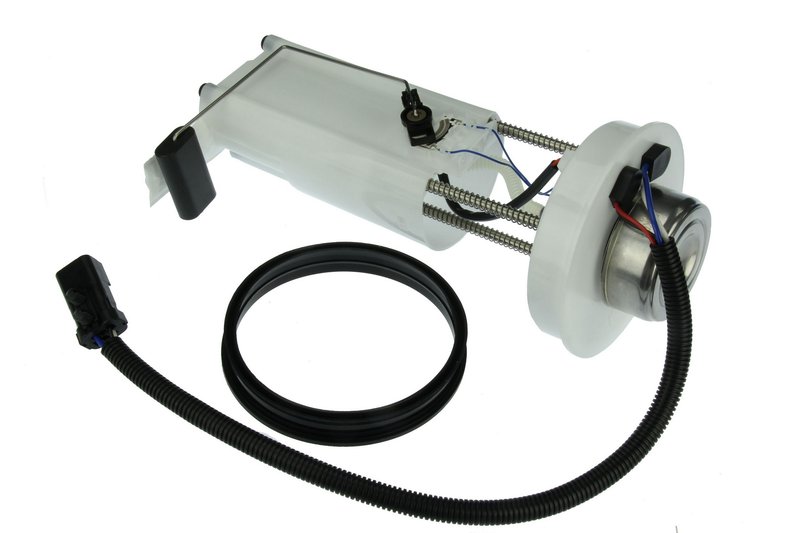

Autotecnica JE0517369 Fuel Pump Module Assembly

Fuel Pump Module Assembly for Jeep TJ, Wrangler, Cherokee

Autotecnica JE0517369 is a specific-fit fuel pump module assembly for select Jeep applications, including 1997-2002 Jeep TJ and Wrangler, and 1997-2001 Jeep Cherokee. It is built for in-tank fuel delivery with an included fuel sending unit, regulator, strainer, gasket, and wire harness for a direct replacement approach.

Key Features

• Specific-fit fuel pump module assembly for confirmed Jeep TJ, Wrangler, and Cherokee applications
• In-tank design with 12-volt operation and negative ground electrical setup
• Fuel sending unit, regulator, strainer, gasket or seal, and wire harness included
• Efficient impeller design helps maintain fuel flow while reducing current draw
• Precision armature bearings support quieter operation and lower vibration
• Low-resistance motor brushes are used for durability and electrical efficiency
• Durable POM housing material and NBR gasket material
• Factory tested for proper operation

Detailed Description

Autotecnica JE0517369 is a fuel pump module assembly engineered for gasoline-powered Jeep vehicles that require an in-tank module with integrated fuel level sending capability. It uses a rectangular female connector with four terminals, a blade-style terminal design, and a 4-wire harness layout. The outlet is hose-style with a 9.55 mm outside diameter, and the assembly includes a regulator for controlled fuel delivery. The sending unit resistance range is 268 ohms empty and 20.7 ohms full, which supports accurate fuel level reporting in the instrument cluster. This part number, JE0517369, is a direct replacement option for Jeep TJ, Wrangler, and Cherokee models within the listed years.

This part cross-references Autotecnica JE0517369 for the same application.

What It Helps Address

• Hard starting caused by weak or inconsistent fuel delivery
• Engine stalling from insufficient fuel pressure at the rail
• Fuel gauge readings that are inaccurate or intermittent
• Noise or vibration from a worn in-tank pump module
• Driveability issues related to an aging fuel pump assembly

Installation Notes and Tips

Verify tank access, connector style, outlet routing, and module dimensions before installation. This fuel pump module assembly is designed for in-tank use and includes a wire harness, so confirm the vehicle’s electrical connection and fuel line interface match the OE layout. Always inspect the tank, sealing surface, and fuel lines for contamination or wear before installing the new module. For Jeep TJ, Wrangler, and Cherokee service work, compare the original sending unit readings and module configuration to the replacement part number JE0517369.

Quality Assurance

Autotecnica states this module is factory tested for proper operation and backed by a 24-month unlimited mileage warranty. The design also emphasizes efficient fuel flow, reduced current draw, quiet operation, and durable housing materials for dependable service.
