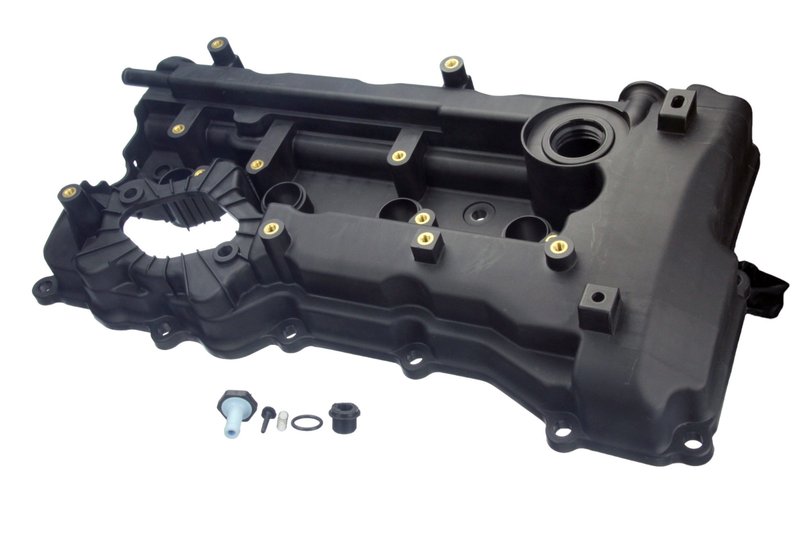

Autotecnica KI1418305 Engine Valve Cover
| Brand | Autotecnica KI1418305 |
|---|---|
| Material | Pa66 |
| Length | 502 |
| Color | Black |
| Oil Filler Cap Included | No |
| Valve Cover Type | Short |
| Finish | Matte |
| Width | 220 |
| Mounting Hardware Included | No |
| Universal Or Specific Fit | Specific |
| Inside Clearance Height | 77 |
| Grommets Included | Yes |
| Hold Down Tabs Included | No |
| Contains Oil Baffles | Yes |
| Material Thickness | 10 |
| Breather Opening Size (in) | .25 |
| Breather Opening Size (mm) | 7 |
| Color | Black |
| Finish | Matte |
| Hardware Included | No |
| Height (in) | 3.1 |
| Height (mm) | 80 |
| Inside Clearance Height (in) | 2.75 |
| Inside Clearance Height (mm) | 70 |
| Length (in) | 19.75 |
| Length (mm) | 502 |
| Material | Pa66-gf35 |
| Number of Mounting Holes | 18 |
| Oil Filler Cap Included | No |
| Width (in) | 8.6 |
| Width (mm) | 220 |
| Fits | Hyundai and Kia · 17 vehicles |
OE-style replacement. Specific-fit valve cover for select Hyundai and Kia engine applications.
PA66-GF35 construction. Engineered for strength, heat resistance, and stable sealing performance.
Integrated oil baffles. Helps manage oil movement inside the cover during engine operation.
Cross-references Autotecnica KI1418305 and 22400-2G670 for the same application. See all 2.
Engine Valve Cover Overview
The Autotecnica KI1418305 engine valve cover is a specific-fit replacement for select Hyundai and Kia applications. It is built from PA66-GF35 with a matte black finish and includes integrated oil baffles for controlled crankcase ventilation and oil management.
Key Features
- Specific-fit engine valve cover for select Asian passenger vehicles
- PA66-GF35 construction for strength and heat resistance
- Matte black finish for a clean OE-style appearance
- Integrated oil baffles to help manage oil movement inside the cover
- Grommets included; oil filler cap not included
- Short valve cover design with 18 mounting holes
Detailed Description
The Autotecnica KI1418305 is an aftermarket engine valve cover engineered as a direct replacement for select Hyundai and Kia models. Its PA66-GF35 material, 10 mm thickness, and short-profile design support a precise fit on applications that require this specific configuration. The cover measures 502 mm long, 220 mm wide, and 80 mm high, with 70 mm of inside clearance height.
This part cross-references 22400-2G670 for the same application. It fits 2013-2016 Hyundai Santa Fe Sport, 2011-2015 Kia Optima with USA built configuration, 2012-2015 Kia Sorento, 2012-2014 Hyundai Sonata, and 2011 Hyundai Sonata with production date range from 07/2010. Use KI1418305 when replacing a worn, cracked, or oil-leaking valve cover on these vehicles.
Common Replacement Reasons
- Oil seepage from a damaged or warped valve cover
- Cracks in the original plastic cover
- Failed sealing surfaces or grommets
- Oil contamination around the cylinder head area
- Loss of proper crankcase sealing
Installation Notes and Tips
Verify engine application, build date, and USA-built fitment before ordering. Transfer or replace related sealing components as needed during installation, and confirm that the mating surfaces are clean and free of debris before tightening fasteners to specification.
Quality Assurance
Autotecnica manufactures aftermarket parts under ISO/TS 16949 quality management standards and positions this valve cover as an OEM-specification alternative. The KI1418305 is covered by a two-year, unlimited mileage warranty.
| Year | Make | Model | Liters | Cylinders | Fuel Type | Notes |
|---|---|---|---|---|---|---|
| 2016 | Hyundai | Santa Fe Sport | — | — | — | — |
| 2015 | Hyundai | Santa Fe Sport | — | — | — | — |
| 2015 | Kia | Optima | 2.4L | L4 | GAS | With USA Built |
| 2015 | Kia | Sorento | 2.4L | L4 | — | — |
| 2014 | Hyundai | Santa Fe Sport | — | — | — | — |
| 2014 | Hyundai | Sonata | 2.4L | L4 | GAS | — |
| 2014 | Kia | Optima | 2.0L | L4 | — | With USA Built |
| 2014 | Kia | Sorento | 2.4L | L4 | — | — |
| 2013 | Hyundai | Santa Fe Sport | — | — | — | — |
| 2013 | Hyundai | Sonata | 2.0L | L4 | — | — |
| 2013 | Kia | Optima | 2.0L | L4 | — | With USA Built |
| 2013 | Kia | Sorento | 2.4L | L4 | — | — |
| 2012 | Hyundai | Sonata | 2.0L | L4 | — | — |
| 2012 | Kia | Optima | 2.4L | L4 | GAS | With USA Built |
| 2012 | Kia | Sorento | 2.4L | L4 | — | — |
| 2011 | Hyundai | Sonata | 2.4L | L4 | GAS | Production Date Range: From 07/2010 |
| 2011 | Kia | Optima | 2.0L | L4 | — | With USA Built |
