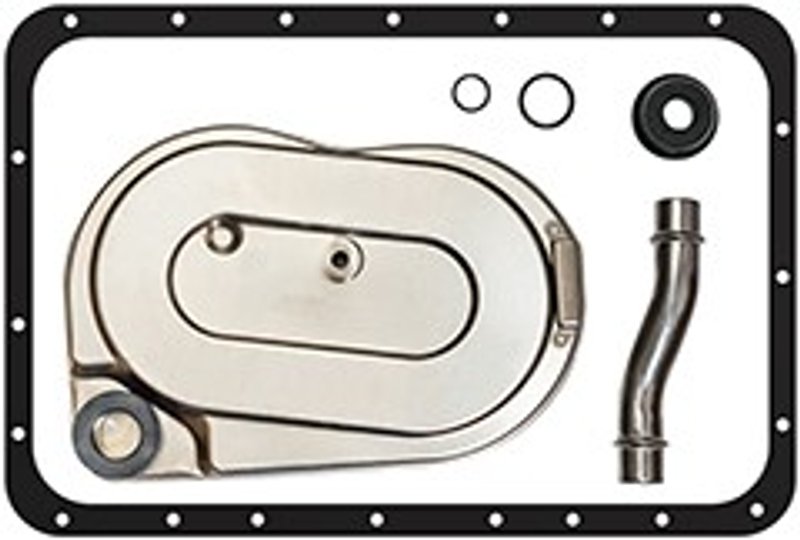

Baldwin 19739 Transmission Oil Filter

Overview of Baldwin Transmission Oil Filter 19739

The Baldwin 19739 transmission oil filter is designed specifically for Allison MT640 and MT650 series transmissions with rear-wheel drive and deep pan configurations. This filter ensures proper filtration and fluid flow to maintain transmission performance and longevity.

• Includes a 7 inch outlet tube for efficient fluid routing
• Equipped with one attached grommet for secure sealing
• Comes with two O-rings to ensure leak-free installation
• Dimensions: 12 5/8 inches length, 8 19/32 inches width, and 1 1/4 inch height (320.7 mm x 218.3 mm x 31.8 mm)
• Compatible with pan gasket featuring 21 bolt holes
• Optional fiber gasket available (part number g1973)
• Replaces OEM parts Allison 29502302 and GMC 6834831

Detailed Product Description

The Baldwin 19739 transmission oil filter is engineered to meet the specifications required by Allison MT640 and MT650 series transmissions, particularly those with rear-wheel drive and deep pan setups. Its 7 inch outlet tube facilitates proper fluid flow, while the attached grommet and included O-rings provide a secure and reliable seal to prevent leaks. The filter's dimensions—12 5/8 inches in length, 8 19/32 inches in width, and 1 1/4 inch in height—are designed to fit precisely within the transmission housing. The pan gasket, which contains 21 bolt holes, ensures a tight fit and can be paired with an optional fiber gasket (g1973) for enhanced sealing. This filter replaces OEM part numbers Allison 29502302 and GMC 6834831, making it a direct replacement for compatible transmissions.

Applications and Common Issues Addressed

• Maintains clean transmission fluid to prevent premature wear
• Helps avoid transmission slipping caused by contaminated fluid
• Prevents clogging in transmission fluid passages
• Reduces risk of overheating due to restricted fluid flow
• Supports smooth shifting and overall transmission reliability

Installation Notes and Tips

When installing the Baldwin 19739 transmission oil filter, ensure the pan gasket with 21 bolt holes is properly aligned to avoid leaks. Use the included O-rings to secure a tight seal around the filter and outlet tube. If preferred, the optional fiber gasket (g1973) can be used for additional sealing. Verify compatibility with Allison MT640 or MT650 series transmissions configured with rear-wheel drive and deep pan before installation.

Quality Assurance and Warranty

Baldwin transmission filters are manufactured to meet industry standards for durability and filtration efficiency. The 19739 filter is designed to provide reliable service life when installed according to manufacturer guidelines. Please consult Baldwin's warranty documentation for specific coverage details related to this transmission oil filter.
