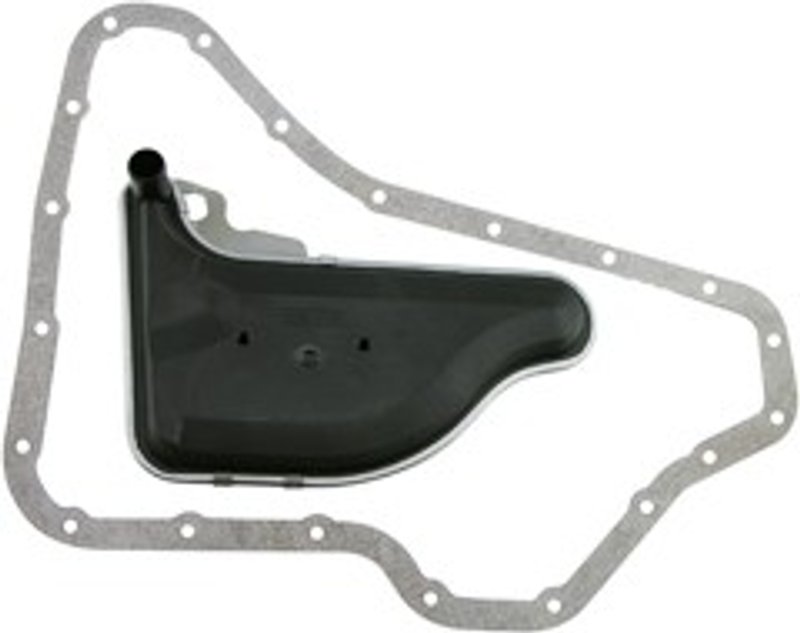

Baldwin 20014 Transmission Filter

Overview of Baldwin Transmission Oil Filter 20014

The Baldwin Transmission Oil Filter 20014 is designed for reliable filtration in select GM vehicles from 1991 to 2011. This transmission oil filter is compatible with various Buick, Chevrolet, Cadillac, Oldsmobile, Pontiac, and Saturn models, ensuring proper transmission fluid cleanliness and system protection.

• Compatible with 1991-2011 Buick, Chevrolet, 1991-95 Cadillac, and 1991-2004 Oldsmobile models
• Includes pan gasket with 20 bolt holes for secure installation
• Dimensions: Height 2 5/32 inches (54.8 mm), Length 10 19/32 inches (269.1 mm), Width 6 13/16 inches (173 mm)
• Replaces Wix 58837 transmission oil filter
• Related part number 18022 available without pan gasket

Detailed Product Description

The Baldwin 20014 transmission oil filter is engineered to meet the filtration requirements of multiple GM vehicle transmissions. Its precise dimensions—2 5/32 inches in height, 10 19/32 inches in length, and 6 13/16 inches in width—ensure a proper fit within the transmission pan. The included pan gasket features 20 bolt holes, providing a secure seal to prevent leaks during operation. This filter is a direct replacement for Wix 58837, making it a suitable option for maintenance or repair of compatible Buick, Chevrolet, Cadillac, and Oldsmobile transmissions. The filter's design supports effective removal of contaminants from transmission fluid, helping maintain smooth shifting and prolong transmission life.

Applications and Common Issues Addressed

• Prevents transmission fluid contamination that can cause shifting delays or slipping
• Helps avoid transmission overheating due to clogged filters
• Reduces wear on transmission components by filtering debris
• Addresses fluid leakage issues related to worn or damaged pan gaskets
• Supports consistent hydraulic pressure for proper transmission function

Installation Notes and Tips

When installing the Baldwin 20014 transmission oil filter, ensure the pan gasket with 20 bolt holes is properly aligned to avoid leaks. This filter is designed for specific GM transmissions and should only be used with compatible vehicles listed. It is recommended to replace the transmission fluid and inspect the pan for debris during filter replacement. Use the correct torque specifications for pan bolts to maintain gasket integrity. Note that this filter is related to part number 18022, which does not include a pan gasket.

Quality Assurance and Warranty

Baldwin transmission oil filters are manufactured to meet industry standards for filtration efficiency and durability. The 20014 filter undergoes quality control testing to ensure fitment accuracy and reliable performance. While specific warranty details are not provided, Baldwin products typically come with manufacturer-backed warranties covering defects in materials and workmanship. For optimal transmission protection, use genuine Baldwin parts and follow recommended maintenance intervals.
