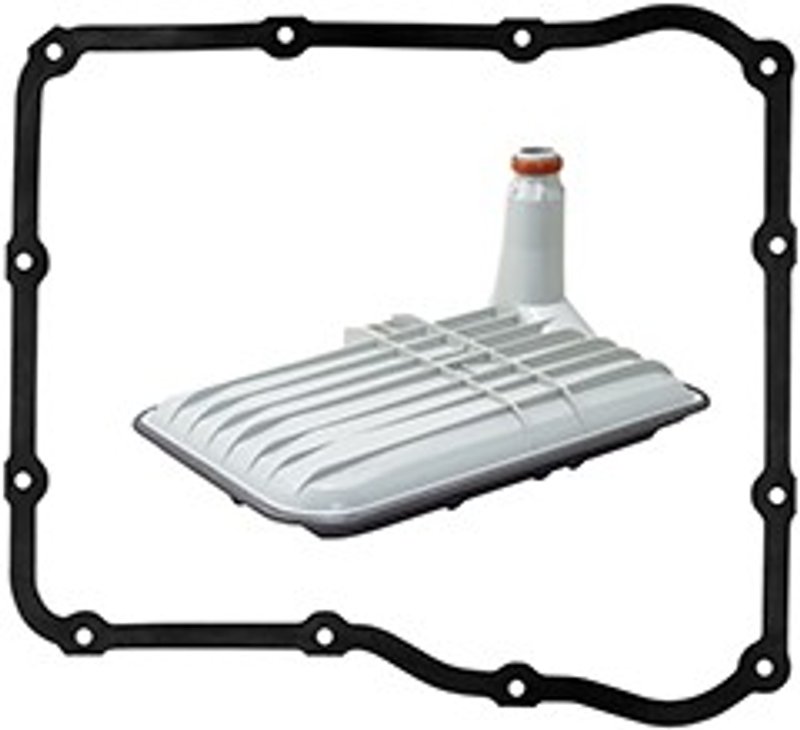

Baldwin 20030 Transmission Filter
| Brand | Baldwin 20030 |
|---|---|
| Contains | [1] Rubber Neck Seal |
| Fits | "2013 Chevrolet Silverado 2500 HD, Silverado 3500 HD; 2013 GMC Sierra 2500 HD, Sierra 3500 HD" |
| Height | 4 31/32 |
| Height (mm) | 126 |
| Length | 10 5/32 |
| Length (mm) | 258.1 |
| Notes | Pan gasket contains [12] bolt holes. |
| Pan Gasket | [1] Included |
| Replaces | General Motors Corp. 29542824 |
| Width | 7 3/32 |
| Width (mm) | 180.1 |
| Fits | Chevrolet and GMC · 7 vehicles |
Transmission oil filter. Filters transmission fluid to help keep the system clean.
Pan gasket included. Comes with a gasket for a more complete service.
Rubber neck seal. Includes a seal for a secure, reliable fit.
Baldwin 20030 Transmission Oil Filter
The Baldwin 20030 transmission oil filter is a direct-fit service part for the Allison deep pan transmission used in select 2013 Chevrolet Silverado 2500 HD and Silverado 3500 HD, as well as 2013 GMC Sierra 2500 HD and Sierra 3500 HD models. It includes a rubber neck seal and an included pan gasket to support a proper transmission service on the specified OE application.
Key Features
- Transmission oil filter for Allison deep pan applications
- Fits 2013 Chevrolet Silverado 2500 HD and Silverado 3500 HD
- Fits 2013 GMC Sierra 2500 HD and Sierra 3500 HD
- Includes [1] rubber neck seal
- Pan gasket included; gasket has [12] bolt holes
- Replaces General Motors Corp. 29542824
- Part number: 20030
Detailed Product Information
Baldwin 20030 is built for the transmission service needs of 2013 Chevrolet Silverado 2500 HD, Silverado 3500 HD, GMC Sierra 2500 HD, and Sierra 3500 HD trucks equipped with the Allison deep pan and gasket arrangement. The filter measures 4 31/32 inches high, 10 5/32 inches long, and 7 3/32 inches wide, with metric dimensions of 126 mm by 258.1 mm by 180.1 mm. This part number 20030 cross-references General Motors Corp. 29542824 for the same application.
What This Part Helps Address
- Transmission fluid contamination during service intervals
- Restricted fluid flow caused by a worn or clogged filter
- Poor sealing at the pan-to-transmission interface
- Leaks related to an aged neck seal or pan gasket
- OE replacement needs for Allison deep pan maintenance
Installation Notes
Verify the transmission pan style before ordering. This filter is listed for 2013 Chevrolet Silverado 2500 HD and Silverado 3500 HD, plus 2013 GMC Sierra 2500 HD and Sierra 3500 HD, with Allison deep pan and gasket fitment. Confirm OE number 29542824 and match the pan gasket bolt-hole pattern during installation. Clean the pan and sealing surfaces thoroughly before reassembly.
Quality Assurance
Baldwin manufactures filtration components for automotive service applications, and the 20030 is specified as a replacement for GM OE number 29542824. Use the confirmed fitment details above to verify application before installation.
| Year | Make | Model | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2013 | Chevrolet | Silverado 2500 HD | 6.0L | V8 | GAS | N/A | Allison Deep Pan (with Gasket); OE Number : 29542824 |
| 2013 | Chevrolet | Silverado 2500 HD | 6.0L | V8 | FLEX | N/A | Allison Deep Pan (with Gasket); OE Number : 29542824 |
| 2013 | Chevrolet | Silverado 2500 HD | 6.6L | V8 | DIESEL | N/A | Allison Deep Pan (with Gasket); OE Number : 29542824 |
| 2013 | Chevrolet | Silverado 3500 HD | 6.6L | V8 | DIESEL | N/A | Allison Deep Pan (with Gasket); OE Number : 29542824 |
| 2013 | GMC | Sierra 2500 HD | 6.0L | V8 | — | N/A | Allison Deep Pan (with Gasket); OE Number : 29542824 |
| 2013 | GMC | Sierra 2500 HD | 6.6L | V8 | DIESEL | N/A | Allison Deep Pan (with Gasket); OE Number : 29542824 |
| 2013 | GMC | Sierra 3500 HD | 6.6L | V8 | DIESEL | N/A | Allison Deep Pan (with Gasket); OE Number : 29542824 |
