Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

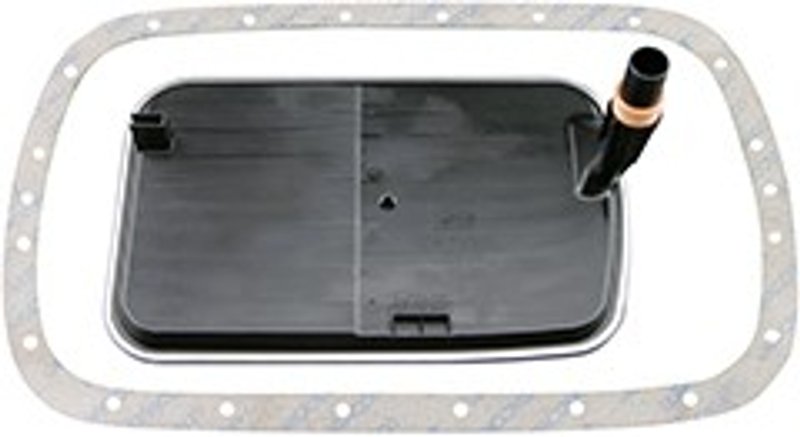

Baldwin 20052 Transmission Filter
| Brand | Baldwin 20052 |
|---|---|
| Contains | Rubber Neck Seal |
| Fits | 2002 BMW Z3 with 5L40-E Transmission (Shallow Pan) |
| Height | 4 7/8 |
| Height (mm) | 123.8 |
| Length | 11 3/8 |
| Length (mm) | 288.9 |
| Notes | Pan gasket contains [22] bolt holes. |
| Pan Gasket | [1] Included |
| Replaces | BMW (Bavarian Motor Works) 24722000 |
| Width | 7 5/32 |
| Width (mm) | 181.8 |
| Fits | Cadillac and Pontiac · 34 vehicles |
Transmission oil filter. Helps keep transmission fluid clean for smoother operation.
Rubber neck seal. Provides a secure seal at the filter connection.
Pan gasket included. Includes a gasket for a complete filter service.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Baldwin 20052 Transmission Oil Filter
Baldwin 20052 is a transmission oil filter for the 5L40-E shallow pan application used in the 2002 BMW Z3. It includes a rubber neck seal and a pan gasket with 22 bolt holes for service work on the transmission pan and filter assembly.
Key Features
- Transmission oil filter for 5L40-E shallow pan applications
- Includes rubber neck seal
- Pan gasket included
- Pan gasket contains 22 bolt holes
- Dimensions: 4 7/8 in. height, 11 3/8 in. length, 7 5/32 in. width
- Replaces BMW (Bavarian Motor Works) 24722000
Detailed Description
This Baldwin 20052 transmission oil filter is built for the 2002 BMW Z3 with 5L40-E Transmission (Shallow Pan) and is sized to match the listed dimensions for proper service fitment. The filter includes a rubber neck seal and an included pan gasket, making it a direct service part for transmission maintenance where the original BMW 24722000 reference applies. Baldwin 20052 is also listed for Cadillac SRX, Cadillac CTS, Cadillac STS, and Pontiac G8 applications with OE Number 96042545.
This part cross-references BMW (Bavarian Motor Works) 24722000 for the same application.
What It Helps Address
- Transmission fluid contamination from a worn or restricted filter
- Poor fluid flow through the transmission service circuit
- Leaks at the pan gasket sealing surface
- Seal leakage at the filter neck connection
- Routine transmission service on 5L40-E shallow pan units
Installation Notes and Tips
Verify the transmission type and pan depth before installation. This filter is listed for the 2002 BMW Z3 with 5L40-E Transmission (Shallow Pan), and the pan gasket is specified with 22 bolt holes. Clean the pan and sealing surfaces thoroughly, then confirm the rubber neck seal seats correctly during assembly.
Quality Assurance
Baldwin 20052 is a replacement transmission oil filter built to match the listed OE reference and fitment data for service applications.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2009 | Cadillac | SRX | 3.6L | V6 | N/A | OE Number : 96042545 |
| 2009 | Pontiac | G8 | 3.6L | V6 | N/A | OE Number : 96042545 |
| 2009 | Pontiac | G8 | 6.0L | V8 | N/A | OE Number : 96042545 |
| 2009 | Pontiac | G8 | 6.2L | V8 | N/A | OE Number : 96042545 |
| 2008 | Cadillac | SRX | 3.6L | V6 | N/A | OE Number : 96042545 |
| 2008 | Cadillac | SRX | 4.6L | V8 | N/A | OE Number : 96042545 |
| 2008 | Pontiac | G8 | 3.6L | V6 | N/A | OE Number : 96042545 |
| 2008 | Pontiac | G8 | 6.0L | V8 | N/A | OE Number : 96042545 |
| 2007 | Cadillac | CTS | 2.8L | V6 | N/A | OE Number : 96042545 |
| 2007 | Cadillac | CTS | 3.6L | V6 | N/A | OE Number : 96042545 |
| 2007 | Cadillac | CTS | 6.0L | V8 | N/A | OE Number : 96042545 |
| 2007 | Cadillac | SRX | 3.6L | V6 | N/A | OE Number : 96042545 |
| 2007 | Cadillac | SRX | 4.6L | V8 | N/A | OE Number : 96042545 |
| 2007 | Cadillac | STS | 3.6L | V6 | N/A | OE Number : 96042545 |
| 2007 | Cadillac | STS | 4.6L | V8 | N/A | OE Number : 96042545 |
| 2006 | Cadillac | CTS | 2.8L | V6 | N/A | OE Number : 96042545 |
| 2006 | Cadillac | CTS | 3.6L | V6 | N/A | OE Number : 96042545 |
| 2006 | Cadillac | SRX | 3.6L | V6 | N/A | OE Number : 96042545 |
| 2006 | Cadillac | SRX | 4.6L | V8 | N/A | OE Number : 96042545 |
| 2006 | Cadillac | STS | 3.6L | V6 | N/A | OE Number : 96042545 |
| 2006 | Cadillac | STS | 4.6L | V8 | N/A | OE Number : 96042545 |
| 2005 | Cadillac | CTS | 2.8L | V6 | N/A | OE Number : 96042545 |
| 2005 | Cadillac | CTS | 3.6L | V6 | N/A | OE Number : 96042545 |
| 2005 | Cadillac | CTS | 5.7L | V8 | N/A | OE Number : 96042545 |
| 2005 | Cadillac | SRX | 3.6L | V6 | N/A | OE Number : 96042545 |
| 2005 | Cadillac | SRX | 4.6L | V8 | N/A | OE Number : 96042545 |
| 2005 | Cadillac | STS | 3.6L | V6 | N/A | OE Number : 96042545 |
| 2005 | Cadillac | STS | 4.6L | V8 | N/A | OE Number : 96042545 |
| 2004 | Cadillac | CTS | 3.2L | V6 | N/A | OE Number : 96042545 |
| 2004 | Cadillac | CTS | 3.6L | V6 | N/A | OE Number : 96042545 |
| 2004 | Cadillac | CTS | 5.7L | V8 | N/A | OE Number : 96042545 |
| 2004 | Cadillac | SRX | 3.6L | V6 | N/A | OE Number : 96042545 |
| 2004 | Cadillac | SRX | 4.6L | V8 | N/A | OE Number : 96042545 |
| 2003 | Cadillac | CTS | 3.2L | V6 | N/A | OE Number : 96042545 |
