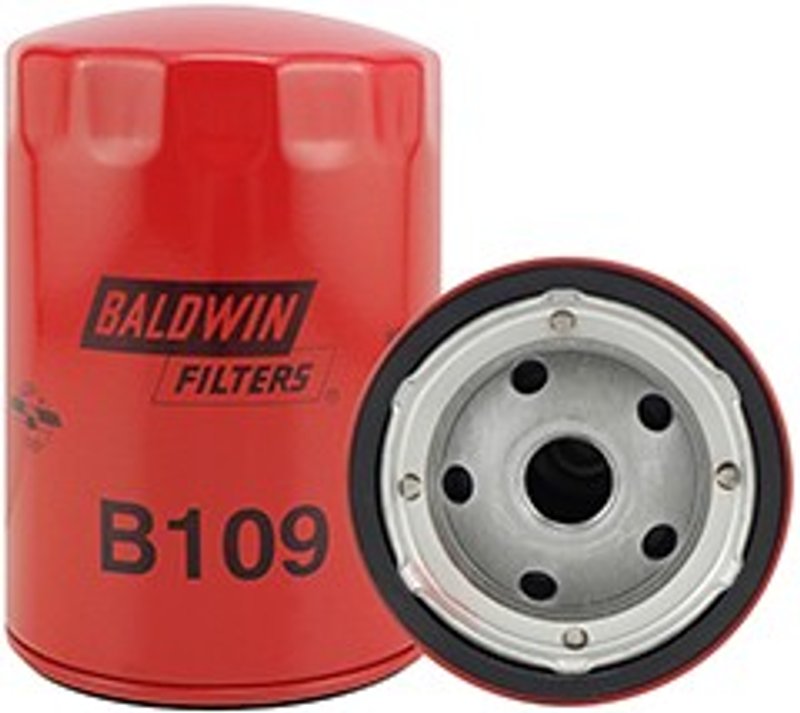

Baldwin B109 Engine Oil Filter
| Brand | Baldwin B109 |
|---|---|
| Contains | Anti-Drainback Valve;20 PSID By-Pass Valve |
| Fits | "Caterpillar, Kobelco, Mustang Equipment; GMC, Isuzu Automotive" |
| Height | 5 5/16 |
| Height (mm) | 134.9 |
| Integral Gasket | [1] Included |
| Outside Diameter 1 | 3 3/4 |
| Outside Diameter 1 (mm) | 95.3 |
| Replaces | GMC 94428931 |
| Thread | M20 x 1.5 |
| Fits | Chevrolet and Isuzu · 15 vehicles |
Anti-drainback valve. Helps keep oil in the filter to support quicker lubrication at startup.
By-pass valve. Opens at 20 PSID to maintain oil flow when the filter loads up.
Integral gasket included. Provides the sealing surface needed for installation.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Baldwin B109 Engine Oil Filter
The Baldwin B109 is a spin-on engine oil filter built for select Chevrolet, Isuzu, GMC, Caterpillar, Kobelco, and Mustang Equipment applications. It uses an anti-drainback valve and a 20 PSID bypass valve to support oil flow control during startup and under restricted-flow conditions.
Key Features
- Part number: B109
- Engine oil filter for spin-on applications
- Anti-drainback valve helps retain oil in the filter after shutdown
- 20 PSID bypass valve for pressure-managed oil delivery
- Integral gasket included
- M20 x 1.5 thread
- Height: 5 5/16 in. (134.9 mm)
- Outside diameter: 3 3/4 in. (95.3 mm)
- Replaces GMC 94428931
Detailed Description
Baldwin B109 is an engine oil filter specified for select automotive and equipment platforms, including Chevrolet Corvette, Chevrolet Chevette, and Isuzu I-Mark applications listed in the fitment data. The filter’s anti-drainback valve helps keep oil in the filter when the engine is off, while the 20 PSID bypass valve provides a pressure-relief path if the media becomes restricted. For buyers searching for a Baldwin B109 oil filter, B109 engine oil filter, or a replacement oil filter for Chevrolet Corvette and Isuzu I-Mark, this part matches the listed thread, dimensions, and application data.
This part cross-references GMC 94428931 for the same application.
What It Helps Address
- Oil filter replacement for routine engine service
- Cold-start oil drainback concerns
- Restricted oil flow caused by a loaded filter element
- Fitment needs for spin-on oil filter applications
- Replacement of the original GMC 94428931 filter reference
Installation Notes and Tips
Verify thread size, gasket sealing surface, height, and outside diameter before installation. Pre-lubricate the gasket, tighten the filter to the manufacturer’s service specification, and confirm there is no leakage after startup. For fitment-based searches, this Baldwin B109 oil filter is listed for Fits 1990-1995 Chevrolet Corvette, N/A; Fits 1981-1986 Chevrolet Chevette, N/A, Spin-on; and Fits 1981-1983 Isuzu I-Mark, N/A, Spin-on.
Quality Assurance
Baldwin filters are built for service applications that require consistent filtration, correct sealing, and application-specific fitment. This B109 oil filter is identified with an included integral gasket and the listed bypass and anti-drainback valve features.
| Year | Make | Model | Submodel | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 1995 | Chevrolet | Corvette | — | 5.7L | V8 | — | N/A | — |
| 1994 | Chevrolet | Corvette | — | 5.7L | V8 | — | N/A | — |
| 1993 | Chevrolet | Corvette | — | 5.7L | V8 | — | N/A | — |
| 1992 | Chevrolet | Corvette | — | 5.7L | V8 | — | N/A | — |
| 1991 | Chevrolet | Corvette | — | 5.7L | V8 | — | N/A | — |
| 1990 | Chevrolet | Corvette | ZR-1 | 5.7L | V8 | — | N/A | — |
| 1986 | Chevrolet | Chevette | — | 1.8L | L4 | DIESEL | N/A | Spin-on |
| 1985 | Chevrolet | Chevette | — | 1.8L | L4 | DIESEL | N/A | Spin-on |
| 1984 | Chevrolet | Chevette | — | 1.8L | L4 | DIESEL | N/A | Spin-on |
| 1983 | Chevrolet | Chevette | — | 1.8L | L4 | DIESEL | N/A | Spin-on |
| 1983 | Isuzu | I-Mark | — | 1.8L | L4 | DIESEL | N/A | Spin-on |
| 1982 | Chevrolet | Chevette | — | 1.8L | L4 | DIESEL | N/A | Spin-on |
| 1982 | Isuzu | I-Mark | — | 1.8L | L4 | DIESEL | N/A | Spin-on |
| 1981 | Chevrolet | Chevette | — | 1.8L | L4 | DIESEL | N/A | Spin-on |
| 1981 | Isuzu | I-Mark | — | 1.8L | L4 | DIESEL | N/A | Spin-on |
