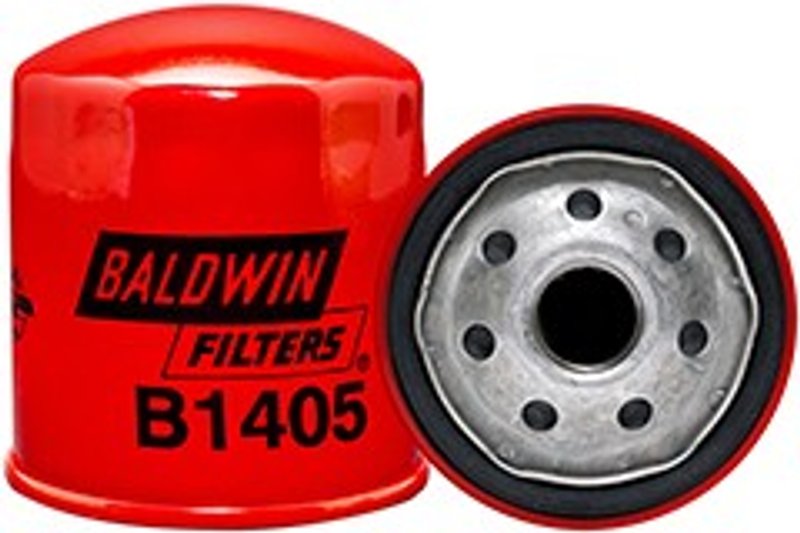

Baldwin B1405 Engine Oil Filter

Overview of Baldwin B1405 Engine Oil Filter

The Baldwin B1405 engine oil filter is designed specifically for Toyota and Lexus vehicles, including models such as the Camry, Tacoma, and RX300. This filter ensures reliable engine protection by maintaining clean oil flow and preventing contaminants from circulating through the engine.

• Includes anti-drainback valve to prevent dry starts
• Equipped with a 20 psid by-pass valve for consistent oil flow
• Integral gasket ensures a secure, leak-free seal
• Dimensions: 3 1/2 inches (88.9 mm) height, 3 1/32 inches (77 mm) outside diameter
• Thread specification: 4-mar for proper fitment
• Replaces Toyota part number 90915-20002

Technical Details and Compatibility

The Baldwin B1405 engine oil filter is engineered to meet the specifications required by Toyota and Lexus vehicles. It features an anti-drainback valve that prevents oil from draining out of the filter when the engine is off, reducing wear during startup. The 20 psid by-pass valve allows oil to bypass the filter element if it becomes clogged, ensuring continuous oil flow to the engine. The integral gasket provides a reliable seal to prevent leaks. This filter fits a wide range of Toyota and Lexus models, including the 4Runner, Avalon, Camry, Celica, ES250, ES300, GS300, GS400, GS430, GX470, IS300, LS400, LS430, LX450, LX470, Pickup, Previa, RX300, SC300, SC400, Sienna, Solara, Supra, T100, Tacoma, Tundra, and Van.

Applications and Problem Solving

• Prevents engine damage caused by contaminated oil
• Reduces wear during cold starts with anti-drainback valve
• Maintains oil pressure with 20 psid by-pass valve
• Ensures leak-free operation with integral gasket
• Compatible replacement for Toyota 90915-20002 oil filter

Installation Notes and Tips

When installing the Baldwin B1405 engine oil filter, ensure the engine is cool to avoid burns. Clean the mounting surface before applying the filter. Lubricate the integral gasket with clean engine oil to improve sealing and ease installation. Tighten the filter according to manufacturer torque specifications to prevent leaks or damage. Always replace the oil filter during oil changes for optimal engine performance.

Quality Assurance and Warranty

Baldwin engine oil filters are manufactured to meet industry standards for filtration efficiency and durability. The B1405 model is designed to provide consistent performance and protection for Toyota and Lexus engines. While specific warranty details may vary, Baldwin products typically come with a limited warranty against defects in materials and workmanship. Consult Baldwin or your parts provider for exact warranty terms.
