Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

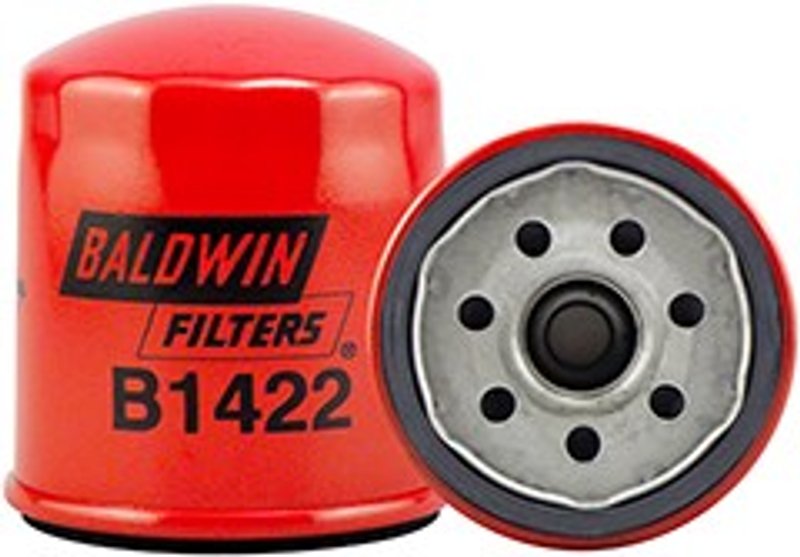

Baldwin B1422 Engine Oil Filter
| Brand | Baldwin B1422 |
|---|---|
| Contains | Anti-Drainback Valve;20 PSID By-Pass Valve |
| Fits | Acura Automotive |
| Height | 3 1/2 |
| Height (mm) | 88.9 |
| Integral Gasket | {G449-B} |
| Outside Diameter 1 | 3 1/32 |
| Outside Diameter 1 (mm) | 77 |
| Replaces | "Honda 15400-PL2-004, 15400-PL2-005, 15400-PL2-305" |
| Thread | M22 x 1.5 |
| Fits | Acura · 35 vehicles |
Anti-drainback valve. Helps keep oil in the filter for quicker lubrication at startup.
By-pass valve included. Maintains oil flow when the filter reaches 20 PSID.
Integral gasket. Provides a secure seal for dependable filtration.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Baldwin B1422 Engine Oil Filter for Acura
The Baldwin B1422 engine oil filter is built for Acura applications that call for a spin-on filter with an M22 x 1.5 thread and a 3 1/2-inch height. It includes an anti-drainback valve and a 20 PSID by-pass valve to support oil flow control during start-up and under restricted-flow conditions.
Key Features
- Part number: Baldwin B1422
- Engine oil filter for Acura Automotive applications
- Anti-drainback valve helps retain oil in the filter after shutdown
- 20 PSID by-pass valve for controlled oil delivery when flow is restricted
- Thread size: M22 x 1.5
- Height: 3 1/2 in. (88.9 mm)
- Outside diameter: 3 31/32 in. (77 mm)
- Integral gasket: G449-B
- Replaces Honda 15400-PL2-004, 15400-PL2-005, and 15400-PL2-305
Detailed Description
The Baldwin B1422 is an engine oil filter for Acura NSX, Acura TL, and Acura Legend applications listed in the fitment data. It is sized with a 3 1/2-inch overall height, 3 31/32-inch outside diameter, and M22 x 1.5 thread, making it a direct-match service part for the specified vehicles. The anti-drainback valve helps keep oil in the filter when the engine is off, while the 20 PSID by-pass valve supports oil circulation if the filter media becomes restricted. Baldwin B1422 is a practical OE-style replacement for Acura owners servicing the lubrication system on these models.
This part cross-references Honda OE numbers 15400-PL2-004 and 15400-PL2-305 for the same application.
Used For These Service Issues
- Replacing a worn or clogged oil filter during routine maintenance
- Addressing oil pressure concerns related to restricted filter flow
- Reducing dry-start conditions after the engine has been parked
- Servicing Acura NSX, TL, and Legend oil filtration requirements
Installation Notes and Tips
Verify the thread size, gasket style, and overall dimensions before installation. Confirm the filter mounts to the correct Acura engine application and inspect the sealing surface for debris before fitting the new gasket. Follow the vehicle manufacturer’s oil service procedure and torque guidance for the filter housing or mounting surface.
Quality Assurance
Baldwin manufactures filtration products for automotive service applications, and the B1422 is built to match the listed dimensions and replacement references for Acura fitments. Confirmed fitment includes 1988-1995 Acura Legend, 1991-2000 Acura NSX, 1996-1997 Acura TL, and 1998 Acura TL, with 2001-2005 Acura NSX also listed by OE number 15400-PL2-004.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2005 | Acura | NSX | 3.0L | V6 | N/A | OE Number : 15400-PL2-004 |
| 2005 | Acura | NSX | 3.2L | V6 | N/A | OE Number : 15400-PL2-004 |
| 2004 | Acura | NSX | 3.0L | V6 | N/A | OE Number : 15400-PL2-004 |
| 2004 | Acura | NSX | 3.2L | V6 | N/A | OE Number : 15400-PL2-004 |
| 2003 | Acura | NSX | 3.0L | V6 | N/A | OE Number : 15400-PL2-004 |
| 2003 | Acura | NSX | 3.2L | V6 | N/A | OE Number : 15400-PL2-004 |
| 2002 | Acura | NSX | 3.0L | V6 | N/A | OE Number : 15400-PL2-004 |
| 2002 | Acura | NSX | 3.2L | V6 | N/A | OE Number : 15400-PL2-004 |
| 2001 | Acura | NSX | 3.0L | V6 | N/A | OE Number : 15400-PL2-004 |
| 2001 | Acura | NSX | 3.2L | V6 | N/A | OE Number : 15400-PL2-004 |
| 2000 | Acura | NSX | 3.0L | V6 | N/A | — |
| 2000 | Acura | NSX | 3.2L | V6 | N/A | — |
| 1999 | Acura | NSX | 3.0L | V6 | N/A | — |
| 1999 | Acura | NSX | 3.2L | V6 | N/A | — |
| 1998 | Acura | NSX | 3.0L | V6 | N/A | — |
| 1998 | Acura | NSX | 3.2L | V6 | N/A | — |
| 1998 | Acura | TL | 3.2L | V6 | N/A | OE Number : 15400-PL2-305 |
| 1997 | Acura | NSX | 3.0L | V6 | N/A | — |
| 1997 | Acura | NSX | 3.2L | V6 | N/A | — |
| 1997 | Acura | TL | 3.2L | V6 | N/A | — |
| 1996 | Acura | NSX | 3.0L | V6 | N/A | — |
| 1996 | Acura | TL | 3.2L | V6 | N/A | — |
| 1995 | Acura | Legend | 3.2L | V6 | N/A | — |
| 1995 | Acura | NSX | 3.0L | V6 | N/A | — |
| 1994 | Acura | Legend | 3.2L | V6 | N/A | — |
| 1994 | Acura | NSX | 3.0L | V6 | N/A | — |
| 1993 | Acura | Legend | 3.2L | V6 | N/A | — |
| 1993 | Acura | NSX | 3.0L | V6 | N/A | — |
| 1992 | Acura | Legend | 3.2L | V6 | N/A | — |
| 1992 | Acura | NSX | 3.0L | V6 | N/A | — |
| 1991 | Acura | Legend | 3.2L | V6 | N/A | — |
| 1991 | Acura | NSX | 3.0L | V6 | N/A | — |
| 1990 | Acura | Legend | 2.7L | V6 | N/A | — |
| 1989 | Acura | Legend | 2.7L | V6 | N/A | — |
| 1988 | Acura | Legend | 2.7L | V6 | N/A | — |
| No rows match your filter. | ||||||
