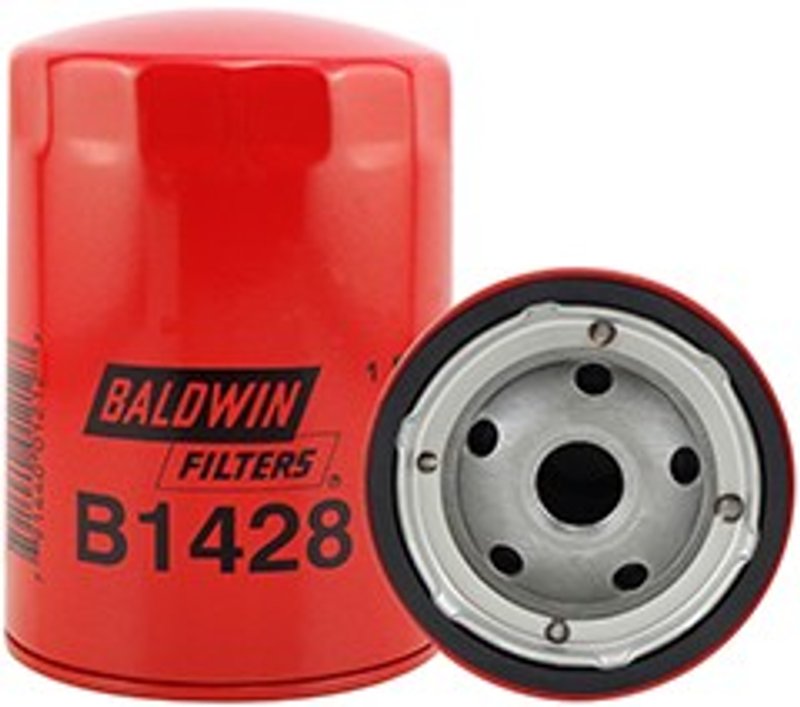

Baldwin B1428 Engine Oil Filter

Baldwin B1428 Engine Oil Filter

The Baldwin B1428 is an engine oil filter for Chevrolet, GM automotive, and light-duty truck applications that call for PF1218-style fitment. It includes an anti-drainback valve and an integral gasket to support clean oil retention at startup and a secure sealing surface during service.

Key Features

• Part number: B1428
• Engine oil filter for Chevrolet, GMC, and related GM applications
• Contains an anti-drainback valve
• Integral gasket included
• Thread size: 13/16
• Outside diameter: 3 11/16 in. (93.7 mm)
• Height: 5 11/32 in. (135.7 mm)
• 16 threads per inch
• Replaces GMC 25160561

Detailed Description

Baldwin B1428 is built for GM oil filter applications across a wide range of Chevrolet and GMC trucks, vans, SUVs, and classic full-size models. It is listed for vehicles such as the Chevrolet Express, Tahoe, C/K-series trucks, Suburban, Blazer, and GMC Savana, Yukon, and C/K-series platforms, with fitment spanning 1977 through 2004 depending on model and configuration. This part cross-references GMC 25160561 for the same application. The B1428 is also related to Baldwin B6, which is the version without an anti-drainback valve.

What It Helps Address

• Oil drain-back after shutdown
• Loss of oil pressure at startup
• Sealing issues at the filter base
• Routine oil service on GM V8 and light-duty truck applications
• Replacement of PF1218-style filters on supported vehicles

Installation Notes and Tips

Verify thread size, gasket sealing surface, and overall filter dimensions before installation. Confirm the exact year, engine, and OE reference for your Chevrolet or GMC application, especially on 1999 and 2002 model-year vehicles where notes vary by build date or OE number. Always lubricate the gasket before tightening and follow the vehicle manufacturer’s service procedure for final torque.

Quality Assurance

Baldwin manufactures filtration products for automotive and heavy-duty service applications, with part-specific construction details listed for fitment and sealing. Use the OE reference and vehicle notes above to confirm the correct application before service.
