Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

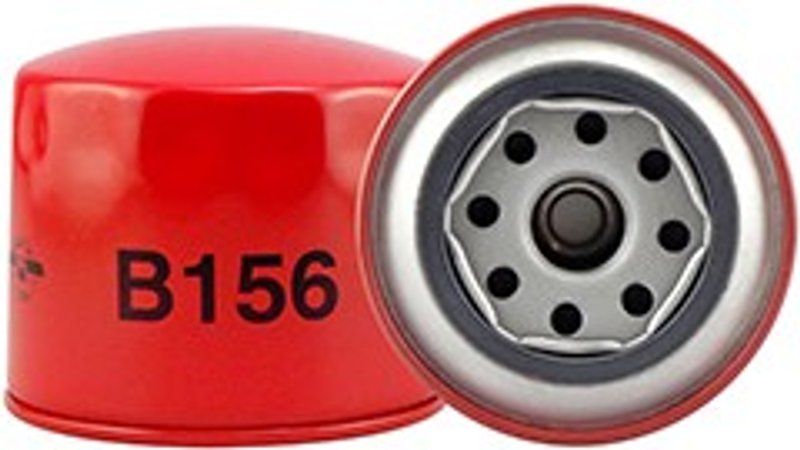

Baldwin B156 Engine Oil Filter
| Brand | Baldwin B156 |
|---|---|
| Contains | Anti-Drainback Valve;20 PSID By-Pass Valve |
| Fits | Honda Automotive |
| Height | 3 1/4 |
| Height (mm) | 82.6 |
| Integral Gasket | {G324-A} |
| Outside Diameter 1 | 3 11/16 |
| Outside Diameter 1 (mm) | 93.7 |
| Replaces | Honda 15400-689-004 |
| Thread | M22 x 1.5 |
| Fits | Acura and Honda · 27 vehicles |
Anti-drainback valve. Helps keep oil in the filter for quicker pressure on startup.
By-pass valve. Opens at 20 PSID to maintain oil flow when needed.
Integral gasket. Includes gasket {G324-A} for a secure seal.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Baldwin B156 Engine Oil Filter for Honda
The Baldwin B156 engine oil filter is an OE-style replacement for select Honda automotive applications, including Acura Integra and Honda Civic, Accord, and Prelude models from the late 1970s through the 1980s. It is built with an anti-drainback valve and a 20 PSID by-pass valve to support oil flow control during cold starts and restricted-flow conditions.
Key Features
- Engine oil filter for Honda automotive applications
- Anti-drainback valve helps retain oil in the filter after shutdown
- 20 PSID by-pass valve for controlled oil delivery when flow is restricted
- Thread size: M22 x 1.5
- Outside diameter: 3 11/16 in. (93.7 mm)
- Height: 3 1/4 in. (82.6 mm)
- Integral gasket: G324-A
- Replaces Honda 15400-689-004
Detailed Description
Baldwin B156 is an engine oil filter built for direct replacement use on compatible Honda and Acura vehicles. It fits 1986-1987 Acura Integra, 1980-1987 Honda Civic, 1979-1983 Honda Accord, and 1979-1982 Honda Prelude. The B156 part number is also a useful reference when cross-checking service parts for these older Honda applications. This Baldwin B156 oil filter uses an anti-drainback valve to help keep the filter full between starts, while the 20 PSID by-pass valve supports oil circulation if the filter media becomes restricted.
What It Helps Address
- Oil filter replacement for routine maintenance
- Loss of oil retention after engine shutdown
- Restricted oil flow during cold starts
- Service needs on older Honda Civic, Accord, Prelude, and Acura Integra engines
- Replacement of Honda 15400-689-004
Installation Notes and Tips
Verify thread size, gasket style, and overall dimensions before installation. The Baldwin B156 uses M22 x 1.5 threads and an integral gasket identified as G324-A. Confirm the vehicle application against the listed fitment before ordering, especially when servicing a Honda Civic, Accord, Prelude, or Acura Integra. Clean the mounting surface and follow the manufacturer’s oil filter service procedure.
Quality Assurance
Baldwin manufactures filtration products for automotive service applications, and the B156 is specified with key operating features and dimensional data for accurate replacement selection. This part cross-references Honda (e.g., 15400-689-004) for the same application.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 1987 | Acura | Integra | 1.6L | L4 | N/A | — |
| 1987 | Honda | Civic | 1.3L | L4 | N/A | — |
| 1987 | Honda | Civic | 1.5L | L4 | N/A | — |
| 1986 | Acura | Integra | 1.6L | L4 | N/A | — |
| 1986 | Honda | Civic | 1.3L | L4 | N/A | — |
| 1986 | Honda | Civic | 1.5L | L4 | N/A | — |
| 1985 | Honda | Civic | 1.3L | L4 | N/A | — |
| 1985 | Honda | Civic | 1.5L | L4 | N/A | — |
| 1984 | Honda | Civic | 1.3L | L4 | N/A | — |
| 1984 | Honda | Civic | 1.5L | L4 | N/A | — |
| 1983 | Honda | Accord | 1.8L | L4 | N/A | — |
| 1983 | Honda | Civic | 1.3L | L4 | N/A | — |
| 1983 | Honda | Civic | 1.5L | L4 | N/A | — |
| 1982 | Honda | Accord | 1.8L | L4 | N/A | — |
| 1982 | Honda | Civic | 1.3L | L4 | N/A | — |
| 1982 | Honda | Civic | 1.5L | L4 | N/A | — |
| 1982 | Honda | Prelude | 1.8L | L4 | N/A | — |
| 1981 | Honda | Accord | 1.8L | L4 | N/A | — |
| 1981 | Honda | Civic | 1.3L | L4 | N/A | — |
| 1981 | Honda | Civic | 1.5L | L4 | N/A | — |
| 1981 | Honda | Prelude | 1.8L | L4 | N/A | — |
| 1980 | Honda | Accord | 1.8L | L4 | N/A | — |
| 1980 | Honda | Civic | 1.3L | L4 | N/A | — |
| 1980 | Honda | Civic | 1.5L | L4 | N/A | — |
| 1980 | Honda | Prelude | 1.8L | L4 | N/A | — |
| 1979 | Honda | Accord | 1.8L | L4 | N/A | — |
| 1979 | Honda | Prelude | 1.8L | L4 | N/A | — |
