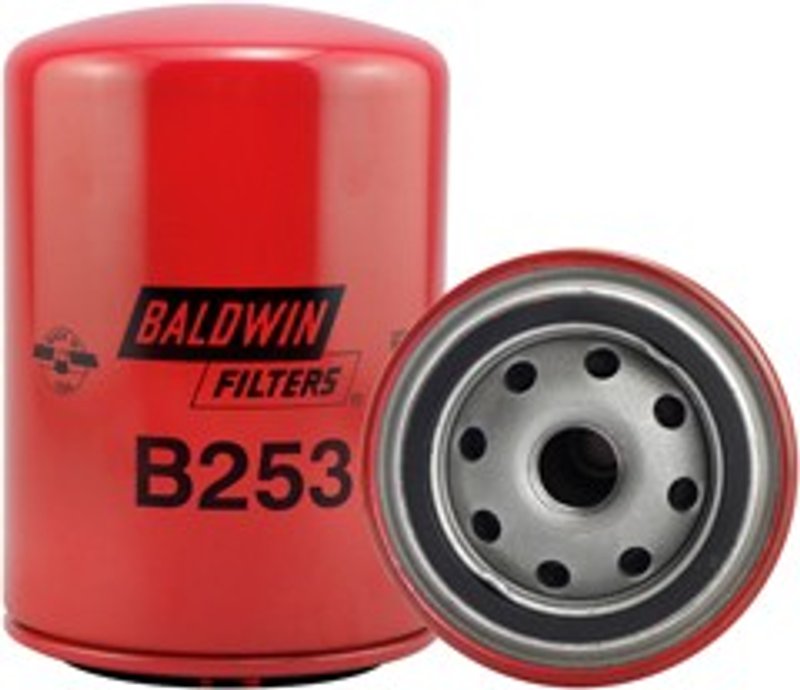

Baldwin B253 Engine Oil Filter

Overview of Baldwin B253 Engine Oil Filter

The Baldwin B253 engine oil filter is designed for precision filtration in high-performance vehicles such as Ferrari and Porsche models. Engineered to meet the specific needs of automotive enthusiasts and professionals, this filter ensures reliable oil flow and protection under demanding conditions.

• Includes anti-drainback valve to prevent dry starts
• Equipped with a 20 psid by-pass valve for consistent oil flow
• Features a standpipe for enhanced filtration efficiency
• Integral gasket (G401) for secure sealing
• Compatible with Ferrari and Porsche vehicles including 911, Mondial, Mondial 3.2, and Mondial 8
• Replaces Ferrari 45384000, Lancia 2220425, and Porsche 901-107-203-02 filters
• Height: 5 15/32 inches (138.9 mm); Outside diameter: 3 11/16 inches (93.7 mm)
• Thread size: 4-mar

Technical Details and Compatibility

The Baldwin B253 engine oil filter is specifically engineered to fit select Ferrari and Porsche automotive models, including the iconic Porsche 911 and Ferrari Mondial series. Its integral gasket (G401) ensures a tight seal to prevent leaks, while the anti-drainback valve maintains oil pressure during engine startup. The 20 psid by-pass valve allows oil to bypass the filter element if it becomes clogged, protecting the engine from oil starvation. The standpipe design enhances filtration by directing oil flow efficiently through the filter media.

Applications and Problem Solving

• Prevents engine wear caused by contaminated oil
• Reduces risk of oil starvation during cold starts with anti-drainback valve
• Maintains consistent oil pressure with 20 psid by-pass valve
• Compatible with racing applications requiring reliable filtration
• Replaces OEM filters for Ferrari 45384000 and Porsche 901-107-203-02

Installation Notes and Tips

When installing the Baldwin B253 oil filter, ensure the gasket surface is clean and free of debris. Hand-tighten the filter to the manufacturer’s recommended torque specifications to avoid damage to the integral gasket. This filter can be used with the OB40079 base for certain applications. It is suitable for both street and racing use, but always verify compatibility with your specific vehicle model and engine configuration.

Quality Assurance and Warranty

Baldwin filters are manufactured to meet strict quality standards for durability and performance. The B253 oil filter undergoes rigorous testing to ensure it meets OEM specifications for fit and filtration efficiency. While specific warranty details are not provided, Baldwin products are known for consistent quality and reliability in automotive filtration.
