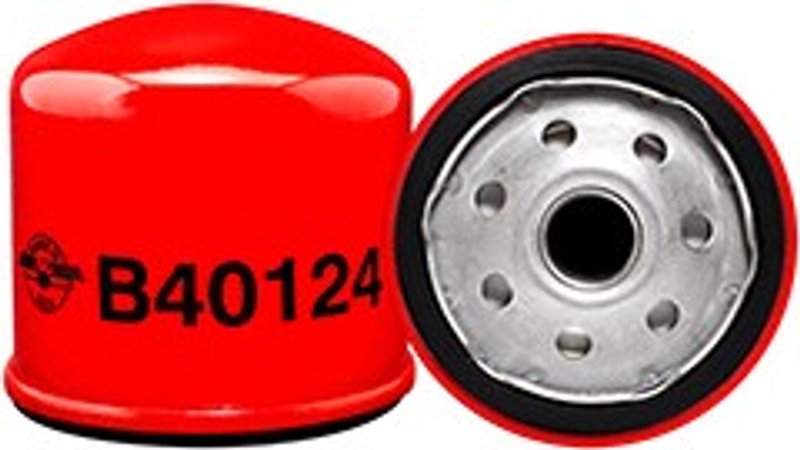

Baldwin B40124 Engine Oil Filter

Overview of Baldwin B40124 Engine Oil Filter

The Baldwin B40124 engine oil filter is designed for reliable oil filtration in select Chevrolet and Cadillac vehicles. Engineered to meet OEM specifications, this filter supports optimal engine performance and longevity for models like the Chevrolet Astra and Volt.

• Compatible with Chevrolet Astra, Volt, and Cadillac ELR models
• Height: 2 27/32 inches (72.2 mm)
• Outside diameter: 3 1/32 inches (77 mm)
• Thread size: M18 x 1.5
• Includes integral gasket for secure sealing
• Replaces ACDelco PF65, GM 55352643 and 93178952, WIX 57143

Technical Details and Specifications

The Baldwin B40124 oil filter features a height of 2 27/32 inches (72.2 mm) and an outside diameter of 3 1/32 inches (77 mm), making it a precise fit for the specified vehicle models. The M18 x 1.5 thread ensures compatibility with the engine’s mounting system. An integral gasket is included to provide a reliable seal, preventing oil leaks and maintaining system pressure. This filter is a direct replacement for several OEM and aftermarket part numbers, including ACDelco PF65 and General Motors part numbers 55352643 and 93178952, as well as WIX 57143.

Compatible Vehicles and Applications

This Baldwin engine oil filter is compatible with the following vehicles:

• Chevrolet Astra
• Chevrolet Volt
• Cadillac ELR

It is designed to meet the filtration requirements of these models, ensuring clean oil circulation and engine protection.

Common Issues Addressed by Baldwin B40124

• Prevents engine wear caused by contaminants in the oil
• Reduces risk of oil leaks with included integral gasket
• Maintains proper oil pressure for engine efficiency
• Replaces worn or clogged OEM filters to restore filtration performance
• Helps avoid engine damage due to poor oil filtration

Installation Notes and Tips

• Ensure engine is cool before removing the old oil filter
• Apply a thin layer of clean engine oil to the gasket before installation
• Thread the filter by hand to avoid cross-threading
• Tighten according to vehicle manufacturer torque specifications
• Check for leaks after installation and engine start-up

Quality Assurance and Warranty

Baldwin filters are manufactured to meet industry standards for filtration efficiency and durability. The B40124 is built to provide consistent performance under normal operating conditions. Warranty coverage details should be confirmed with the point of purchase or Baldwin directly, as they may vary by region and distributor.
