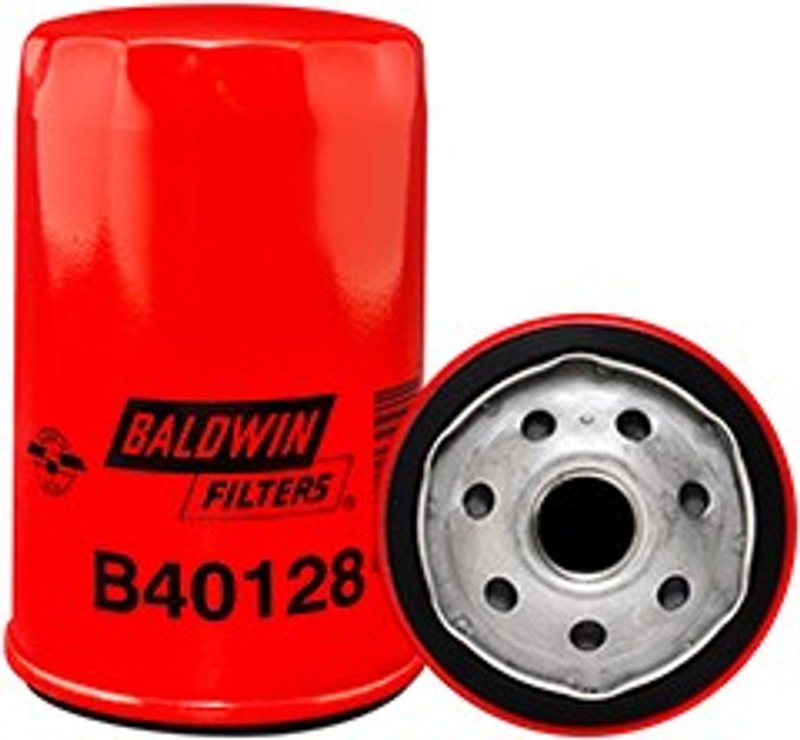

Baldwin B40128 Engine Oil Filter

Overview of Baldwin B40128 Engine Oil Filter

The Baldwin B40128 engine oil filter is designed specifically for the 2005-06 Jeep Liberty equipped with the 2.8L turbo diesel engine. This filter ensures proper engine oil filtration with integrated features that support engine longevity and performance.

• Includes anti-drainback valve to prevent oil starvation during startup
• Equipped with a 30 psid by-pass valve for continuous oil flow under high pressure
• Features a front end check valve to maintain oil pressure
• Integral gasket included for secure and leak-free installation
• Dimensions: 4 27/32 inches height and 2 29/32 inches outside diameter
• Thread specification: 4-mar for precise fitment
• Replaces Chrysler part number 5003558AA

Detailed Product Description

The Baldwin B40128 engine oil filter is engineered to meet the filtration requirements of the 2005-06 Jeep Liberty with the 2.8L turbo diesel engine. Its anti-drainback valve prevents oil from draining out of the filter when the engine is off, reducing wear during cold starts. The 30 psid by-pass valve ensures that oil continues to circulate even if the filter media becomes clogged, protecting the engine from oil starvation. Additionally, the front end check valve maintains consistent oil pressure for optimal engine performance. The filter’s integral gasket provides a reliable seal to prevent leaks, and its 4-mar thread ensures compatibility with the specified Jeep Liberty engine. With a height of 4 27/32 inches (123 mm) and an outside diameter of 2 29/32 inches (73.8 mm), this filter fits precisely in the designated housing.

Compatible Vehicles and Applications

• Compatible with 2005-06 Jeep Liberty models equipped with the 2.8L turbo diesel engine
• Replaces Chrysler OEM part number 5003558AA

Common Issues Addressed by Baldwin B40128

• Prevents oil starvation during engine startup with anti-drainback valve
• Maintains oil flow under high pressure with 30 psid by-pass valve
• Ensures consistent oil pressure via front end check valve
• Reduces risk of oil leaks with integral gasket
• Protects engine components from contaminants and debris

Installation Notes and Tips

• Ensure engine is cool before removing the old oil filter
• Lubricate the integral gasket with clean engine oil before installation
• Hand-tighten the filter until the gasket contacts the mounting surface, then tighten an additional 3/4 turn
• Check for leaks after installation and engine startup
• Dispose of the used filter according to local regulations

Quality Assurance and Warranty

Baldwin filters are manufactured to meet strict quality standards for filtration efficiency and durability. The B40128 engine oil filter undergoes rigorous testing to ensure reliable performance in diesel engine applications. While specific warranty details may vary, Baldwin typically offers coverage against defects in materials and workmanship. Refer to Baldwin’s official documentation for complete warranty information.
