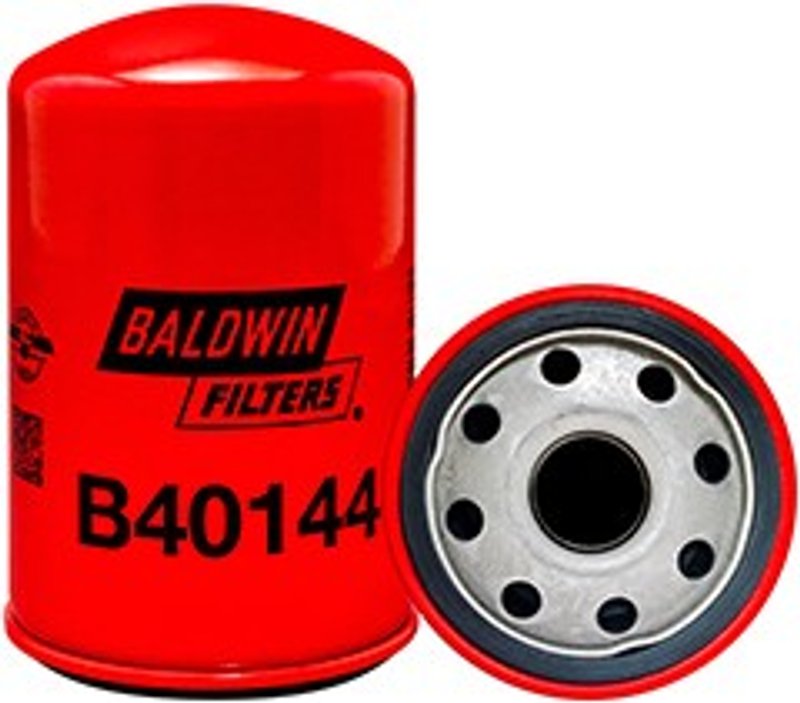

Baldwin B40144 Engine Oil Filter

Reliable Engine Oil Filter for GM Vehicles

The Baldwin B40144 engine oil filter is designed to provide dependable filtration for select General Motors vehicles. Engineered to meet OEM specifications, this filter supports optimal engine performance and longevity in models like the Chevrolet Camaro and GMC Sierra 1500.

• Includes one attached gasket for secure sealing
• Equipped with an anti-drainback valve to prevent dry starts
• Features a 40 psid by-pass valve for consistent oil flow
• Compatible with General Motors automotive applications
• Dimensions: 4.875 inches height, 3.125 inches outside diameter
• Thread size: M22 x 1.5-6h for precise fitment
• Replaces GM part number 12693541 and ACDelco UPF63R

Product Details and Specifications

The Baldwin B40144 engine oil filter is engineered with an attached gasket to ensure a tight seal and prevent leaks during operation. It contains an anti-drainback valve that maintains oil in the filter when the engine is off, reducing wear during startup. The 40 psid by-pass valve allows oil to bypass the filter element under high pressure conditions, ensuring continuous lubrication. With a height of 4.875 inches (123.7 mm) and an outside diameter of 3.125 inches (79 mm), this filter fits a range of GM vehicles. The M22 x 1.5-6h thread ensures compatibility with factory mounting points. This filter replaces GM part number 12693541 and ACDelco UPF63R, making it a direct replacement for maintenance and repair.

Compatible GM Makes and Models

This Baldwin engine oil filter is compatible with several General Motors vehicles, including Buick Regal Sportback, Cadillac CT6, XT5, and XT6, Chevrolet Acadia, Blazer, Camaro, and GMC Sierra 1500. Using the B40144 filter helps maintain proper engine oil filtration and supports engine health in these specific models.

Common Applications and Maintenance Benefits

• Prevents engine wear caused by contaminants in the oil
• Reduces risk of oil starvation during cold starts with anti-drainback valve
• Maintains oil flow under high pressure with by-pass valve
• Ensures proper sealing to avoid oil leaks
• Supports engine longevity in GM vehicles

Installation Notes and Tips

When installing the Baldwin B40144 oil filter, ensure the attached gasket seats properly to prevent leaks. Verify the thread size matches the engine mount (M22 x 1.5-6h). It is recommended to replace the oil filter during every oil change interval for the specified GM models. Dispose of the used filter according to local regulations.

Quality Assurance and Warranty

Baldwin filters are manufactured to meet or exceed OEM standards for filtration and durability. The B40144 engine oil filter undergoes rigorous quality control to ensure reliable performance. Warranty coverage details should be confirmed with the distributor or manufacturer.
