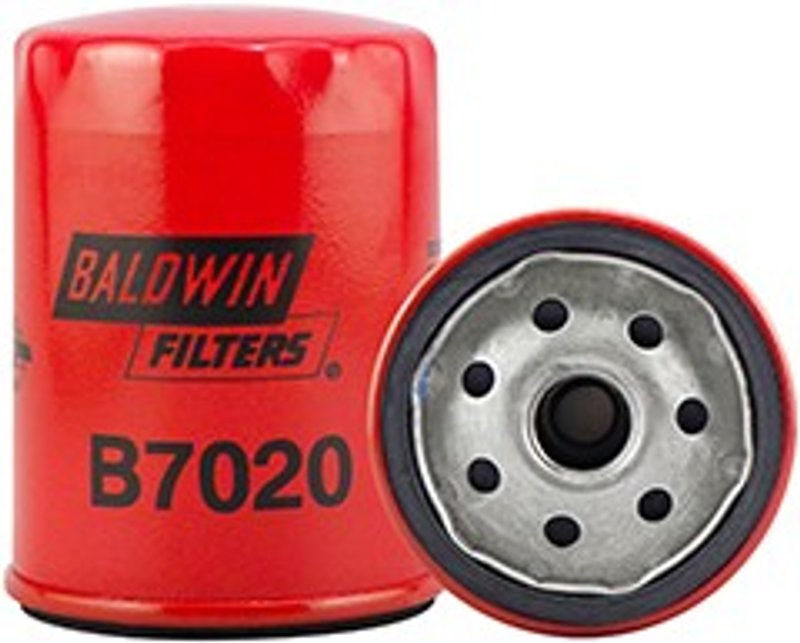

Baldwin B7020 Engine Oil Filter

Baldwin B7020 Oil Filter for Toyota and Lexus

The Baldwin B7020 engine oil filter is built for select Toyota and Lexus applications that use the OE-style spin-on filter design. It includes an anti-drainback valve and a 14 PSID by-pass valve to support oil flow control during cold starts and restricted-flow conditions.

Key Features

• Engine oil filter for select Toyota, Lexus, and light-duty truck applications
• Anti-drainback valve helps retain oil in the filter after shutdown
• 14 PSID by-pass valve for controlled oil delivery when flow is restricted
• Integral gasket included for proper sealing
• Thread size: 3/4-16
• Outside diameter: 3 in. (76.2 mm)
• Height: 4 3/32 in. (104 mm)

Detailed Description

The Baldwin B7020 is an engine oil filter designed for OE-number-matched applications across Toyota Tacoma, Toyota Tundra, Toyota 4Runner, Toyota FJ Cruiser, Toyota Sequoia, Toyota Land Cruiser, and select Lexus models including SC430, GS430, GX470, LS430, and LX470. Baldwin B7020 specifications include a 3/4-16 thread, 3-inch outside diameter, and 4 3/32-inch height, making it a direct-fit style service part for the listed vehicles. This part cross-references OE number 90915-YZZD3 / 90915YZZD3 for the same application.

What It Helps Address

• Oil filtration service on Toyota Tacoma and Toyota Tundra engines
• Routine maintenance for Toyota 4Runner, FJ Cruiser, Sequoia, and Land Cruiser models
• Replacement needs on Lexus SC430, GS430, GX470, LS430, and LX470 applications
• Oil drain-back after shutdown that can affect startup lubrication
• Restricted oil flow conditions that require by-pass valve operation

Installation Notes and Tips

Verify the OE number and filter dimensions before installation. Confirm the gasket seats evenly on the mounting surface, and tighten the filter according to the vehicle service procedure. This filter is listed for 2012-2015 Toyota Tacoma, 2011-2013 Toyota Tundra, 2005-2011 Toyota Tacoma, 2005-2010 Lexus SC430, 2002-2003 Lexus SC430, 2004-2010 Toyota Tundra, 2001 Toyota Tundra, 2003-2009 Toyota 4Runner, 2007-2009 Toyota FJ Cruiser, 2001-2009 Toyota Sequoia, 2005-2007 Lexus GS430, 1993-2007 Toyota Land Cruiser, 2005-2006 Lexus GX470, 2005-2006 Lexus LS430, 2005-2006 Lexus LX470, 2003-2004 Lexus GX470, 2004 Lexus SC430, 2002-2003 Toyota Tundra, and 2000 Toyota Tundra.

Quality Assurance

Baldwin manufactures filtration products for service applications that require OE-style fit and specified valve settings. The B7020 is built to the listed dimensions and features for the confirmed Toyota and Lexus fitments above.
