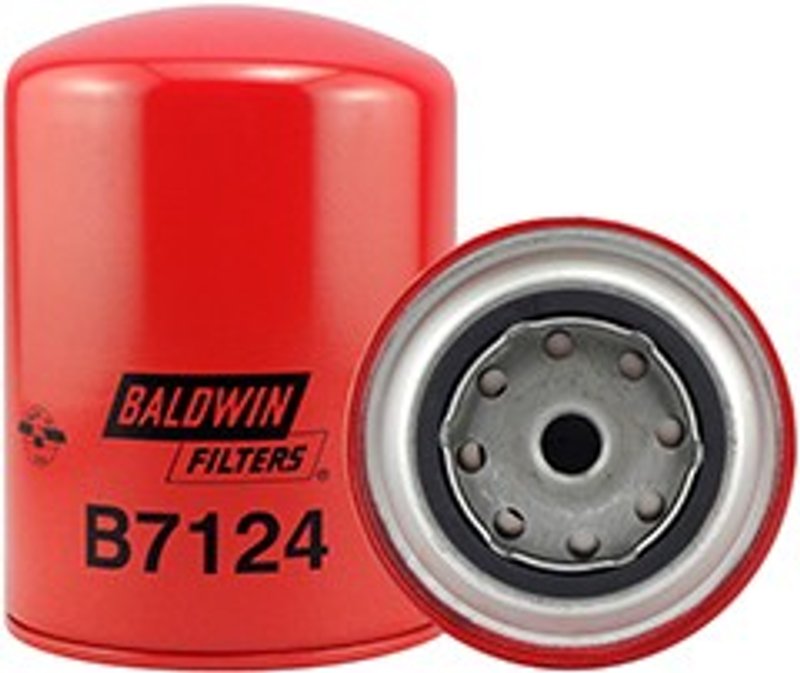

Baldwin B7124 Engine Oil Filter - Bypass

Reliable Engine Oil Filter for GMC, Hino, and Isuzu Trucks

The Baldwin B7124 engine oil filter is designed specifically for use with GMC, Hino, and Isuzu trucks. Engineered to meet the filtration needs of heavy-duty vehicles, this filter helps maintain engine performance and longevity by effectively removing contaminants from the oil.

• Compatible with GMC, Hino, and Isuzu truck models
• Height: 5 7/8 inches (149.2 mm)
• Outside diameter: 4 1/4 inches (108 mm)
• Thread size: 8-may
• Integral gasket included for secure sealing
• Replaces OEM part numbers GMC 94054123, Hino 15607-1860, Isuzu 1-13240-089-0

Technical Specifications and Design Details

The Baldwin B7124 oil filter features a height of 5 7/8 inches (149.2 mm) and an outside diameter of 4 1/4 inches (108 mm), dimensions that ensure proper fitment in compatible GMC, Hino, and Isuzu truck engines. The filter includes an integral gasket (part number G401) to provide a reliable seal and prevent oil leaks during operation. With an 18 threads per inch specification and an 8-may thread type, this filter matches OEM threading standards for secure installation.

Applications and Problem Solving

This engine oil filter is intended for use in maintaining clean engine oil in GMC, Hino, and Isuzu trucks. It helps address common engine issues such as:

• Removal of dirt and metal particles from engine oil
• Prevention of premature engine wear due to contaminated oil
• Maintaining optimal oil flow and pressure
• Reducing the risk of engine damage caused by sludge buildup
• Supporting engine efficiency and longevity

Installation Notes and Tips

When installing the Baldwin B7124 oil filter, ensure the engine is cool and the vehicle is on a level surface. Verify that the integral gasket is properly seated to avoid leaks. Follow the vehicle manufacturer’s recommended torque specifications for the 8-may threaded connection. Dispose of the used filter according to local regulations.

Quality Assurance and Warranty

Baldwin filters are manufactured to meet industry standards for filtration and durability. The B7124 oil filter is designed to match or exceed OEM specifications for GMC, Hino, and Isuzu trucks. Please refer to Baldwin’s official documentation for warranty details and coverage information.
