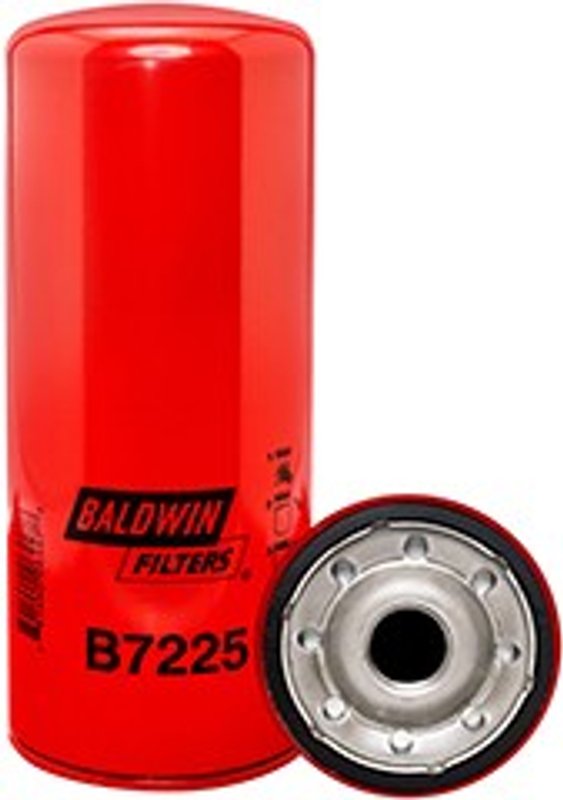

Baldwin B7225 Engine Oil Filter
OE Quality 60-Day Returns
Baldwin

Baldwin B7225 Engine Oil Filter

Brand Baldwin B7225
Fits Mack trucks
Height 10 7/16
Height (mm) 265.1
Integral Gasket [1] included
Notes Uses 2 filters per application.
Outside Diameter 1 4 1/4
Outside Diameter 1 (mm) 108
Per Inch 16
Related to {b76} (media difference)
Replaces "mack 485gb3232, 485gb3236"
Thread 1 1/8
Fits —

Engine oil filter. Designed for dependable filtration in heavy-duty engine applications.

Integral gasket included. Helps simplify installation with a ready-to-use sealing surface.

Threaded design. 1 1/8 thread size for secure, straightforward mounting.

$28.87Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $28.87
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Engine Oil Filter options

Baldwin B7225 Engine Oil Filter for Mack Trucks

The Baldwin B7225 is an engine oil filter for Mack Trucks applications that require a spin-on filter with a 1 1/8 thread and a 10 7/16-inch height. It is built with a 4 1/4-inch outside diameter and an integral gasket included for proper sealing in service.

Key Features

  • Part number B7225 for Mack Trucks engine oil filter applications
  • Height: 10 7/16 in. (265.1 mm)
  • Outside diameter: 4 1/4 in. (108 mm)
  • Thread size: 1 1/8
  • Integral gasket included
  • Uses 2 filters per application
  • Replaces Mack 485GB3232 and 485GB3236
  • Related to Baldwin B76 with a media difference

Detailed Description

Baldwin B7225 is an engine oil filter specified for Mack Trucks service where the listed dimensions and thread pattern match the original filter setup. The filter’s tall canister design, 16 threads per inch, and included gasket support a secure installation in heavy-duty engine oil filtration systems. If you are searching for a Baldwin B7225 oil filter for Mack Trucks, this part number is a direct reference for the correct replacement format.

This part cross-references Mack 485GB3232 and 485GB3236 for the same application. It is also related to Baldwin B76 with a media difference, which is useful when comparing filter construction within the same service family.

What It Helps Address

  • Oil filtration service intervals on Mack Trucks engines
  • Replacement of worn or restricted engine oil filters
  • Sealing issues caused by an aged or damaged filter gasket
  • Fitment concerns when matching thread, diameter, and height specifications
  • Maintenance needs for heavy-duty truck oil filtration systems

Installation Notes and Tips

Verify the thread size, height, and outside diameter against the removed filter before installation. Confirm that the gasket surface is clean and that the sealing area is free of debris before tightening. Because this application uses 2 filters per application, match the service procedure for the specific Mack Trucks engine configuration.

Quality Assurance

Baldwin is a recognized name in heavy-duty filtration, and the B7225 is built to match the listed service dimensions for Mack Trucks applications. Use the part number B7225 when confirming replacement fitment and service records.
