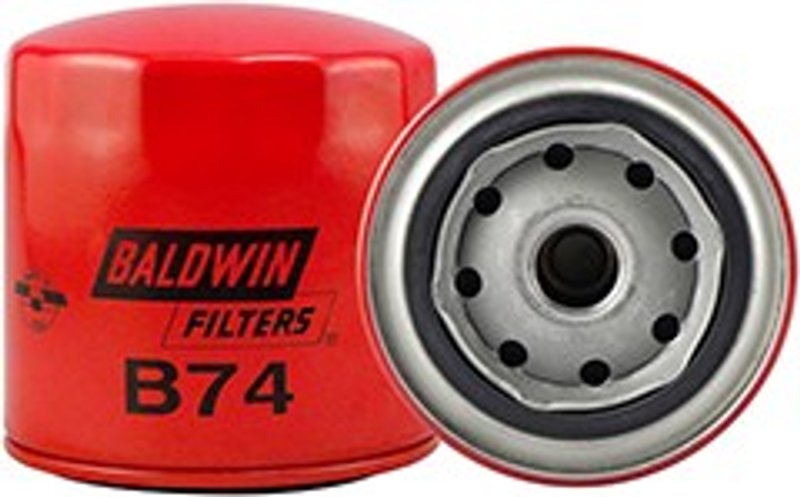

Baldwin B74 Engine Oil Filter

Overview of Baldwin B74 Engine Oil Filter

The Baldwin B74 engine oil filter is designed for reliable filtration in various heavy-duty and light-duty vehicles. Engineered to meet the demands of Land Rover models and select equipment from Caterpillar, Ford, and New Holland, this filter ensures consistent oil cleanliness and engine protection.

• Includes anti-drainback valve to prevent dry starts
• Equipped with a 20 psid by-pass valve for optimal oil flow
• Height: 3 31/32 inches (100.8 mm)
• Outside diameter: 3 3/4 inches (95.3 mm)
• Thread size: 4-mar with 16 threads per inch
• Integral gasket type: G381-A
• Compatible with Ford part number E8NN-6714-AA
• Can be used with OB40079 base

Technical Details and Compatibility

The Baldwin B74 oil filter features an integral gasket (G381-A) and a 4-mar threaded connection with 16 threads per inch, ensuring a secure fit and reliable sealing. Its anti-drainback valve helps maintain oil in the filter during engine shutdown, reducing wear during startup. The 20 psid by-pass valve allows oil to bypass the filter element if it becomes clogged, maintaining engine lubrication under all conditions.

This filter is compatible with Land Rover light-duty vehicles including the Defender 90, Defender 110, Discovery, and Range Rover models. It also fits equipment from Caterpillar, Ford, and New Holland, making it a versatile choice for various applications.

Applications and Problem Solving

• Prevents engine wear caused by contaminated oil
• Reduces risk of oil starvation during cold starts with anti-drainback valve
• Maintains oil flow even if filter element clogs via by-pass valve
• Ensures proper sealing with integral gasket to avoid leaks
• Compatible replacement for Ford E8NN-6714-AA part number

Installation Notes and Tips

• Verify compatibility with your vehicle model before installation
• Use the OB40079 base if applicable for proper mounting
• Apply a thin layer of clean engine oil to the gasket before installation
• Hand-tighten the filter and then follow manufacturer torque specifications
• Check for leaks after installation and engine start-up

Quality Assurance and Warranty

Baldwin filters are manufactured to meet industry standards for filtration efficiency and durability. The B74 engine oil filter undergoes rigorous quality control to ensure consistent performance. Warranty coverage details should be confirmed with the product documentation or distributor.
