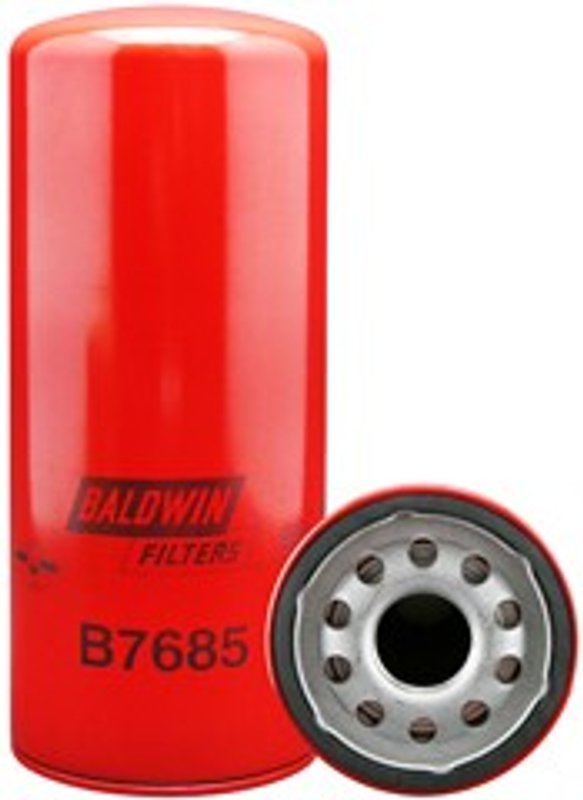

Baldwin B7685 Engine Oil Filter
OE Quality 60-Day Returns
Baldwin

Baldwin B7685 Engine Oil Filter

Brand Baldwin B7685
Fits "r.v.i., volvo buses, engines, equipment, trucks"
Height 10 1/16
Height (mm) 255.6
Integral Gasket [1] included
Outside Diameter 1 4 1/4
Outside Diameter 1 (mm) 108
Per Inch 16
Replaces "v.m.e. 119962280; volvo 477556, 477556-5"
Thread 1 3/8
Fits —

Engine oil filter. Keeps oil circulating through a clean, replaceable filter element.

Integral gasket included. Helps simplify installation with a ready-to-use seal.

Threaded fit. 1 3/8 thread size for secure, straightforward mounting.

$38.57Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $38.57
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Engine Oil Filter options

Baldwin B7685 Engine Oil Filter

The Baldwin B7685 is an engine oil filter for heavy-duty diesel applications, including R.V.I., Volvo buses, engines, equipment, and trucks. Built around the listed dimensions and thread specification, it supports proper oil filtration in applications that call for this filter style.

Key Features

  • Part number: B7685
  • Engine oil filter for R.V.I., Volvo buses, engines, equipment, and trucks
  • Height: 10 1/16 in. (255.6 mm)
  • Outside diameter: 4 1/4 in. (108 mm)
  • Thread size: 1 3/8
  • 16 per inch thread specification
  • Integral gasket included
  • Replaces V.M.E. 119962280 and Volvo 477556, 477556-5

Detailed Description

Baldwin B7685 is an engine oil filter specified for select heavy-duty R.V.I. and Volvo applications, including buses, engines, equipment, and trucks. The filter’s 10 1/16-inch height, 4 1/4-inch outside diameter, and 1 3/8 thread size are important reference points when matching the correct service part for Volvo truck and Volvo bus maintenance. If you are sourcing a Baldwin B7685 replacement for a Volvo engine oil filter application, these dimensions and cross-reference numbers help confirm the correct match.

This part cross-references V.M.E. 119962280 and Volvo 477556, 477556-5 for the same application.

What It Helps Address

  • Oil contamination from normal engine wear
  • Restricted oil flow caused by a loaded filter
  • Incorrect filter fitment on Volvo truck and Volvo bus service applications
  • Maintenance intervals that require a direct oil filter replacement
  • Seal leakage concerns when the correct gasketed filter is not used

Installation Notes and Tips

Verify the thread size, height, and outside diameter against the removed filter before installation. Confirm the engine or equipment application matches the listed R.V.I. and Volvo fitment references, and inspect the mounting surface for cleanliness before installing the new filter. Use the integral gasket included with the filter and follow the engine manufacturer’s service procedure for priming, tightening, and leak checks.

Quality Assurance

Baldwin is a recognized filtration brand in heavy-duty automotive and industrial service. The B7685 is built to the listed specifications and replacement references to support correct service selection for Volvo truck and Volvo bus oil filter applications.
