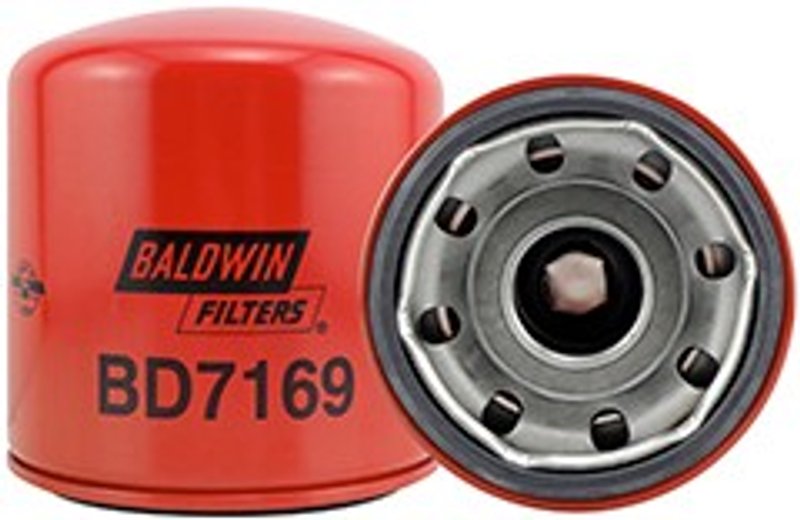

Baldwin BD7169 Engine Oil Filter

Overview of Baldwin BD7169 Engine Oil Filter

The Baldwin BD7169 engine oil filter is designed for use in GMC and Isuzu buses and trucks. Featuring a 19 psid by-pass valve and an integral gasket, this filter ensures reliable oil filtration and engine protection for heavy-duty vehicles.

• Contains a 19 psid by-pass valve for consistent oil flow
• Compatible with GMC and Isuzu buses and trucks
• Height: 4 15/16 inches (125.4 mm)
• Outside diameter: 4 21/32 inches (118.3 mm)
• Thread size: 1 1/2 inch
• Includes integral gasket for secure sealing
• Replaces GMC part 97148270 and Isuzu parts 2-90654-800-0, 8-97148-270-0

Detailed Product Description

The Baldwin BD7169 engine oil filter is engineered to meet the filtration requirements of GMC and Isuzu heavy-duty buses and trucks. Its 19 psid by-pass valve maintains oil flow under high pressure conditions, preventing engine damage due to oil starvation. The filter’s dimensions—4 15/16 inches in height and 4 21/32 inches in outside diameter—ensure proper fitment in specified vehicle models. The integral gasket included with the filter provides a reliable seal to prevent leaks and maintain system integrity. Threaded with a 1 1/2 inch connection, the BD7169 is compatible with OEM specifications, making it a direct replacement for GMC part number 97148270 and Isuzu part numbers 2-90654-800-0 and 8-97148-270-0.

Applications and Problem Solving

• Prevents engine wear by filtering contaminants from engine oil
• Maintains oil flow with a 19 psid by-pass valve under high pressure
• Reduces risk of oil leaks with integral gasket design
• Compatible with GMC and Isuzu buses and trucks requiring specified OEM replacements
• Helps maintain engine performance and longevity in heavy-duty vehicles

Installation Notes and Tips

Ensure the engine is cool before removing the old oil filter to avoid burns. Verify the thread size and dimensions match the vehicle’s specifications. Lubricate the integral gasket with clean engine oil before installation to ensure a proper seal. Tighten the filter according to manufacturer torque specifications to prevent leaks or damage.

Quality Assurance and Warranty

Baldwin engine oil filters are manufactured to meet industry standards for filtration efficiency and durability. The BD7169 is designed to provide consistent performance in demanding applications. Please refer to Baldwin’s official warranty documentation for specific coverage details.
