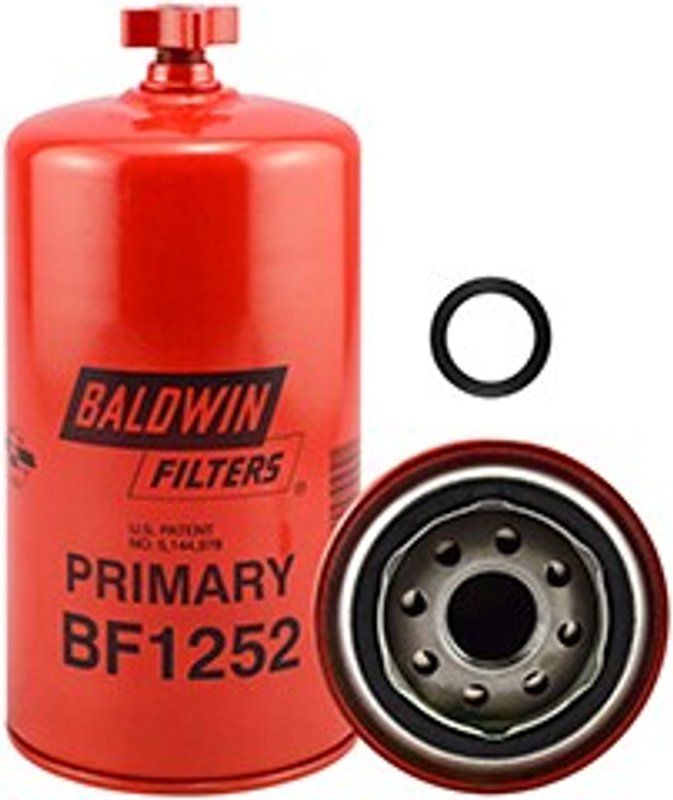

Baldwin BF1252 Fuel Water Separator Filter

Overview of Baldwin BF1252 Fuel Water Separator Filter

The Baldwin BF1252 fuel water separator filter is designed specifically for Blue Bird buses, providing reliable filtration to protect your fuel system. This filter helps maintain engine performance by effectively separating water from fuel, ensuring cleaner fuel delivery.

• Compatible with Blue Bird buses fuel systems
• Height: 7 13/32 inches (188.1 mm)
• Outside diameter: 3 11/16 inches (93.7 mm)
• Thread size: 1 inch
• Replaces Racor S3230 filter
• Includes furnished d-ring gasket for proper sealing
• Integral gasket type: G381-A
• Filter media rated at 14 per inch

Detailed Product Description

The Baldwin BF1252 fuel water separator filter is engineered to fit Blue Bird buses, ensuring compatibility and optimal performance. With a height of 7 13/32 inches and an outside diameter of 3 11/16 inches, this filter matches the dimensions required for proper installation. The 1-inch thread size allows for secure attachment within the fuel system. This filter replaces the Racor S3230, making it a direct substitute for maintenance or replacement needs.

Equipped with an integral gasket (G381-A) and a furnished d-ring gasket, the BF1252 ensures a tight seal to prevent leaks and contamination. The filter media density of 14 per inch provides effective filtration, separating water and particulates from fuel to protect the engine and fuel injectors.

Applications and Problem Solving

• Prevents water contamination in fuel systems of Blue Bird buses
• Reduces risk of engine damage caused by fuel impurities
• Helps maintain consistent fuel flow and engine performance
• Minimizes downtime due to fuel system maintenance
• Replaces Racor S3230 for seamless integration

Installation Notes and Tips

When installing the Baldwin BF1252, ensure the furnished d-ring gasket is properly installed on the post to achieve an effective seal. Failure to install the d-ring gasket correctly may result in leaks or reduced filtration efficiency. Verify thread compatibility and torque specifications according to Blue Bird bus manufacturer guidelines to avoid damage during installation.

Quality Assurance and Warranty

Baldwin filters are manufactured to meet industry standards for filtration and durability. The BF1252 undergoes rigorous quality control to ensure consistent performance in demanding applications such as Blue Bird buses. Please consult Baldwin's official documentation or warranty policy for specific coverage details.
