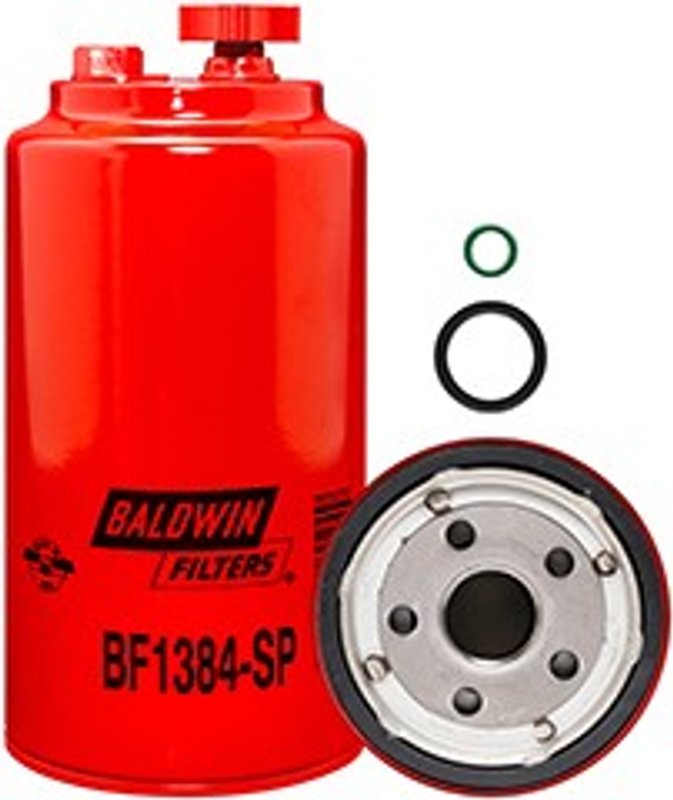

Baldwin BF1384-SP Fuel Water Separator Filter

Overview of Baldwin BF1384-SP Fuel Water Separator Filter

The Baldwin BF1384-SP fuel water separator filter is designed specifically for Mack trucks equipped with MP7 and MP8 engines. This filter helps maintain fuel system integrity by effectively separating water from fuel, ensuring optimal engine performance and longevity.

• Compatible with Mack trucks featuring MP7 and MP8 engines
• Contains a sensor port thread sized 1/2-20 for precise monitoring
• Includes one furnished integral gasket and one O-ring for proper sealing
• Height measures 7 13/16 inches (198.4 mm) with an outside diameter of 3 11/16 inches (93.7 mm)
• Replaces Mack part number 20539578
• Thread size: 1 inch with 14 threads per inch

Detailed Product Description

The Baldwin BF1384-SP fuel water separator filter is engineered to meet the demanding requirements of Mack trucks with MP7 and MP8 engines. Its integral gasket and O-ring ensure a secure seal to prevent leaks and contamination. The sensor port thread of 1/2-20 allows for easy installation of monitoring sensors, providing real-time data on fuel quality. With a height of 7 13/16 inches and an outside diameter of 3 11/16 inches, this filter fits precisely in the designated fuel system housing. It is designed to replace the Mack 20539578 filter, making it a direct and reliable replacement part.

Applications and Problem Solving

• Prevents water contamination in fuel systems of Mack MP7 and MP8 engines
• Reduces risk of engine damage caused by water in fuel
• Helps maintain fuel injector performance and longevity
• Minimizes downtime due to fuel system maintenance
• Supports consistent engine operation under varying fuel quality conditions

Installation Notes and Tips

When installing the Baldwin BF1384-SP, ensure the furnished D-ring is properly installed on the post to maintain an effective seal. The included integral gasket and O-ring must be positioned correctly to prevent leaks. The sensor port thread (1/2-20) should be used carefully to attach compatible sensors without cross-threading. Follow manufacturer torque specifications for secure installation.

Quality Assurance

Baldwin filters are manufactured to meet strict quality standards for durability and performance. The BF1384-SP is designed to provide reliable fuel water separation for Mack trucks with MP7 and MP8 engines. While specific warranty details are not provided, Baldwin products typically adhere to industry standards for automotive filtration components.
