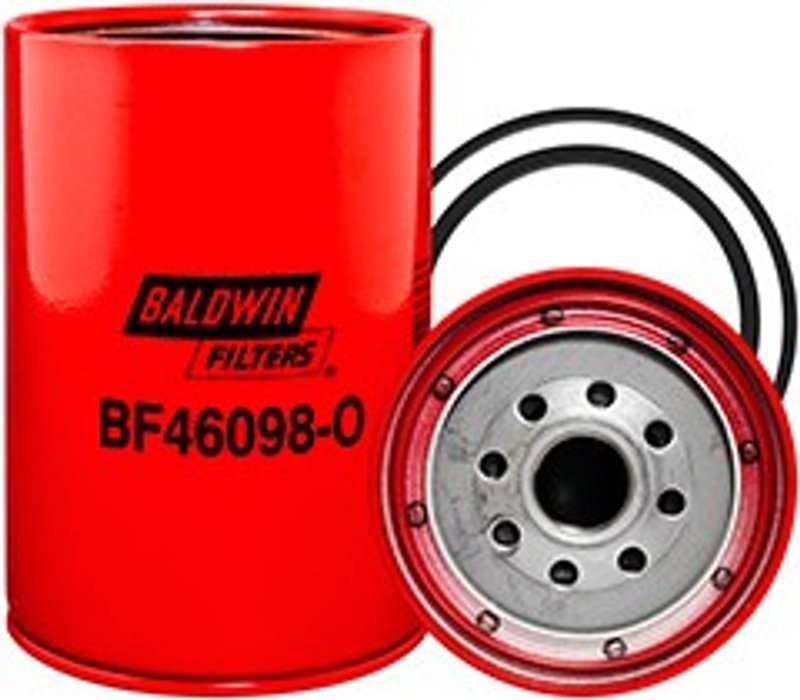

Baldwin BF46098-O Fuel Water Separator Filter

Overview of Baldwin BF46098-O Fuel Water Separator Filter

The Baldwin BF46098-O fuel water separator filter is designed for reliable fuel filtration in Freightliner Century Class, Cargo FC80, and Cascadia trucks. This filter helps maintain fuel system integrity by separating water from fuel, protecting engine components from contamination.

• Bowl thread size: 3 3/4-10 UNS B with integral post seal
• Includes two furnished gaskets for secure sealing
• One attached grommet for proper mounting
• Height: 6 9/32 inches (159.5 mm)
• Outside diameter: 4 1/4 inches (108 mm)
• Thread pitch: 14 per inch
• Replaces multiple OEM filters including Alliance ABP/N122-R50419, ACDelco TP1348, and Donaldson P551034

Detailed Product Description

The BF46098-O fuel water separator filter from Baldwin is engineered to fit specific Freightliner models such as the Century Class, Cargo FC80, and Cascadia trucks. Its 3 3/4-10 UNS B bowl thread with an integral post seal ensures a tight, leak-free connection. The filter’s dimensions—6 9/32 inches in height and 4 1/4 inches in outside diameter—are optimized for these applications. Furnished with two gaskets and one attached grommet, this filter supports proper installation and sealing. The thread pitch of 14 per inch matches OEM specifications, allowing for direct replacement without modification. This filter is related to the BF1373-SP sensor port version but is designed specifically for applications without sensor ports.

Applications and Problem Solving

• Prevents water contamination in fuel systems of Freightliner Century Class, Cargo FC80, and Cascadia trucks
• Protects fuel injectors and engine components from damage caused by water and debris
• Helps maintain fuel system efficiency and engine performance
• Reduces risk of fuel system corrosion and premature wear
• Compatible replacement for multiple OEM fuel water separator filters

Installation Notes and Tips

When installing the Baldwin BF46098-O, ensure the furnished gaskets are properly seated to prevent leaks. The attached grommet aids in secure mounting; verify that the filter threads match the fuel system’s specifications. Tighten the bowl thread to the recommended torque to maintain the integral post seal’s effectiveness. This filter is designed for direct replacement on Freightliner Century Class, Cargo FC80, and Cascadia trucks without additional modifications.

Quality Assurance and Warranty

Baldwin filters are manufactured to meet stringent quality standards for durability and performance. The BF46098-O undergoes rigorous testing to ensure compatibility and filtration efficiency. While specific warranty details are not provided here, Baldwin typically offers warranties covering defects in materials and workmanship. Consult Baldwin’s official documentation for complete warranty information.
