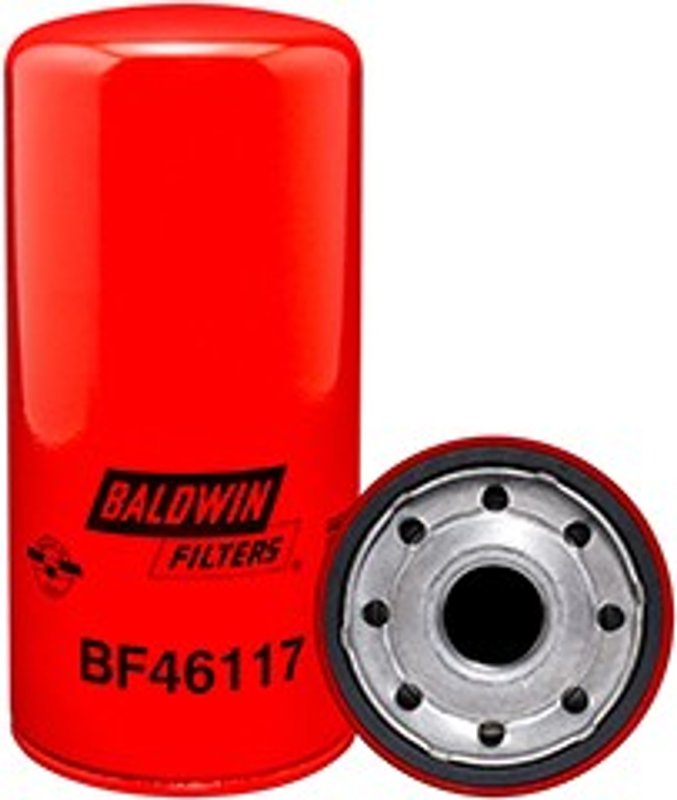

Baldwin BF46117 Fuel Filter
| Brand | Baldwin BF46117 |
|---|---|
| Attached Gasket | [1] included |
| Fits | "mack, volvo trucks" |
| Height | 8 7/8 |
| Height (mm) | 225.4 |
| Outside Diameter 1 | 4 11/32 |
| Outside Diameter 1 (mm) | 110.3 |
| Replaces | "mack 23856886; racor rs250rcr01; volvo 22094967, 22474709, 23846 |
| Thread | M32 x 1.5 |
| Fits | — |
Fuel filter. Engineered for clean fuel flow and dependable filtration.
Attached gasket. Includes a gasket for a secure, ready-to-install seal.
Threaded design. M32 x 1.5 threading for straightforward installation.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Baldwin BF46117 Fuel Filter for Mack and Volvo Trucks
The Baldwin BF46117 is a fuel filter built for Mack and Volvo Trucks applications that require a M32 x 1.5 thread and a 4 11/32-inch outside diameter. With an attached gasket included and a height of 8 7/8 inches, this filter supports clean fuel delivery in heavy-duty diesel systems.
Key Features
- Part number: BF46117
- Fuel filter for Mack and Volvo Trucks
- Thread size: M32 x 1.5
- Height: 8 7/8 in. (225.4 mm)
- Outside diameter: 4 11/32 in. (110.3 mm)
- Attached gasket included
- Replaces Mack 23856886, Racor RS250RCR01, and Volvo 22094967, 22474709, 23846895
Detailed Description
Built for fuel system service on Mack and Volvo Trucks, the Baldwin BF46117 fuel filter is specified with a M32 x 1.5 thread and a large-diameter canister profile for heavy-duty diesel filtration. The included gasket supports a proper seal at the mounting point, while the listed dimensions help confirm fit during replacement work. For buyers searching for a Mack fuel filter or Volvo Trucks fuel filter by part number, BF46117 is a direct reference point for service and cross-checking.
This part cross-references Racor RS250RCR01 and Volvo 22094967 for the same application.
Common Service Issues
- Restricted fuel flow from a loaded or contaminated filter
- Hard starting caused by fuel delivery restriction
- Engine hesitation tied to fuel contamination
- Service intervals requiring a direct replacement fuel filter
- Seal leakage at the filter mounting point
Installation Notes and Tips
Verify thread size, outside diameter, and overall height before installation. Confirm the mounting surface is clean and inspect the sealing area before fitting the new gasket. Match the replacement to the existing Mack or Volvo Trucks fuel filter configuration and follow the vehicle service procedure for priming and leak checks after installation.
Quality Assurance
Baldwin manufactures filtration products for heavy-duty and commercial vehicle service. BF46117 is identified with OE and aftermarket cross-reference numbers for application matching and parts lookup.
