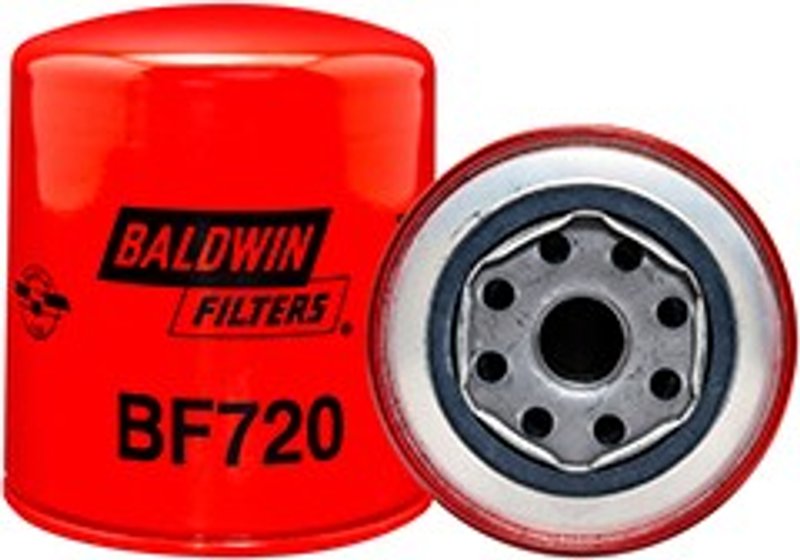

Baldwin BF720 Fuel Filter
| Brand | Baldwin BF720 |
|---|---|
| Contains | Integral post seal |
| Fits | "caterpillar, kobelco, mdi, mitsubishi equipment" |
| Height | 4 3/8 |
| Height (mm) | 111.1 |
| Integral Gasket | {g324-a} |
| Outside Diameter 1 | 3 11/16 |
| Outside Diameter 1 (mm) | 93.7 |
| Replaces | Caterpillar 96-6396; kobelco 2451u-1722a; mitsubishi me035829 |
| Thread | M20 x 1.5 |
| Fits | — |
Integral post seal. Helps maintain a secure seal in the fuel system.
Fuel filter. Removes contaminants to help protect fuel system components.
M20 x 1.5 thread. Provides a straightforward threaded connection.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Baldwin BF720 Fuel Filter for Caterpillar and Kobelco
The Baldwin BF720 fuel filter is built for diesel fuel systems that require clean, consistent filtration and a precise thread fit. It is a direct replacement for applications using Caterpillar, Kobelco, MDI, and Mitsubishi equipment, with an integral post seal and integral gasket for a secure seal at the filter head.
Key Features
- Part number BF720 fuel filter for diesel air and fuel delivery service
- Thread size: M20 x 1.5 for specified equipment applications
- Contains an integral post seal for sealing support
- Includes integral gasket G324-A
- Dimensions: 4 3/8 in. height and 3 11/16 in. outside diameter
- Replaces Caterpillar 96-6396, Kobelco 2451U-1722A, and Mitsubishi ME035829
Detailed Description
The Baldwin BF720 is a replacement fuel filter designed around the listed dimensions and sealing features needed in compatible Caterpillar, Kobelco, MDI, and Mitsubishi equipment. The 111.1 mm height, 93.7 mm outside diameter, and M20 x 1.5 thread help ensure the filter matches the specified mounting and service requirements. If you are searching for a Baldwin BF720 fuel filter for Caterpillar equipment or a BF720 replacement for Kobelco and Mitsubishi applications, this part provides the core fitment details needed for a direct-service selection.
This part cross-references Caterpillar 96-6396 and Mitsubishi ME035829 for the same application.
What It Helps Address
- Fuel contamination entering the injection system
- Restricted fuel flow from a loaded or worn filter
- Hard starting caused by dirty fuel filtration
- Rough engine operation related to fuel debris
- Seal leakage at the filter mounting point
Installation Notes and Tips
Verify the thread size, height, outside diameter, and seal style against the existing filter before installation. Confirm the equipment uses the listed M20 x 1.5 thread and integral post seal design, and inspect the gasket surface for damage or debris before tightening. For best results, prime and bleed the fuel system according to the equipment service procedure after replacement.
Quality Assurance
Baldwin filtration parts are specified by their physical dimensions, sealing design, and replacement references to support accurate service selection. The BF720 is identified by its listed OE cross-references and construction details for Caterpillar, Kobelco, MDI, and Mitsubishi equipment.
