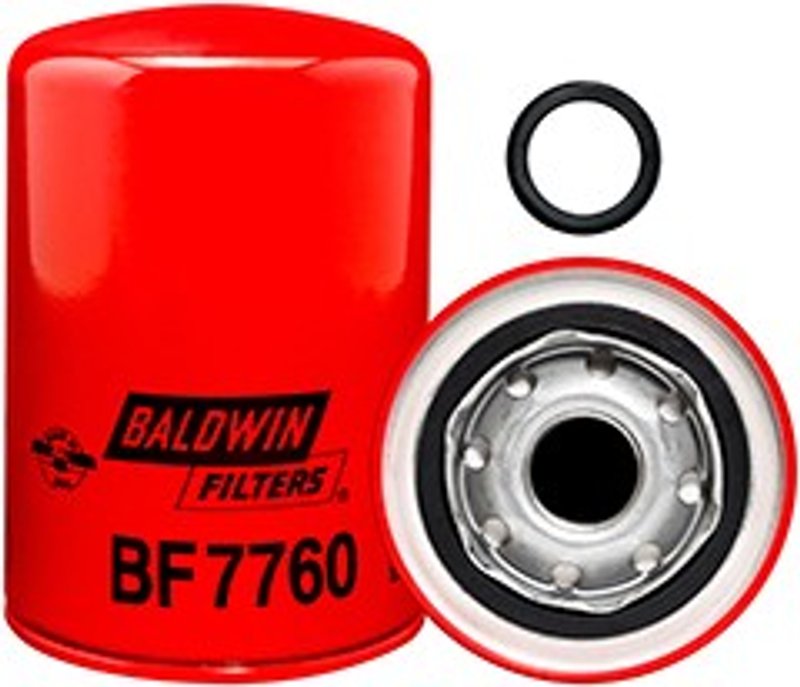

Baldwin BF7760 Fuel Water Separator Filter - Primary

Reliable Fuel Water Separator Filter for ISX Engines

The Baldwin BF7760 fuel water separator filter is designed specifically for International, Kenworth, and Peterbilt trucks equipped with ISX engines. This filter helps maintain fuel system integrity by effectively separating water and contaminants from diesel fuel.

• Compatible with International, Kenworth, and Peterbilt trucks with ISX engines
• Height: 5 11/16 inches (144.5 mm)
• Outside diameter: 3 11/16 inches (93.7 mm)
• Thread size: 1 inch with 14 threads per inch
• Includes integral gasket (G401) and one O-ring
• Replaces Cummins 4010476 and Fleetguard FF2203 filters

Product Details and Specifications

The Baldwin BF7760 fuel water separator filter features a height of 5 11/16 inches (144.5 mm) and an outside diameter of 3 11/16 inches (93.7 mm), making it a precise fit for the specified truck models. The 1-inch thread with 14 threads per inch ensures secure installation. This filter includes an integral gasket (G401) and one O-ring to provide a reliable seal and prevent leaks. It is designed to replace Cummins part number 4010476 and Fleetguard FF2203, offering a direct replacement option for maintenance and repair.

Applications and Problem Solving

• Prevents water contamination in fuel systems of International, Kenworth, and Peterbilt trucks with ISX engines
• Reduces risk of fuel injector damage caused by water and debris
• Helps maintain engine performance and fuel efficiency
• Protects fuel pumps from premature wear due to contaminants
• Supports compliance with manufacturer fuel system maintenance requirements

Installation Notes and Tips

When installing the Baldwin BF7760 filter, ensure the O-ring and integral gasket are properly seated to avoid leaks. Verify thread compatibility with the fuel system housing and tighten according to manufacturer torque specifications. Regular inspection and timely replacement of the fuel water separator filter will help maintain optimal engine performance.

Quality Assurance and Warranty

Baldwin filters are manufactured to meet industry standards for filtration and durability. The BF7760 is engineered to provide consistent fuel system protection. Please refer to Baldwin's official warranty documentation for specific coverage details.
