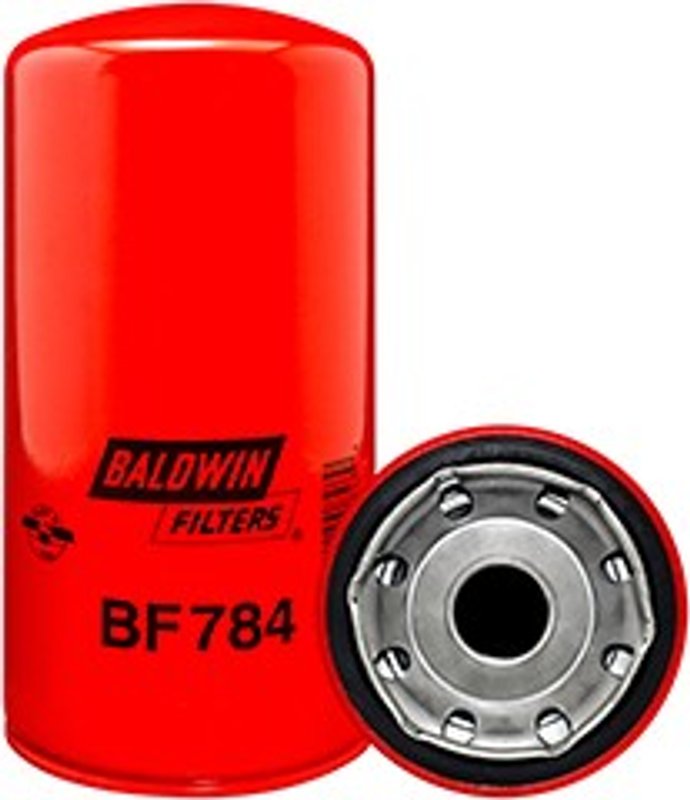

Baldwin BF784 Fuel Filter - Primary

Overview of Baldwin BF784 Fuel Filter

The Baldwin BF784 fuel filter is designed for reliable fuel filtration in heavy equipment such as American Hoist & Derrick, Demag, Dresser, Komatsu, and Terex machinery. Featuring an integral post seal and gasket, this fuel filter ensures a secure fit and effective contaminant removal to protect your engine.

• Integral post seal for leak-free operation
• Includes one integral gasket for proper sealing
• Height: 9 1/2 inches (241.3 mm)
• Outside diameter: 4 21/32 inches (118.3 mm)
• Thread size: 1 1/4 inch
• Compatible with Detroit Diesel part number 23518528
• Can be used with FB1309 base

Detailed Product Description

The Baldwin BF784 fuel filter is engineered to meet the filtration needs of various heavy-duty equipment brands including American Hoist & Derrick, Demag, Dresser, Komatsu, and Terex. Its integral post seal design helps prevent fuel leaks and maintains system integrity under demanding operating conditions. The included integral gasket ensures a tight seal between the filter and mounting base, reducing the risk of contamination ingress. With a height of 9 1/2 inches and an outside diameter of 4 21/32 inches, this filter fits applications requiring a 1 1/4 inch thread size. It is a direct replacement for Detroit Diesel part number 23518528 and can be installed on compatible bases such as the FB1309.

Applications and Problem Solving

• Prevents fuel system contamination in American Hoist & Derrick and Komatsu equipment
• Reduces engine wear caused by fuel impurities in Demag and Terex machinery
• Helps maintain fuel system pressure and flow consistency
• Protects fuel injectors and pumps from clogging and damage
• Compatible replacement for Detroit Diesel 23518528 to ensure proper fit and function

Installation Notes and Tips

When installing the Baldwin BF784 fuel filter, ensure the integral gasket is properly seated to avoid leaks. This filter can be used with the FB1309 base, so verify compatibility before installation. Tighten the 1 1/4 inch threaded connection securely but avoid over-tightening to prevent damage to the filter or mounting base. Regular inspection and timely replacement of the fuel filter will help maintain optimal engine performance.

Quality Assurance

Baldwin fuel filters are manufactured to meet industry standards for filtration efficiency and durability. The BF784 model is designed to provide consistent performance in heavy-duty applications. While specific warranty details are not provided, Baldwin products typically adhere to strict quality control processes to ensure reliability in demanding environments.
