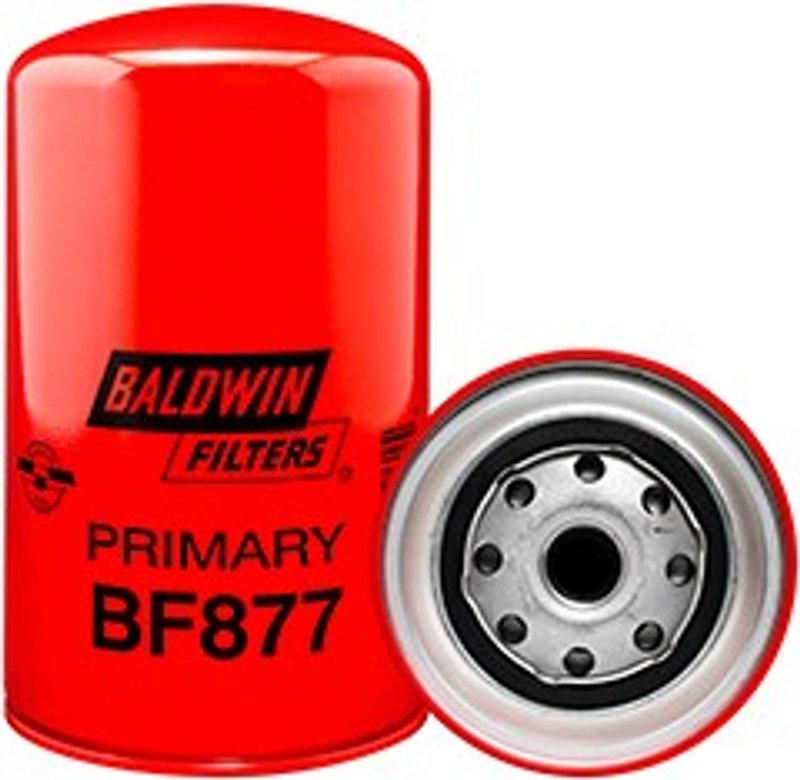

Baldwin BF877 Fuel Filter - Primary
| Brand | Baldwin BF877 |
|---|---|
| Position | Primary |
| Contains | Integral post seal |
| Fits | "mack, scania-vabis trucks; r.v.i. buses, trucks" |
| Height | 7 11/32 |
| Height (mm) | 186.5 |
| Integral Gasket | {g381-a} |
| Outside Diameter 1 | 4 1/4 |
| Outside Diameter 1 (mm) | 108 |
| Per Inch | 18 |
| Related to | {bf1219} (fuel/water separator version) |
| Replaces | Mack 483gb444 |
| Thread | 13/16 |
| Fits | — |
Fuel filter. Designed to remove contaminants from fuel for cleaner system performance.
Integral post seal. Includes a built-in seal for a more secure, leak-resistant fit.
Integral gasket. Supplied with gasket {G381-A} for easier installation and sealing.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Baldwin BF877 Fuel Filter for Heavy-Duty Applications
The Baldwin BF877 is a fuel filter built for heavy-duty diesel fuel systems that use a 13/16 thread and a 4 1/4-inch outside diameter. It is listed for Mack, Scania-Vabis trucks, and R.V.I. buses and trucks, making it a direct-fit service part for select commercial vehicle fuel filtration needs.
Key Features
- Fuel filter for air and fuel delivery service applications
- Integral post seal for a secure sealing interface
- Integral gasket: G381-A
- Height: 7 11/32 in. (186.5 mm)
- Outside diameter: 4 1/4 in. (108 mm)
- Thread size: 13/16
- 18 per inch specification
- Replaces Mack 483GB444
- Related to BF1219 fuel/water separator version
Application Details
Compatible with Mack and Scania-Vabis truck fuel systems, as well as R.V.I. buses and trucks, the BF877 supports service work where the original filter specification calls for this Baldwin configuration. Search terms such as Baldwin BF877 fuel filter for Mack truck applications, BF877 replacement for Scania-Vabis trucks, and R.V.I. bus fuel filter replacement all point to the same heavy-duty service part.
This part cross-references Mack 483GB444 for the same application.
What It Helps Address
- Restricted fuel flow caused by a loaded or clogged filter element
- Fuel contamination entering the injection system
- Hard starting related to poor fuel filtration
- Engine hesitation or rough operation from dirty fuel
- Service replacement for a worn or incorrect filter specification
Installation Notes
Verify thread size, outside diameter, and height against the original filter before installation. Confirm the sealing surfaces are clean and inspect the integral gasket and post seal during service. For best results, match the replacement to the vehicle’s fuel system specification on Mack, Scania-Vabis, or R.V.I. applications.
Quality Assurance
Baldwin filtration parts are built for commercial vehicle maintenance where correct fit and sealing are critical. The BF877 is specified with defined dimensions and sealing features to support consistent fuel filter service on heavy-duty diesel applications.
