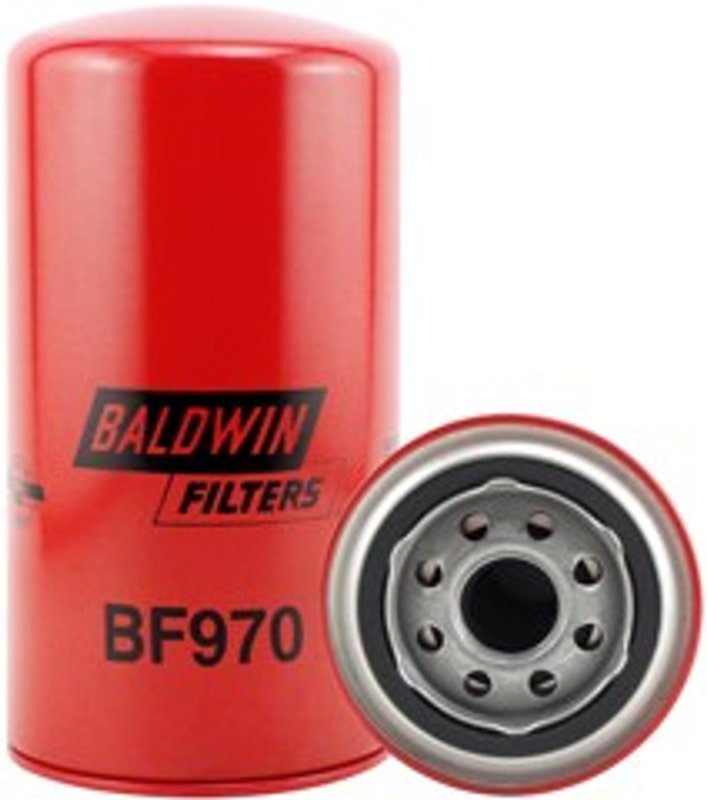

Baldwin BF970 Fuel Filter - Primary

Brand Baldwin BF970
Position Primary
Contains Integral post seal
Fits "caterpillar, international, link-belt, new holland equipment"
Height 7 1/8
Height (mm) 181
Integral Gasket {g381-a}
Notes Do not use on cummins engines.;can be used with {fb46185} base.
Outside Diameter 1 3 11/16
Outside Diameter 1 (mm) 93.7
Per Inch 14
Related to {bf1214} (fuel/water separator version)
Replaces Caterpillar 1p2299
Thread 1
Fits —

Fuel filter. Designed for dependable filtration in air and fuel delivery systems.

Integral post seal. Built with an integral gasket for a secure, leak-resistant seal.

Threaded design. 1-inch thread supports straightforward installation.

$21.26Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $21.26
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.

Baldwin BF970 Fuel Filter for Heavy-Duty Equipment

The Baldwin BF970 fuel filter is built for heavy-duty fuel delivery systems that use a 1-inch threaded mount and a tall canister-style design. It is a direct replacement for Caterpillar 1P2299 and is listed for Caterpillar, International, Link-Belt, and New Holland equipment.

Key Features

  • Part number: BF970
  • Fuel filter for air and fuel delivery systems
  • Thread size: 1 inch
  • Height: 7 1/8 in. (181 mm)
  • Outside diameter: 3 11/16 in. (93.7 mm)
  • 14 threads per inch
  • Includes integral post seal
  • Integral gasket: G381-A
  • Replaces Caterpillar 1P2299
  • Can be used with FB46185 base

Detailed Description

Baldwin BF970 is a fuel filter engineered for equipment applications that require a 1-inch threaded filter with an integral post seal and matching gasket interface. The filter’s dimensions and thread specification make it a practical service replacement for Caterpillar, International, Link-Belt, and New Holland equipment using this style of fuel filtration. The BF970 part number is also referenced as a replacement for Caterpillar 1P2299, and BF970 is related to the BF1214 fuel/water separator version.

This filter is not for Cummins engines. For service planning, confirm the base and sealing arrangement before installation, especially when working with Caterpillar equipment or other heavy-duty diesel platforms that use the BF970 configuration.

What It Helps Address

  • Restricted fuel flow from a clogged fuel filter
  • Fuel contamination entering the injection system
  • Hard starting caused by poor fuel filtration
  • Engine performance issues tied to dirty fuel supply
  • Service replacement needs for Caterpillar 1P2299 applications

Installation Notes and Tips

Verify thread size, height, outside diameter, and gasket style before installation. The BF970 can be used with the FB46185 base, and the integral post seal should be seated correctly to maintain a proper seal. Do not use this filter on Cummins engines. For Caterpillar, International, Link-Belt, and New Holland equipment, match the existing filter and base configuration before service.

Quality Assurance

Baldwin is a recognized name in heavy-duty filtration, and the BF970 is built to meet the dimensional and sealing requirements listed for this application. This part cross-references Caterpillar 1P2299 for the same application.
