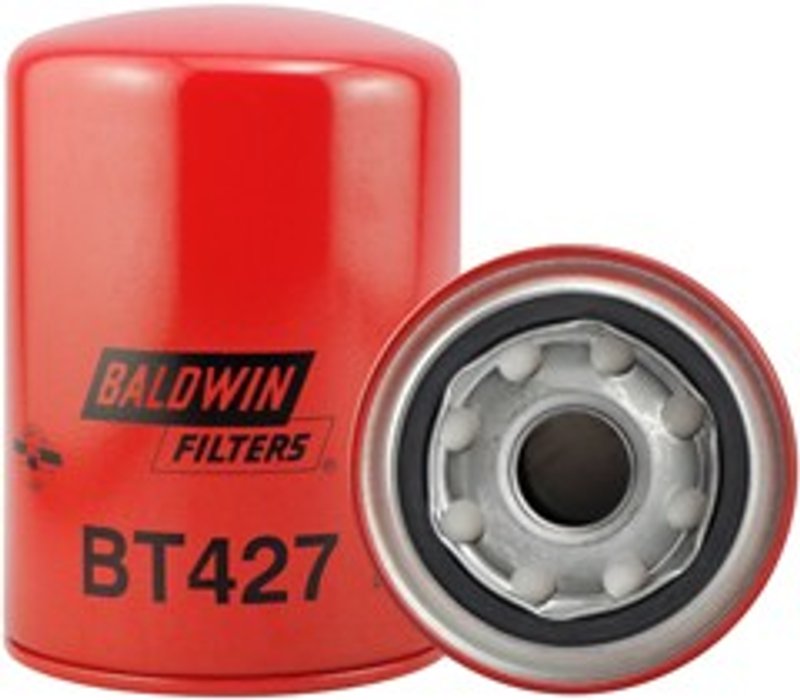

Baldwin BT427 Engine Oil Filter

Brand Baldwin BT427
Fits "Agco, Bandit, Bomag, Case, Dresser, Dynapac, Grove, Komatsu, MacDon, Vermeer Equipment; Cummins Engines"
Height 5 3/8
Height (mm) 136.5
Integral Gasket [1] Included
Outside Diameter 1 3 11/16
Outside Diameter 1 (mm) 93.7
Per Inch 16
Related to {BT339} (Long Version)
Replaces Cummins 3903224
Thread 1
Fits GMC · 1 vehicle

Engine oil filter. Keeps oil clean for dependable engine protection.

Integral gasket included. Helps simplify installation with a ready-to-use seal.

Threaded design. Provides a secure, straightforward filter connection.

$20.74Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing β€” free returns if it doesn't
Step 2 — Quantity
Order total $20.74
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.

Baldwin BT427 Engine Oil Filter

The Baldwin BT427 is an engine oil filter for Cummins engines and select equipment from Agco, Bandit, Bomag, Case, Dresser, Dynapac, Grove, Komatsu, MacDon, and Vermeer. It is built with a 1-inch thread, 3 11/16-inch outside diameter, and 5 3/8-inch height for service applications that call for Baldwin BT427 or Cummins 3903224.

Key Features

  • Engine oil filter for diesel engine lubrication service
  • 1-inch thread for the specified application
  • 5 3/8-inch overall height and 3 11/16-inch outside diameter
  • Integral gasket included
  • Replaces Cummins 3903224
  • Related to Baldwin BT339 long version

Application Details

Use the Baldwin BT427 when servicing Cummins-powered equipment and the listed machine brands that specify this filter configuration. For vehicle fitment, it also fits 1990 GMC P3500, N/A, with OE number PF1071. If you are searching for a Baldwin BT427 oil filter, a Cummins 3903224 replacement, or a 1990 GMC P3500 oil filter, this part matches the listed thread and dimensional requirements.

What It Helps Address

  • Routine engine oil filtration service
  • Replacement for a worn or clogged oil filter
  • Service needs tied to Cummins 3903224 cross-reference applications
  • Oil filter replacement on 1990 GMC P3500, N/A
  • Maintenance for equipment using the specified 1-inch thread filter

Installation Notes and Tips

Confirm the thread size, gasket seal, height, and outside diameter before installation. Replace the filter during scheduled oil service, lubricate the gasket before tightening, and verify the filter seats correctly against the mounting surface. For 1990 GMC P3500 applications, match the OE number PF1071 and the listed 1-16 thread specification before installation.

Quality Assurance

Baldwin filters are built for engine service applications where correct fit and filtration specifications matter. This part cross-references Cummins 3903224 for the same application.

This part fits 1 vehicle
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelLitersCylindersFuel TypePositionNotes
1990GMCP35003.9LL4DIESELN/A1-16 Thread; OE Number : PF1071
