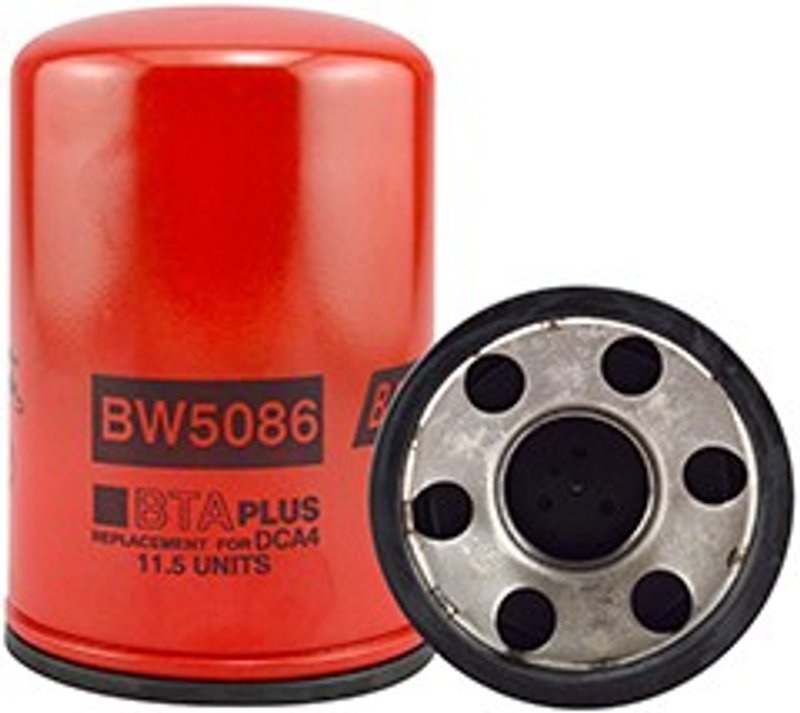

Baldwin BW5086 Cooling System Filter

Overview of Baldwin BW5086 Cooling System Filter

The Baldwin BW5086 is a cooling system filter designed specifically for Cummins engines. Engineered to maintain optimal cooling performance, this filter helps protect your engine by efficiently filtering contaminants from the cooling system.

• Compatible with Cummins engines requiring a cooling system filter
• Height: 5 13/32 inches (137.3 mm)
• Outside diameter: 3 3/4 inches (95.3 mm)
• Thread size: M36 x 2.0
• Includes integral gasket for secure sealing
• Replaces Cummins part number 3680433 and Fleetguard WF2126
• Contains 11 1/2 units BTA Plus filtration media

Technical Details and Specifications

The BW5086 cooling system filter features a height of 5 13/32 inches (137.3 mm) and an outside diameter of 3 3/4 inches (95.3 mm), making it a precise fit for compatible Cummins engines. The M36 x 2.0 thread ensures proper installation and secure attachment. This filter contains 11 1/2 units of BTA Plus filtration media, which is designed to effectively capture contaminants and maintain coolant cleanliness. An integral gasket is included to provide a reliable seal, preventing leaks and ensuring system integrity.

Compatible Applications and Use Cases

This Baldwin BW5086 filter is compatible with various Cummins engine models that require a cooling system filter with these specifications. It is a direct replacement for Cummins part number 3680433 and Fleetguard WF2126, making it suitable for maintenance and repair tasks involving these engines.

• Helps prevent coolant contamination and buildup
• Reduces risk of overheating due to clogged cooling passages
• Protects engine components from corrosion and wear
• Maintains efficient heat transfer within the cooling system
• Supports engine longevity and reliable operation

Installation Notes and Tips

When installing the Baldwin BW5086 cooling system filter, ensure the engine is cool and the system is depressurized. Verify the thread size (M36 x 2.0) matches the engine’s filter mount. Replace the integral gasket if damaged or worn to maintain a proper seal. Tighten the filter according to manufacturer torque specifications to avoid leaks or damage.

Quality Assurance and Warranty

Baldwin filters are manufactured to meet industry standards for filtration and durability. The BW5086 cooling system filter undergoes rigorous quality control to ensure consistent performance. Please refer to Baldwin’s official warranty documentation for specific coverage details related to this part.
