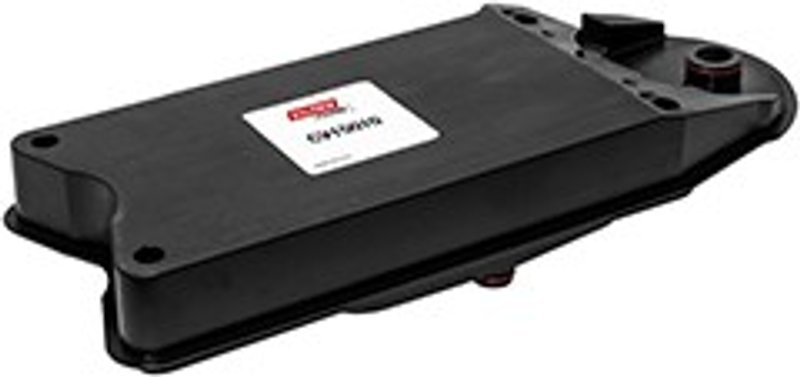

Baldwin CV15010 Engine Crankcase Breather Element

Baldwin CV15010 Crankcase Breather Element

The Baldwin CV15010 is an engine crankcase breather element built for heavy-duty and light-duty diesel applications that require clean crankcase ventilation. It is a direct replacement for select Ram 2500 and Ram 3500 trucks, including 2007-2010 Dodge Ram 2500 and Ram 3500 models and 2011-2022 Ram 2500 and Ram 3500 applications.

• Engine crankcase breather element for emission control service
• Measures 2 31/32 in. high, 16 3/8 in. long, and 6 7/8 in. wide
• 75.4 mm height, 415.5 mm length, and 174.8 mm width
• Three attached O-rings for sealing at the housing interface
• Cross-references Fleetguard CV52001 and Cummins 4936636
• Replaces Chrysler 68002433AA, 68002433AB, and 68002433AC applications

Fitment and Application Details

Compatible with a wide range of commercial vehicles and trucks, the Baldwin CV15010 is listed for Blue Bird, IC Corporation, New Flyer, Solaris, Thomas Buses, Autocar, Capacity of Texas, Ford, Freightliner, International, Kenworth, Mack Ottawa, Peterbilt, Rainier, RAM, Sterling Medium/Heavy-Duty Trucks, and RAM Light-Duty Trucks. For Ram pickup owners, it fits 2007-2010 Dodge Ram 2500, 2007-2010 Dodge Ram 3500, 2011-2018 Ram 2500, 2011-2018 Ram 3500, 2019-2022 Ram 2500, and 2019-2022 Ram 3500.

What This Part Helps Address

• Crankcase ventilation service intervals that call for breather element replacement
• Oil vapor separation maintenance in diesel engine crankcase systems
• Sealing issues at the breather housing caused by worn O-rings
• OE-number replacement needs for Ram 2500 and Ram 3500 service work
• Fleet maintenance for trucks using the listed Baldwin CV15010 application

Installation Notes

Verify housing dimensions and OE number before installation, especially on 2007-2022 Ram 2500 and Ram 3500 trucks. Confirm the breather element seats correctly and that the attached O-rings align with the housing surfaces before reassembly. Use the vehicle service procedure for the specific engine and emission-control layout.

Quality Assurance

Baldwin filters are built for demanding commercial and diesel service environments. The CV15010 is an OE-style replacement for the listed applications and cross-references common part numbers used in crankcase breather service, including Baldwin CV15010 for Ram truck maintenance and fleet repair.
